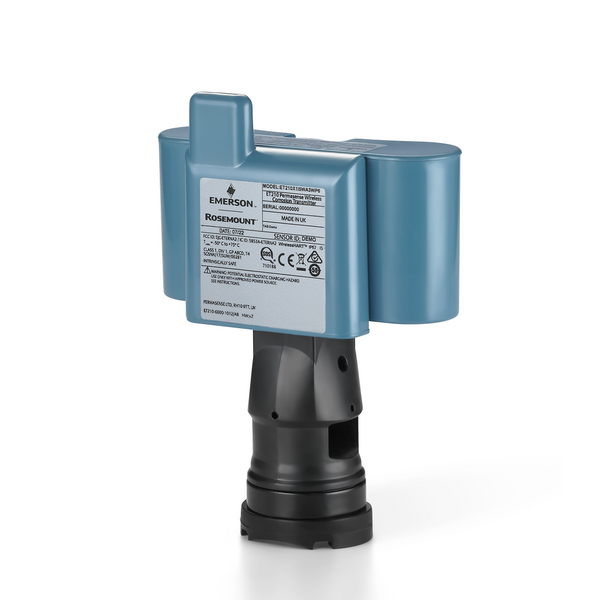

Get ongoing visibility of corrosion and erosion trends in real-time with unique ultrasonic sensors that continuously measure pipe thickness. The ET210 Sensor system is non-intrusive and battery-powered, allowing for quick and straightforward magnetic installation. The reliable, accurate wall thickness data delivered via a WirelessHART® network from the ET210 system to the accompanying software can help you make better decisions regarding pipe maintenance and replacement.
Temperature Range: from -40 °C (-40 °F) up to 120 °C (250 °F)
Communication Protocol: WirelessHART
Battery Life: 9 years (BP20E power module)
Certifications/Approvals: Class 1 Div 1 or Zone 0 hazardous location, see full specs for complete list of certifications
Measurement Range: Minimum wall thickness: 4mm (0.16")Maximum wall thickness: Up to 100mm (4")
Performance: Metal loss detection capability better than 10 microns (0.5 mil) in real field conditions
Measurement Frequency: Default - every 12 hours; User configurable down to every hour
