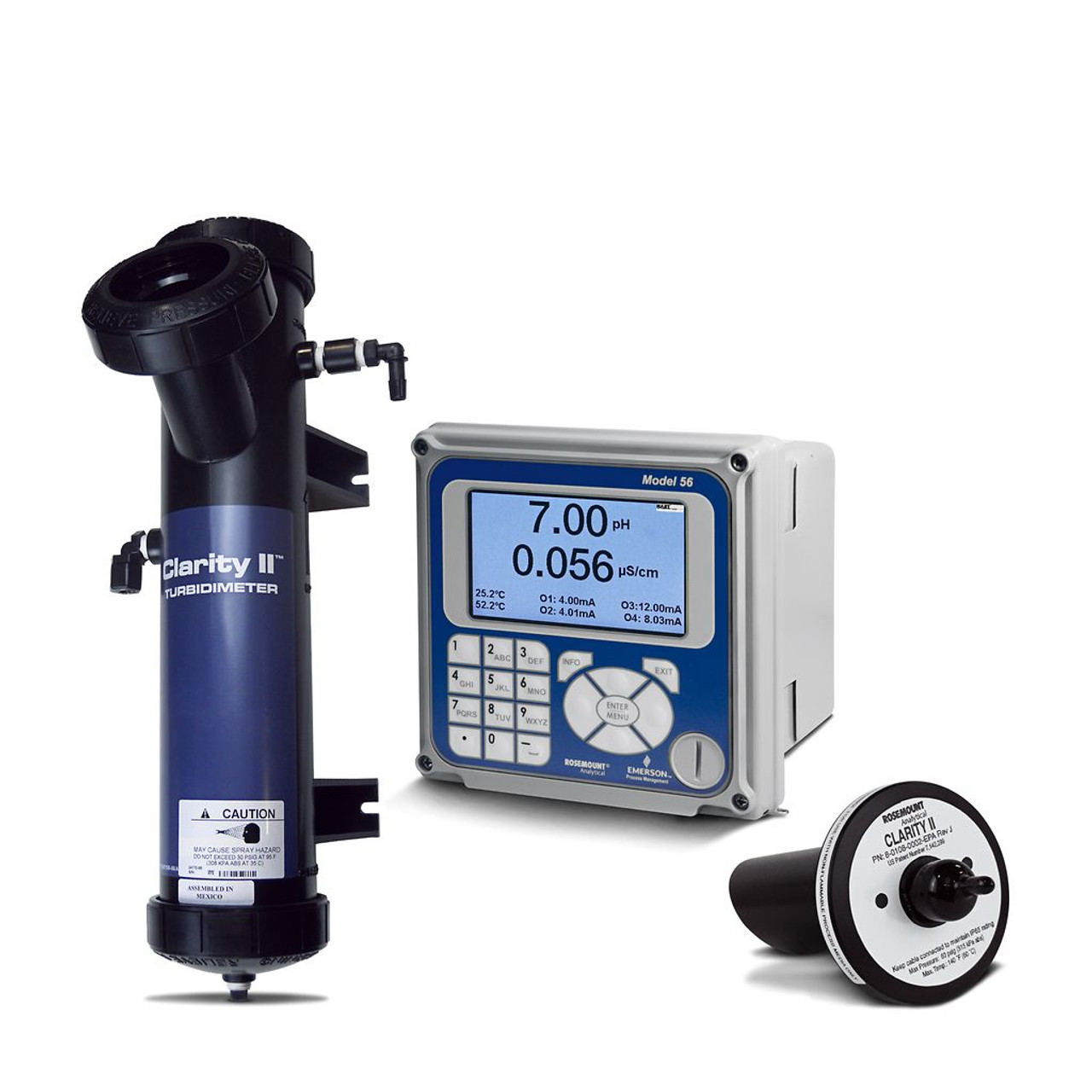

Rosemount™ T56 Clarity™ II Turbidimeter

The Rosemount T56 Clarity™ II Turbidimeter measures turbidity in water. Low stray light, high stability, efficient bubble rejection, and a display resolution of 0.001 NTU make this turbidimeter ideal for monitoring the turbidity of drinking water. You can also use the turbidimeter in other applications like monitoring wastewater discharges, condensate returns and clarifiers. Accuracy: ±0.05 mA @25°C Certifications/Approvals: CSA Class I, Division 2, Groups A, B, C, & DClass Il, Division 2, Groups E, F, & GClass Ill T4A Tamb= 50°CFMClass I, Division 2, Groups A, B, C, & DClass Il & lll, Division 2, Groups E, F, & GT4 Tamp = -10 deg C to 60 deg C Weight: Turbidity Sensor: 1 lb/2 lb (0.5 kg/1.0 kg)Transmitter: 2 lb/3 lb (1.0 kg/1.5 kg)Debubbler: 3 lb/4 lb (1.5 kg/2.0 kg)(rounded to the nearest lb or 0.5 kg)
