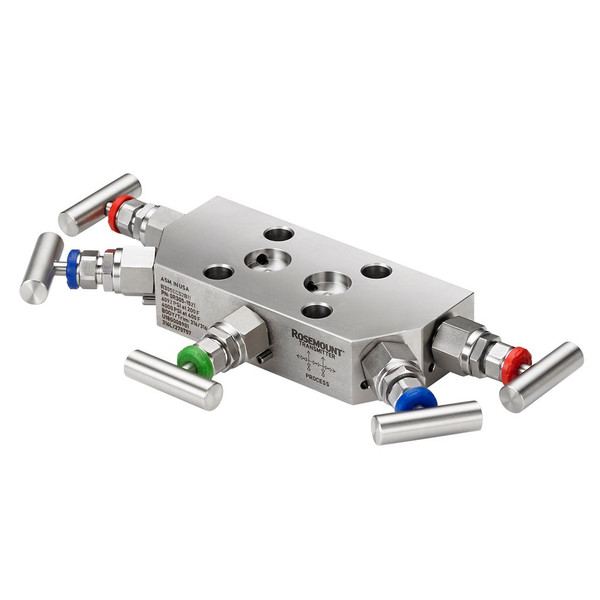

The Rosemount R305 Integral Manifold assembles directly to the patented Rosemount Coplanar™ transmitter, eliminating the need for a flange. The Pressure-Lock™ Valve, exclusively featured on the Rosemount R305 and R306 manifolds, offers simplified operation, enhanced reliability and increased operator safety. This lightweight premium manifold is available in 2-, 3- and 5-valve configurations which allows for instrument isolation and controlled venting to ensure measurement integrity.
Max. Operating Pressure: 6250 psi (431 bar)
Max. Operating Temperature: 750°F (399°C)
Manifold Material: 316 SST/316L SST
Packing Material: PTFE, Graphite-based
Process Connection: 1/2" -14 NPT femaleOrientation: Parallel with transmitter, 90° to transmitter
Certifications/Approvals: Cleaning for special services, sour gas (meets NACE MR 0175/ISO 15156, MR0103), see full specs for complete list of certifications
Warranty: Up to 5-year limited warranty
