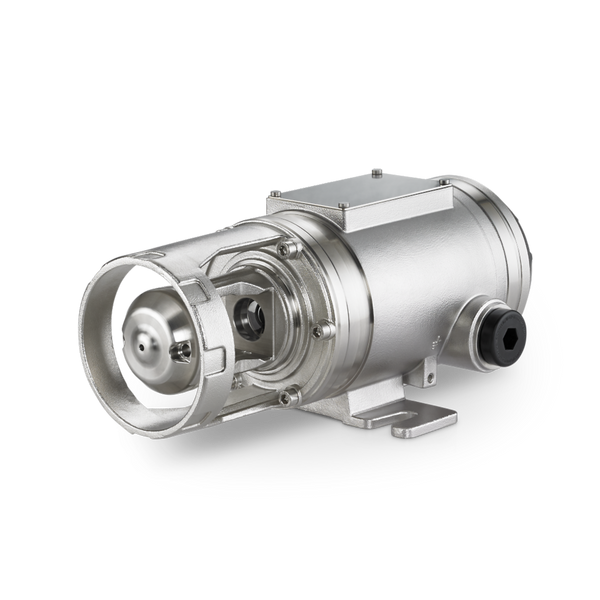

The Rosemount 625IR Fixed Gas Detector provides ultra-fast response times to detect hydrocarbon gases before they can create dangerous situations. Using optical absorption detection technology, the gas detector transmits infrared light through a sapphire lens and reflects light back again to determine gas concentration. Available with a range of options and accessories to improve accuracy inside ducts, provide greater installation flexibility, protect from environmental impacts and more.
Measurement Type: Hydrocarbon gases: 0-100% LEL
Sensor Type: Optical absorption infrared sensor
Output: Current source or sink 4-20 mA HART®digital communication
Enclosure Rating: IP66/67 and NEMA®4X
Temperature Range: Storage: -76 to +185 °F (-60 to +85 °C)Operating: -40 to +167 °F (-40 to +75 °C), standard
Accuracy: ±2 percent full scale (FS); The accuracy is specified for room temperature, +77 °F (+25 °C).
Power Consumption: < 3 W average, standard configuration
Weight: 6.6 lb (3 kg)
Warranty: Five (5) year limited warranty
Certifications/Approvals: SIL2 rated in accordance with IEC61508, SIL3 rated when used in 1oo2 configurationNorth American - Class 1, Division 1, Groups B, C and DATEX/IECEx - Ex db ib IIC T5 Gb
