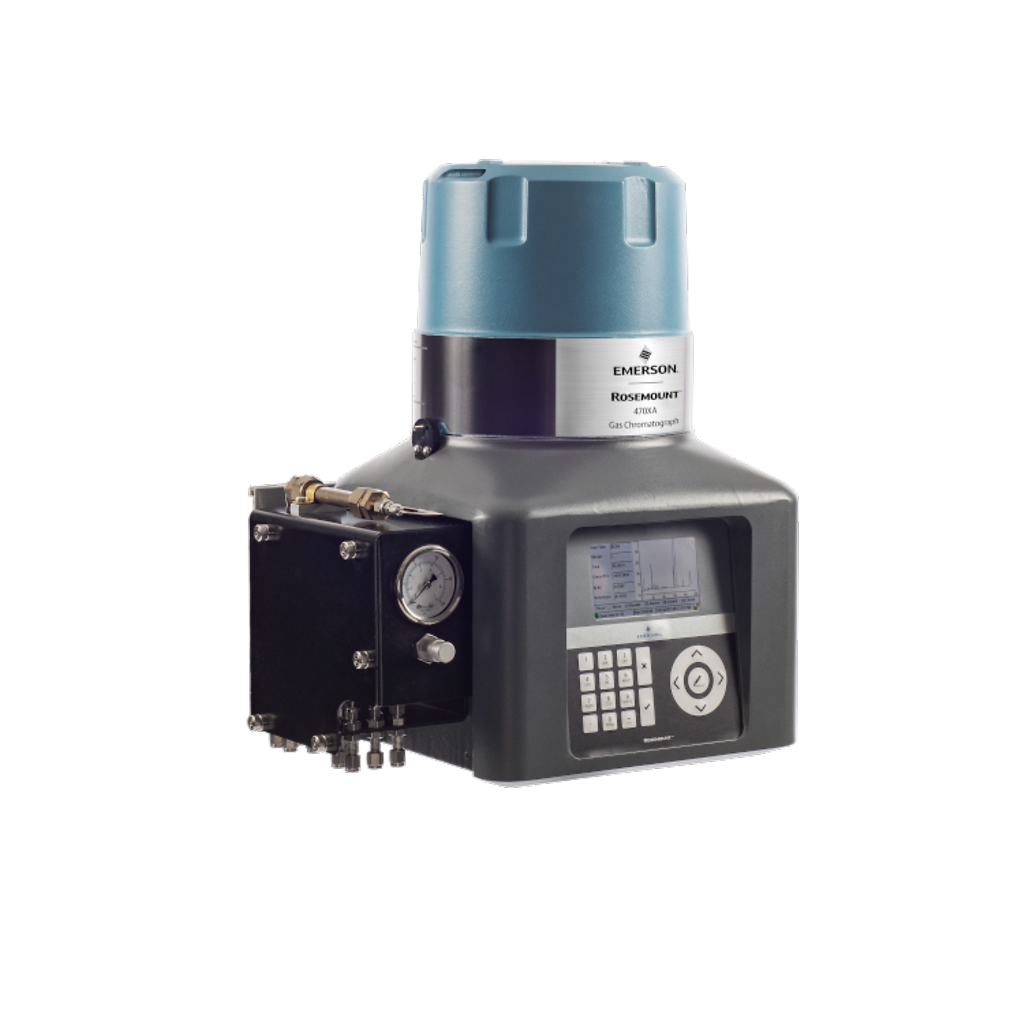

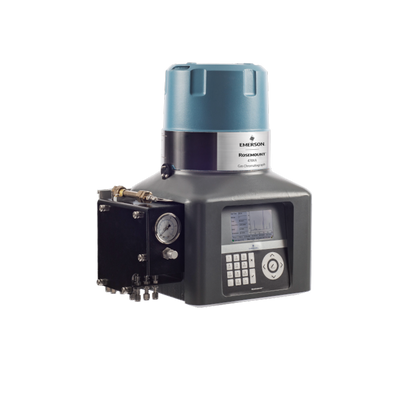

The Rosemount 470XA Gas Chromatograph is a compact, economical and reliable solution designed to simplify natural gas analysis in fiscal and custody transfer applications. It provides accurate C6+ BTU/CV measurement that is fully traceable to international standards and doesn’t require a shelter for most environments, lowering total cost of ownership. With an oven design based on the industry-proven Rosemount 770XA Gas Chromatograph, it offers flexible gas path configurations suitable for applications in renewable natural gas/biomethane and hydrogen markets.
Power Supply: 24 VDC (21–30 VDC)55 Watts (Startup)< 25 Watts (Steady State)
Certifications/Approvals: CSA: Class I, Zone 1, AEx/AEx d IIB + H2, T6, IP65Class I, Division 1, Groups B, C, D, T6, Enclosure Type 4XATEX/IECEx: Ex d IIB + H2 T6, GbTa = -20 °C to 60 °C
Repeatability: ±0.0125% calorific value or ±0.125 BTU/scf per 1,000 BTU/scf in controlled environment
Qualification Standard: International Organization for Standardization (ISO) 6976, American Gas Association(AGA) 8, Gas Processors Association (GPA) 2172 (using the GPA 2145 physical properties table)
Mounting: Pole (4"), Wall, Bench, Floor Stand
Dimensions: 460 mm H x 356 mm W x 280 mm D (18" H x 14" W x 11" D)
Weight: 22 kg (50 lbs.)
Warranty: 2 year limited warranty; lifetime warranty on XA-series analytical valves
Software Compatibility: Rosemount MON2020
