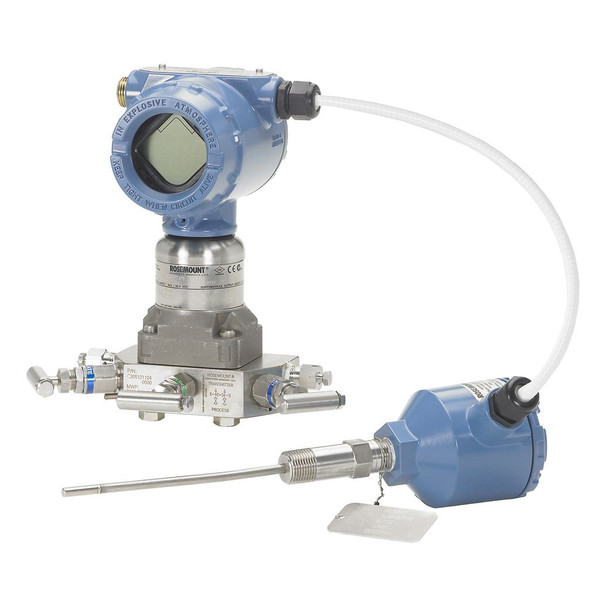

The Rosemount 3051S MultiVariable Transmitter is a best-in-class solution customized to obtain measurement combinations of differential pressure, static pressure and process temperature. This multivariable transmitter is a cost-effective device that reduces pipe penetrations, impulse piping and connection systems. This device is also engineered with built-in flow calculations for fully compensated mass flow measurements.
Warranty: Up to 15-year limited warranty
Rangedown: Up to 200:1
Communication Protocol: 4-20 mA HART™,WirelessHART®, FOUNDATION™ Fieldbus
Measurement Range: Up to 2000 psi (138 bar) differential, Up to 6092 psi (420 bar) static
Process Wetted Material: 316L SST, Alloy C-276, Tantalum, Gold-plated 316L SST
Diagnostics: Basic Diagnostics
Certifications/Approvals: NSF, NACE™, hazardous location, see full specs for complete list of certifications
