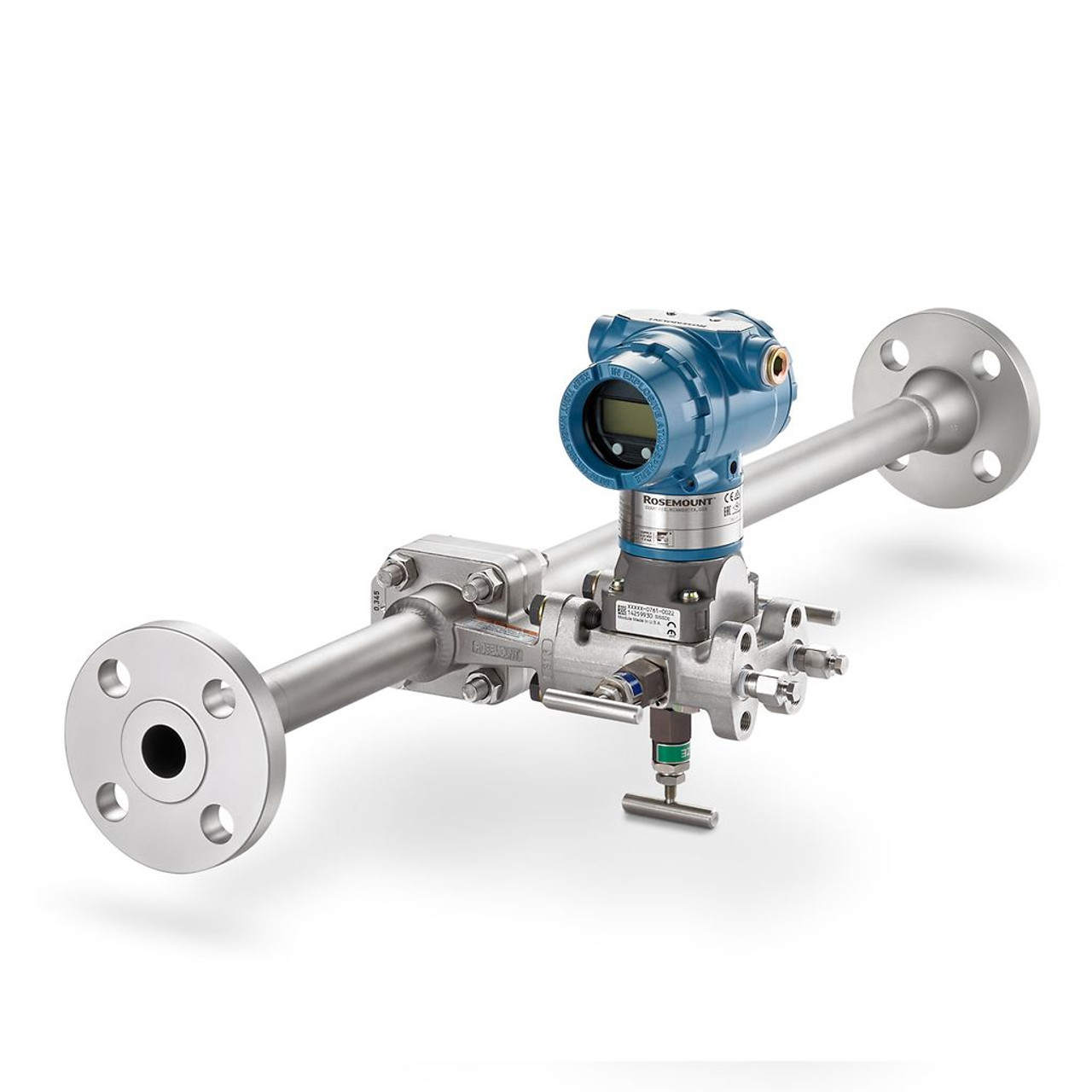

Designed with an integral orifice primary element for easy installation, the Rosemount 3051CFP Integral Orifice Flow Meter is an industry-leading flow measurement solution. This flow meter utilizes a self-centering integral orifice plate that is provided in a meter run and engineered to facilitate highly accurate flow measurement in small line sizes (0.5 - 1.5 in. or 15 - 40 mm). Available with Graphical, back-lit display, Bluetooth® connectivity, Flow specific configuration and enhanced software capabilities designed to access the data you need quickly. This device is offered with multiple communication protocols, includingWirelessHART®.
Warranty: Up to 5-year limited warranty
Rangedown: Up to 150:1 (8:1 flow turndown)
Measurement Range: Up to 1000 inH2O (2,48 bar) differential
Communication Protocol: 4-20 MA HART®,WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS®PA, 1-5 V Low Power HART®
Line Size: 0.5 to 1.5 in. (15 to 40 mm)
Process Wetted Material: Body: 316L SSTOrifice Plate: 316L SST, Alloy C-276, Alloy 400
Diagnostics: Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics
Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®
Wireless Update Rate: 1 sec. to 60 min., user selectable
Power Module Life: Up to 10-year life, field replaceable (order separately)
Wireless Range: Internal antenna (225 m)
