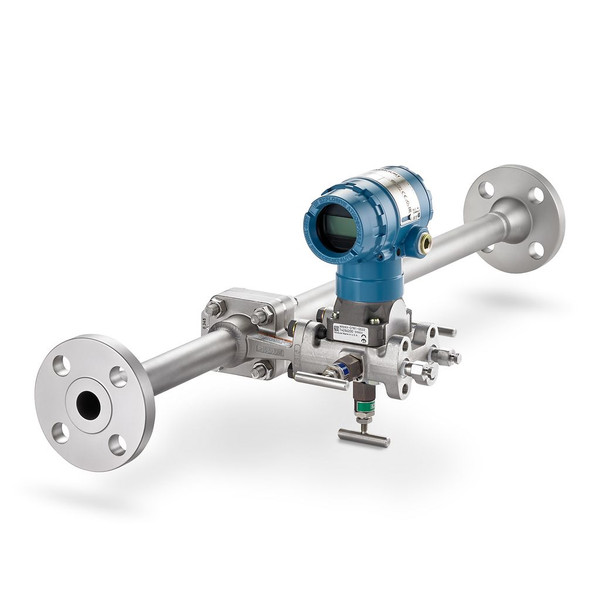

The Rosemount 2051CFC Integral Orifice Plate Flow Meter offers dependable flow measurements. This flow meter is engineered with an integral orifice primary element, which is provided in a meter run and facilitates accurate flow measurement in small line sizes (0.5 - 1.5 in. or 15 - 40 mm). This safety-certified transmitter also features a local operator interface (LOI) for easy field commissioning. This device is offered with multiple communication protocols, includingWirelessHART®.
Warranty: 5-year limited warranty
Rangedown: Up to 100:1 (5:1 flow turndown)
Measurement Range: Up to 1000 inH2O (2,48 bar) differential
Line Size: 0.5 to 1.5 in. (15 to 40 mm)
Output: Differentiual pressure, scaled variable
Communication Protocol: 4-20 mA HART®,WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART®
Process Wetted Material: 316 SST
Diagnostics: Basic Diagnostics
Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®, hazardous location, see full specs for complete list of certifications
Update Rate: 1 sec. to 60 min., user selectable
Power Module Life: Up to 10-year life, field replaceable (order separately)
Wireless Range: Internal antenna (225 m)
