NXP00225-A2T1SSV-A1A2000000+FL26+DCD3+ADFIF101+DLCN

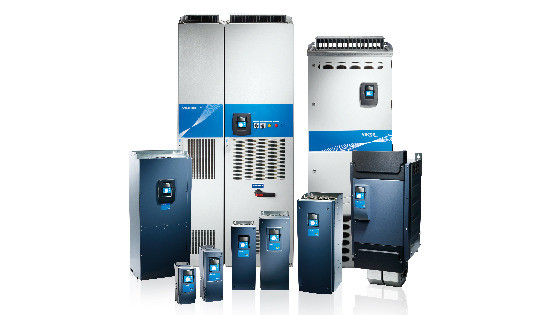

Vacon NXP Frequency Converter
380 – 500 Vac (465-800 Vdc), 22 Amp,IP21/NEMA1
Alpha-numeric display
IEC61800-3 for IT networks
Integrated Brake chopper
A Slot: 6DI,DO,2AI,1AO,+10Vr,+24V
C Slot: No board
D Slot: No board
E Slot: No board
Manual: Chinese
Frame 05
B Slot: 2RO(NO/NC)
Other options according to Model code
Product details
| Gross weight |
|
9.1 kg |
|
| Net weight |
|
8.1 kg |
|
| Volume |
|
0 l |
|
| EAN |
|
5715253433370 |
|
VACON NX_
| Product View (Switch) |
GLBL |
Global (Standard) |
|
| Product Group |
NXP |
NXP Frequency Converter |
|
| Customized Drive |
+BM26 |
Vacon Dark Grey NXP |
|
| Mechanical Modification |
S |
Standard air cooled drive |
|
| Mains voltage |
5- |
380 – 500 Vac (465-800 Vdc) |
|
| Current |
0022 |
22 Amp |
|
| Control Keypad |
A |
Alpha-numeric display |
|
| Enclosure |
2 |
IP21/NEMA1 |
|
| EMC emission levels |
T |
IEC61800-3 for IT networks |
|
| Brake Chopper |
1 |
Integrated Brake chopper |
|
| Electrical Modification |
S |
6-pulse with choke |
|
| Card Modifications |
V- |
DirectConn. w Varnished Boards |
|
| Shipping Package |
+GSCB |
Cardboard box as Shipping pack |
|
| Warranty |
+WT01 |
Warranty 12/18 months |
|
| Gland Plate Option |
+QGLC |
Inch conduit plate |
|
| Option Slot A |
A1 |
6DI,DO,2AI,1AO,+10Vr,+24V |
|
| Option Slot B |
A2 |
2RO(NO/NC) |
|
| Option Slot C |
00 |
No board |
|
| Option Slot D |
00 |
No board |
|
| Option Slot E |
00 |
No board |
|
| Firmware language package |
+FL26 |
UK,RU,CN;Others |
|
| Documentation Level |
+DQCK |
Quick guide user manual |
|
| Documentation Lang. Preference |
+DLCN |
Chinese |
|
| System Firmware |
+FNP02 |
System software NXP |
|
| Software license |
+DCD3 |
DC/DC converter; Uout,max>75% |
|
| Application |
+ADFIF101 |
Appl sw ADFIF101 NXP, NXI |
|
| Parameter Set |
NONE |
none |
|
| Motor Parameter Default |
+LS50 |
Default Motor frequency 50HZ |
|
| Labeling options |
+LPC1 |
no additional labels |
|
| Special BoM structure |
+SPC0 |
Standard BoM Configuration |
|
| CE Approval |
+GACE |
CE Approval |
|
| UL Approval |
+GAUL |
UL approval |
|
| RCM Approval |
+GACT |
RCM Approval N16307 |
|
| Marine approval |
NONE |
no marine approval |
|
| KC Approval |
+GAKC |
Korean Approval |
|
| Ukrainian Approval |
+GAUA |
Ukrainian Approval |
|
| EAC Approval |
+GAEA |
EAC Approval |
|
| Region |
-R00 |
International (-R00) |
|
| Frame Size |
FR05 |
Frame 05 |
|
| Sub family identification |
NONE |
Normal customer ordered |
|
| Customer specific power variat |
NONE |
Normal power rating |
|
| Typecode Part 1 |
|
7DP-002252 |
|
| Typecode Part 2 |
|
-000112689 |
|
| Salestext |
|
FR0500225-2T |
|
| Modelcode01 |
|
NXP00225-A2T1SSV- |
|
| Modelcode02 |
|
A1A2000000 |
|
| Modelcode03 |
|
+FL26+DCD3 |
|
| Modelcode04 |
|
+ADFIF101 |
|
| Modelcode05 |
|
+DLCN |
|
| Calculated Net Weight [kg] |
|
8.1 |
|
| Calculated Gross Weight [kg] |
|
9.1 |
|
| Motor Power Low Overload [kW] |
|
11 |
|
| Motor Power High Overload [kW] |
|
7,5 |
|
| Dimensions WxHxD [mm] |
|
144X417X214 |
|
| Continuous Current (NO) [A] |
|
23 |
|
| Continuous Current (HO) [A] |
|
16 |
|
| Product Catalog |
NO_VIEW |
NO VIEW |
|
| Prefix VXSNXLM |
|
7 |
|
| Platform VXSNXLM |
|
D |
|
| Stock Code |
|
7DP-002252 |
|
| check if complete |
|
OK |
|
| Help Counter |
|
1 |
|
| Vendor |
ERR01 |
Cannot Determine Vendor |
|
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
|
| ECCN EU |
|
X.A.I.003 |
|
| ECCN US |
|
3A999.a |
|
| Recommended Plant |
|
ERR01 |
|
