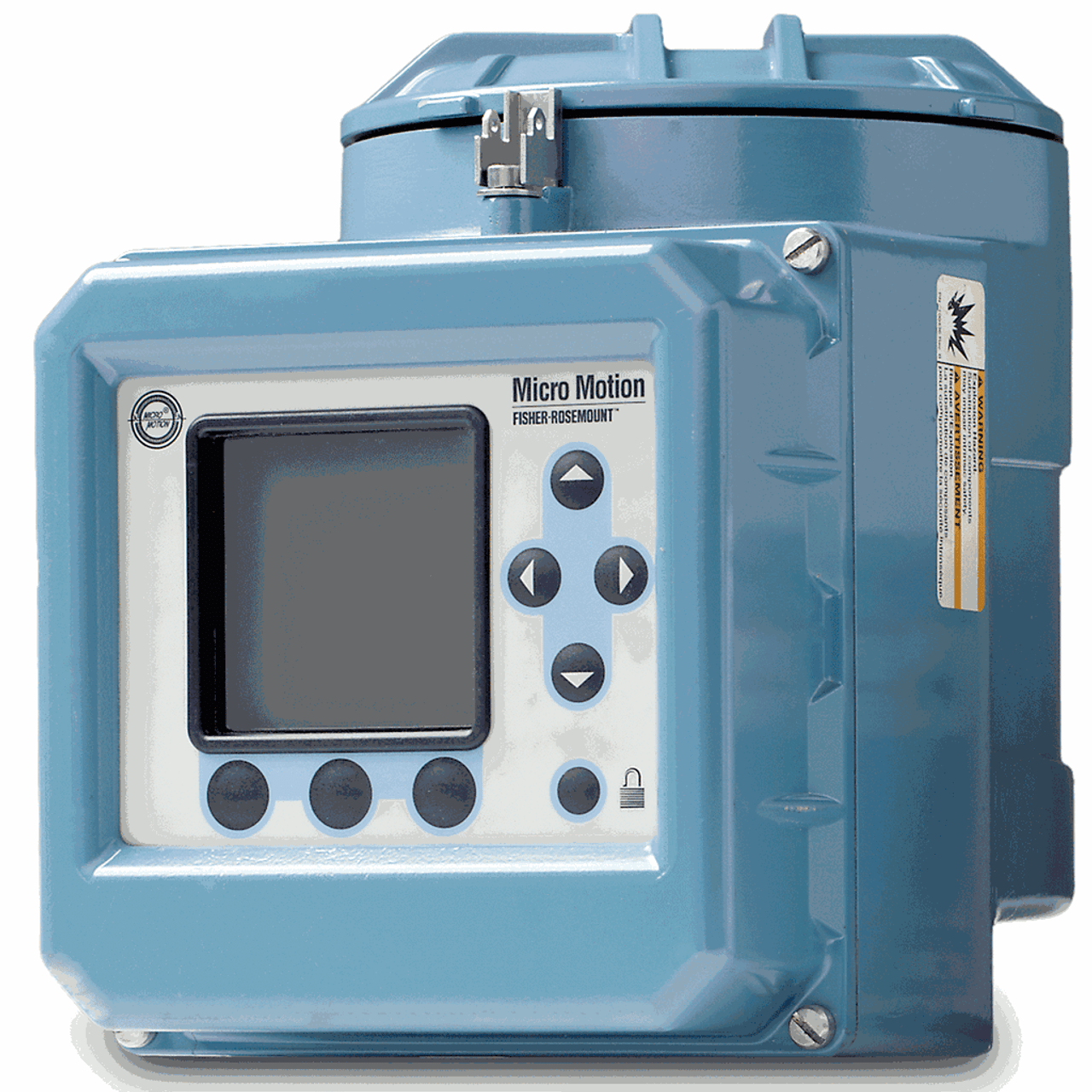

Micro Motion Series 3000 Transmitters and Controllers

With combined Coriolis transmitter functions and PLC capabilities, the Micro Motion Series 3000 is built for industy-focused solutions, including net oil computer, enhanced density, custody transfer and marine fuel bunkering solutions. Housing: 3500/3300 Rack:19-inch (486.2 mm) rack-mount housing meets DIN standard 41494 and IEC 297-33500/3300 Panel:Front panel with bezel is rated NEMA 4X (IP65) Front panel is aluminum with laminate overlay Housing: 3700/3350 Field: Housing is epoxy painted aluminum, bracket is 304 SSNEMA 4X (CSA) and IP66/IP67 (ATEX/IECEx) Weight: 3500/3300: Maximum 3.5 lb (1.6 kg), excluding prepared cables3700/3350: 19 lb (8.6 k) Display: Backlit LCD, 128 x 128 pixel, bit map Adjustable contrast Non-glare, chemical-resistant acrylic lens Interface: Large push buttons with tactile feedbackSoftware-defined function keysChemical-resistant polyester
