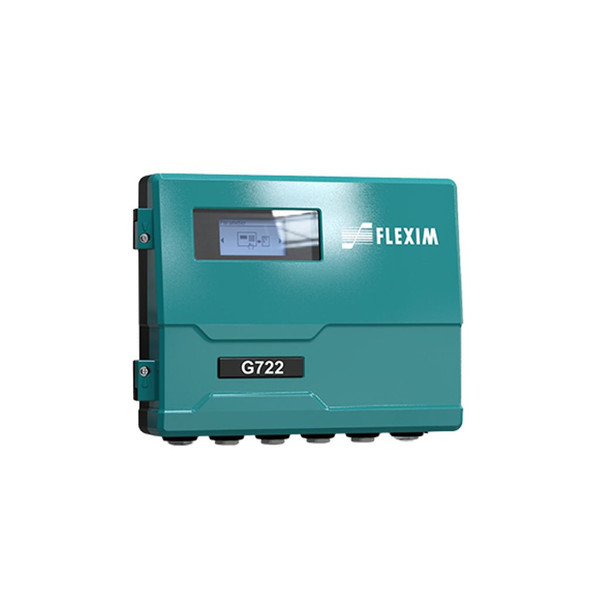

The Flexim FLUXUS G722 gas flow meter is a high performing ultrasonic clamp-on meter specifically designed for measurement of dynamic flows in the process industry. This sophisticated, versatile, and accurate flow meter has everything you need - faster processing capabilities, advanced diagnostics, bidirectional communication protocols, digital outputs, and process inputs. The G722 offers ease of installation, retrofittable design, accuracy, and outstanding performance. Using the new Synchronized Channel Averaging method (SCA), the G722 ultrasonic flow meter sends signals both in the direction of the flow and against the flow every 1millisecond.
Fluid type: All gases
Accuracy: Measurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,005 m/s (±0.02 ft/s)Measurement uncertainty at the measuring point (volumetric flow rate): ±1…2 % of reading ±0,005 m/s (±0.02 ft/s)
Repeatability: 0.15 % of reading ±0,005 m/s (±0.02 ft/s)
Flow Channels: 2
Range: Flow Velocity Range: 0,01…35 m/s (0.03 to 115 ft/s), depending on pipe diameter
Certifications/Approvals: FM Class I /Div 2ATEX/IECEx Zone 2PESOKOSHA
Power supply: 100-230VAC24VDC12VDC
Pipe size: 7 to 1600 mm (0.28 to 63 inch)
Pressure range: 1barg (15 psig) to unlimited
Temperature range (media): -40 to +240°C (-40 to +464°F) / WI: -200 to +630°C (-328 to +1166°F)
Output: 4-20mA active/passive4-20mA HART active/passivepulse/frequency/binaryvoltage
Input: Temperature4-20mA active/passivebinaryvoltage
Communication Protocol: Modbus RTU/TCPBACnet MSTP/IPProfibus PAFoundation Fieldbus
System configuration and installation: For more detailed Information please download the Technical Specifications
