Frequency converter FC-302P560T5E54H2XGCJXXSXXXXAXBXCXXXXDX VLT® AutomationDrive FC-302 (P560) 560 KW / 750 HP, Three phase 380 - 500 VAC, (E54) IP54 / Type 12 RFI Filter No brake chopper Graphical Loc. Cont. Panel Coated PCB, Circuit Breaker + Fuse Latest release std. SW. Frame: F3 No C1 option, No D option No A Option, No B Option Other options according to Model code
| Gross weight | | 1247 kg | |
| Net weight | | 997 kg | |
| Volume | | 0 l | |
| EAN | | 5702427490314 | |

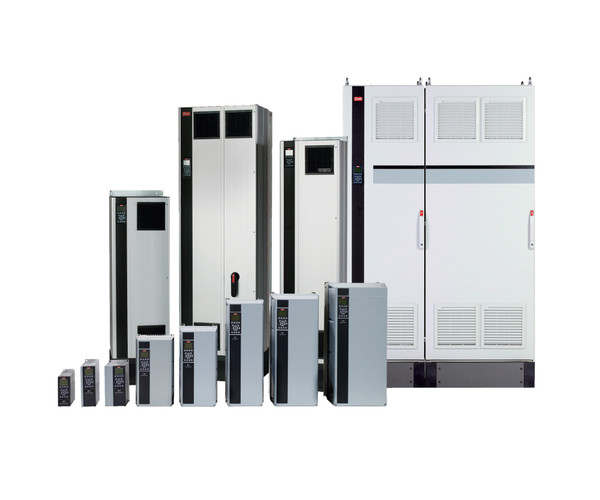

VLT® AUTOMATIONDRIVE FC 300 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 302 | 302 | |
| Power Rating | P560 | (P560) 560 KW / 750 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 5 | 380 - 500 VAC | |
| Enclosure | E54 | (E54) IP54 / Type 12 | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | J | Circuit Breaker + Fuse | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | F3 | F3 | |
| Typecode Part 1 | | FC-302P560T5E54H2XGC | |
| Typecode Part 2 | | JXXSXXXXAXBXCXXXXDX | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | | 560 | |
| Power 110% (NO) [KW] | | 630 | |
| Height [mm] | | 2204,0 | |
| Width w/ no C options [mm] | | 2000,0 | |
| Depth [mm] | | 606,0 | |
| Depth with Option A/B [mm] | | 606,0 | |
| kVA | | 686 | |
| Power Loss NO [W] | | 12512 | |
| Power Loss NO [W] | | 11595 | |
| Power Loss HO [W] | | 10649 | |
| Power Loss HO [W] | | 9414 | |
| Continuous Current (NO) [A] | | 1120 | |
| Intermittent Current (NO) [A] | | 1232 | |
| Continuous Current (NO) [A] | | 1050 | |
| Intermittent Current (NO) [A] | | 1155 | |
| Continuous Current (HO) [A] | | 990 | |
| Intermittent Current (HO) [A] | | 1485 | |
| Continuous Current (HO) [A] | | 890 | |
| Intermittent Current (HO) [A] | | 1335 | |
| Calculated Gross Weight [kg] | | 1004.3 | |
| Calculated Net Weight [kg] | | 1004 | |
| ECCN EU | | X.A.I.003 | |
| ECCN US | | 3A999 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | | FC-302P560T5E54H2XGC | |
| Modelcode02 | | JXXSXXXXAXBXCXXXXDX | |
