Frequency converter FC-302P3K0T2E20H1BGXXXXSXXXXAXBKCXXXXDX VLT® AutomationDrive FC-302 (P3K0) 3.0 KW / 4.0 HP, Three phase 200 - 240 VAC, (E20) IP20 / Chassis (H1) RFI Class A1/B (C1) Brake chopper Graphical Loc. Cont. Panel Not coated PCB, No Mains Option Latest release std. SW. Frame: A3 No C1 option, No D option No A Option, MCB-101 General purp. I/O Other options according to Model code
| Gross weight | | 7.18 kg | |
| Net weight | | 6.65 kg | |
| Volume | | 0 l | |
| EAN | | 5710107201914 | |

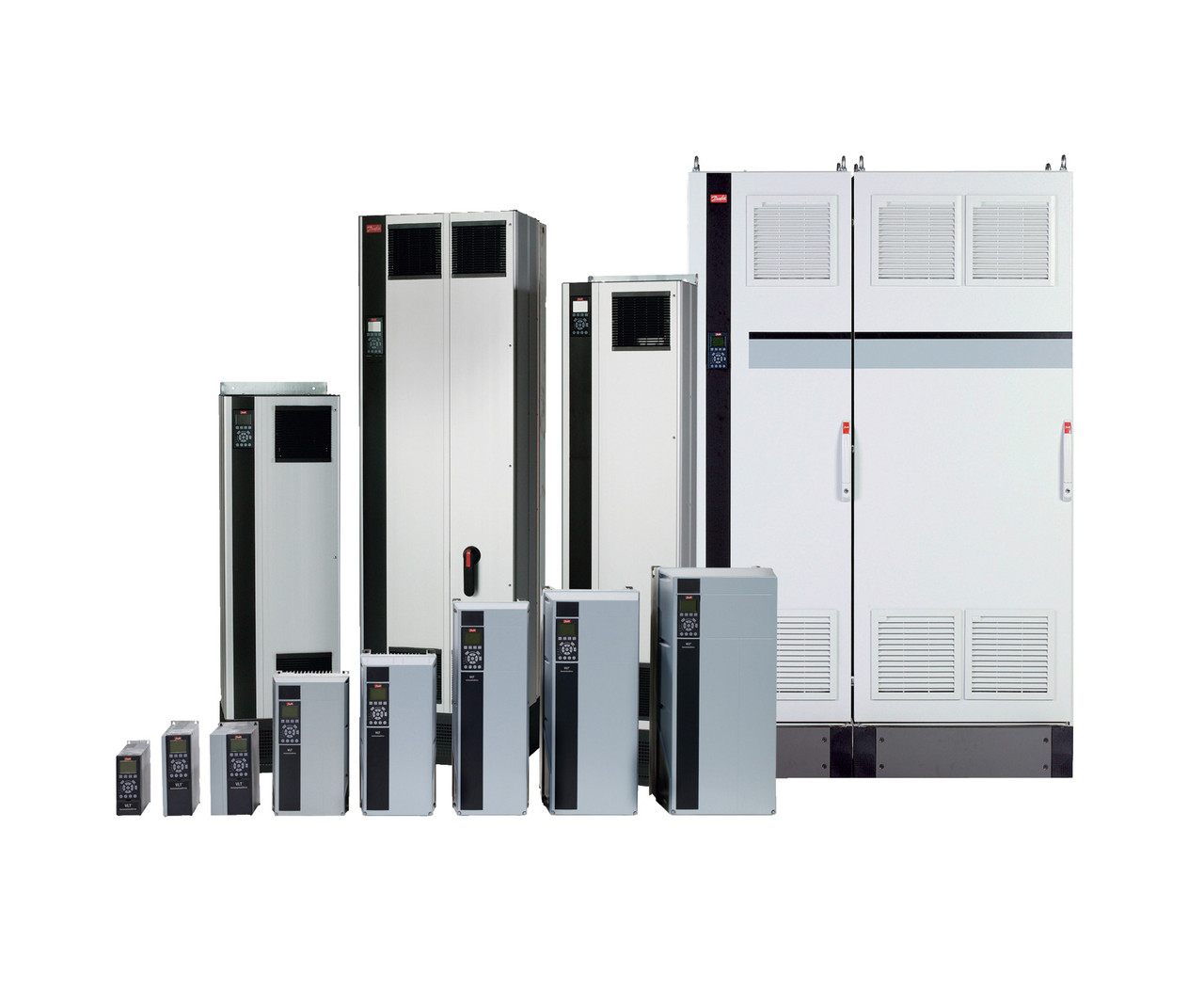

VLT® AUTOMATIONDRIVE FC 300 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 302 | 302 | |
| Power Rating | P3K0 | (P3K0) 3.0 KW / 4.0 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 2 | 200 - 240 VAC | |
| Enclosure | E20 | (E20) IP20 / Chassis | |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) | |
| Brake - Safe Stop | B | Brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BK | MCB-101 General purp. I/O | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | A3 | A3 | |
| Typecode Part 1 | | FC-302P3K0T2E20H1BGX | |
| Typecode Part 2 | | XXXSXXXXAXBKCXXXXDX | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 160% (HO) [KW] | | 3 | |
| Height [mm] | | 268,0 | |
| Width w/ no C options [mm] | | 130,0 | |
| Width w/ two C options [mm] | | 190,0 | |
| Depth [mm] | | 205,0 | |
| Depth with Option A/B [mm] | | 220,0 | |
| kVA | | 4.5 | |
| Power Loss HO [W] | | 155 | |
| Continuous Current (HO) [A] | | 12.5 | |
| Intermittent Current (HO) [A] | | 20 | |
| Calculated Gross Weight [kg] | | 7.18 | |
| Calculated Net Weight [kg] | | 6.65 | |
| ECCN EU | | X.A.I.003 | |
| ECCN US | | 3A999 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | | FC-302P3K0T2E20H1BGX | |
| Modelcode02 | | XXXSXXXXAXBKCXXXXDX | |
