Frequency converter FC-301PK25T2P55H1XGX1XXSXXXXAXBXCXXXXDX VLT® AutomationDrive FC-301 (PK25) 0.25 KW / 0.33 HP, Three phase 200 - 240 VAC, IP55 / Type12 Backplate (H1) RFI Class A1/B (C1) No brake chopper Graphical Loc. Cont. Panel Not coated PCB, Mains Disconnect Latest release std. SW. Frame: A5 No C1 option, No D option No A Option, No B Option Other options according to Model code
| Gross weight | | 12.52 kg | |
| Net weight | | 11.9 kg | |
| Volume | | 0 l | |
| EAN | | 5710107166602 | |

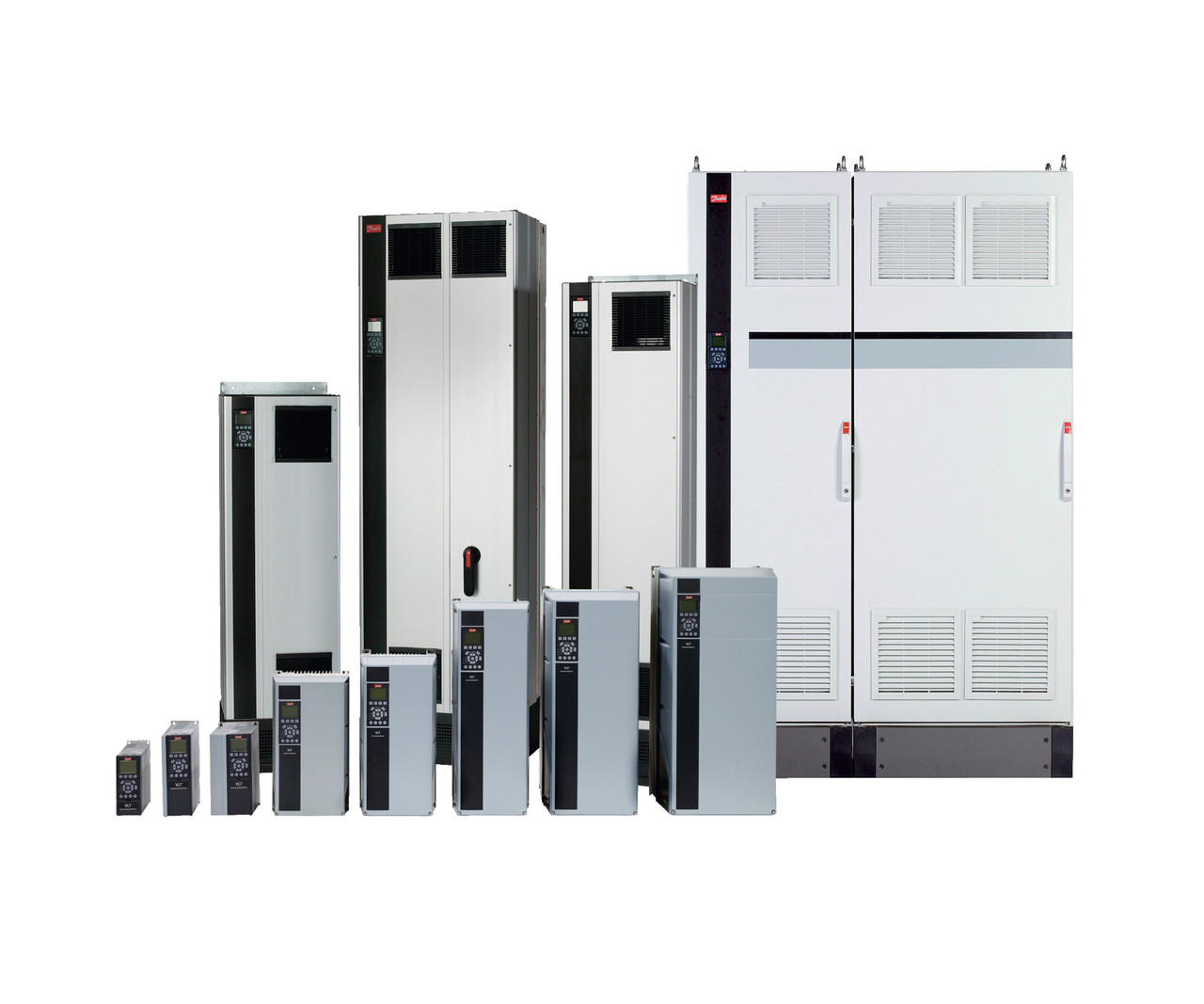

VLT® AUTOMATIONDRIVE FC 300 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 301 | 301 | |
| Power Rating | PK25 | (PK25) 0.25 KW / 0.33 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 2 | 200 - 240 VAC | |
| Enclosure | P55 | IP55 / Type12 Backplate | |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | 1 | Mains Disconnect | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | A5 | A5 | |
| Typecode Part 1 | | FC-301PK25T2P55H1XGX | |
| Typecode Part 2 | | 1XXSXXXXAXBXCXXXXDX | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 160% (HO) [KW] | | 0.25 | |
| Height [mm] | | 420,0 | |
| Width w/ no C options [mm] | | 242,0 | |
| Depth [mm] | | 200,0 | |
| Depth with Option A/B [mm] | | 200,0 | |
| kVA | | 0.65 | |
| Power Loss HO [W] | | 21 | |
| Continuous Current (HO) [A] | | 1.8 | |
| Intermittent Current (HO) [A] | | 2.88 | |
| Calculated Gross Weight [kg] | | 12.52 | |
| Calculated Net Weight [kg] | | 11.9 | |
| ECCN EU | | X.A.I.003 | |
| ECCN US | | 3A999 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | | FC-301PK25T2P55H1XGX | |
| Modelcode02 | | 1XXSXXXXAXBXCXXXXDX | |
