Danfoss

FC-301P22KT4E21H2XNCXXXSXXXXAXBXCXXXXD0

Write a Review
3,227.68€
SKU:
131F7456
Availability:
2 to 3 weeks
Request a Quote
Frequency converter FC-301P22KT4E21H2XNCXXXSXXXXAXBXCXXXXD0 VLT® AutomationDrive FC-301 (P22K) 22 KW / 30 HP, Three phase 380 - 480 VAC, IP21 / Type 1 RFI Filter No brake chopper Numerical Loc. Cont. Panel Coated PCB, No Mains Option Latest release std. SW. Frame: B2 No C1 option, MCB-107 24V DC backup No A Option, No B Option Other options according to Model code

Gross weight28.67 kg
Net weight27.72 kg
Volume0 l
EAN5710107155682

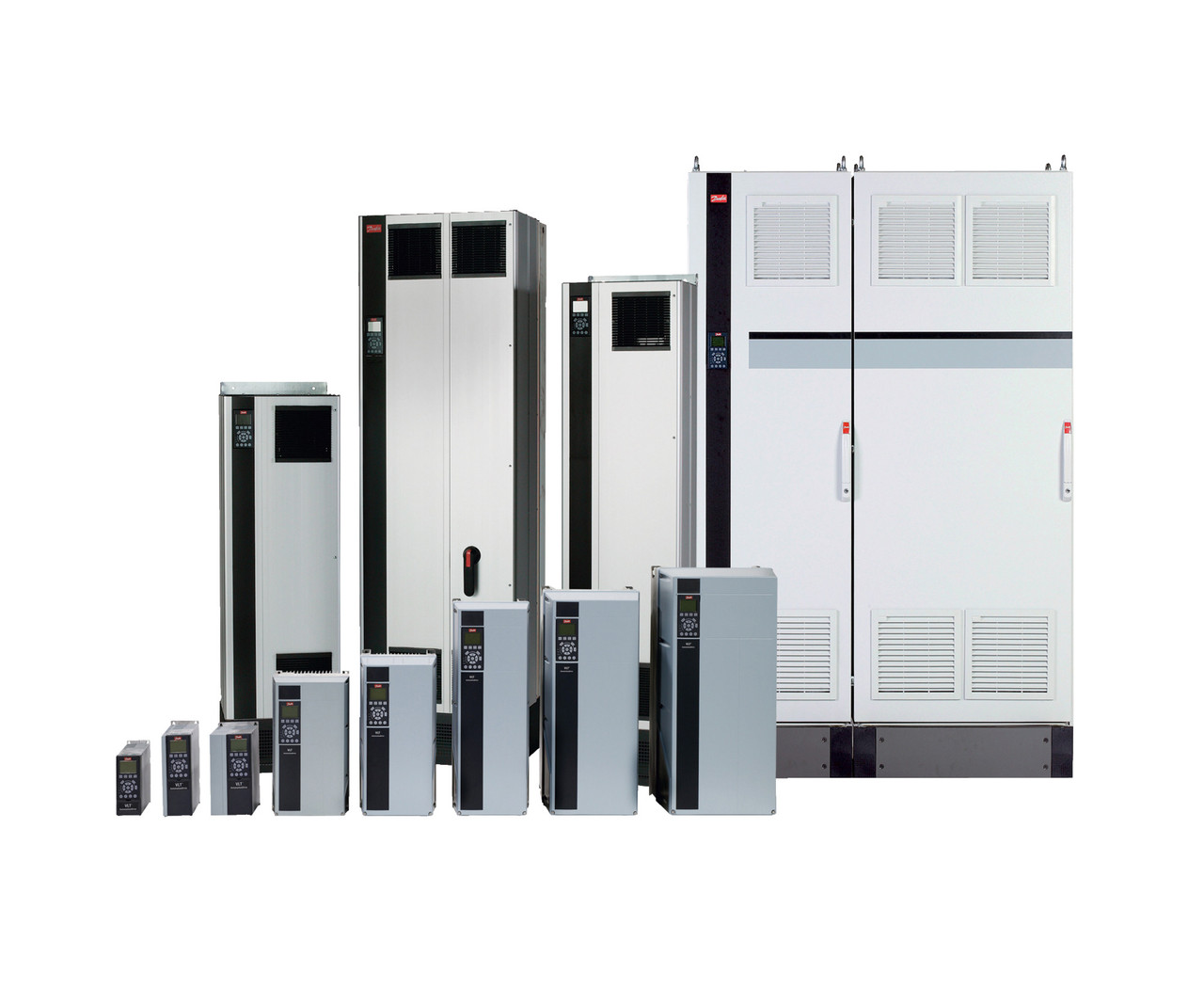

VLT® AUTOMATIONDRIVE FC 300 SERIES

Product View (Switch)GLBLGlobal (Standard)
Product GroupFC-VLT® AutomationDrive FC-
Series301301
Power RatingP22K(P22K) 22 KW / 30 HP
PhaseTThree phase
Mains Voltage4380 - 480 VAC
EnclosureE21IP21 / Type 1
RFI FilterH2RFI Filter
Brake - Safe StopXNo brake chopper
LCPNNumerical Loc. Cont. Panel
Coating PCBCCoated PCB
Mains OptionXNo Mains Option
Adaptation AXStandard Cable Entries
Adaptation BXNo adaptation
Software ReleaseSXXXLatest release std. SW.
Software Language PackXStandard Language Pack
A OptionAXNo A Option
B OptionBXNo B Option
C0 Option MCOCXNo C0 option
C1 OptionXNo C1 option
C Option SoftwareXXNo software option
D OptionD0MCB-107 24V DC backup
Frame SizeB2B2
Typecode Part 1FC-301P22KT4E21H2XNC
Typecode Part 2XXXSXXXXAXBXCXXXXD0
Product CatalogNO_VIEWNO VIEW
Power 160% (HO) [KW]22
Power 110% (NO) [KW]30
Height [mm]650,0
Width w/ no C options [mm]242,0
Depth [mm]260,0
Depth with Option A/B [mm]260,0
kVA30.5
Power Loss NO [W]739
Power Loss NO [W]739
Power Loss HO [W]547
Power Loss HO [W]547
Continuous Current (NO) [A]61
Intermittent Current (NO) [A]67.1
Continuous Current (NO) [A]52
Intermittent Current (NO) [A]57.2
Continuous Current (HO) [A]44
Intermittent Current (HO) [A]70.4
Continuous Current (HO) [A]40
Intermittent Current (HO) [A]64
Calculated Gross Weight [kg]28.67
Calculated Net Weight [kg]27.72
ECCN EUX.A.I.003
ECCN US3A999
VendorERR01Cannot Determine Vendor
Modelcode01FC-301P22KT4E21H2XNC
Modelcode02XXXSXXXXAXBXCXXXXD0
