Frequency converter FC-301P1K5T4E20H2XXXXXXSXXXXAXBXCXXXXD0 VLT® AutomationDrive FC-301 (P1K5) 1.5 KW / 2.0 HP, Three phase 380 - 480 VAC, (E20) IP20 / Chassis RFI Filter No brake chopper No Loc. Cont. Panel Not coated PCB, No Mains Option Latest release std. SW. Frame: A2 No C1 option, MCB-107 24V DC backup No A Option, No B Option Other options according to Model code
| Gross weight | | 5.2 kg | |
| Net weight | | 4.9 kg | |
| Volume | | 0 l | |
| EAN | | 5710107153923 | |

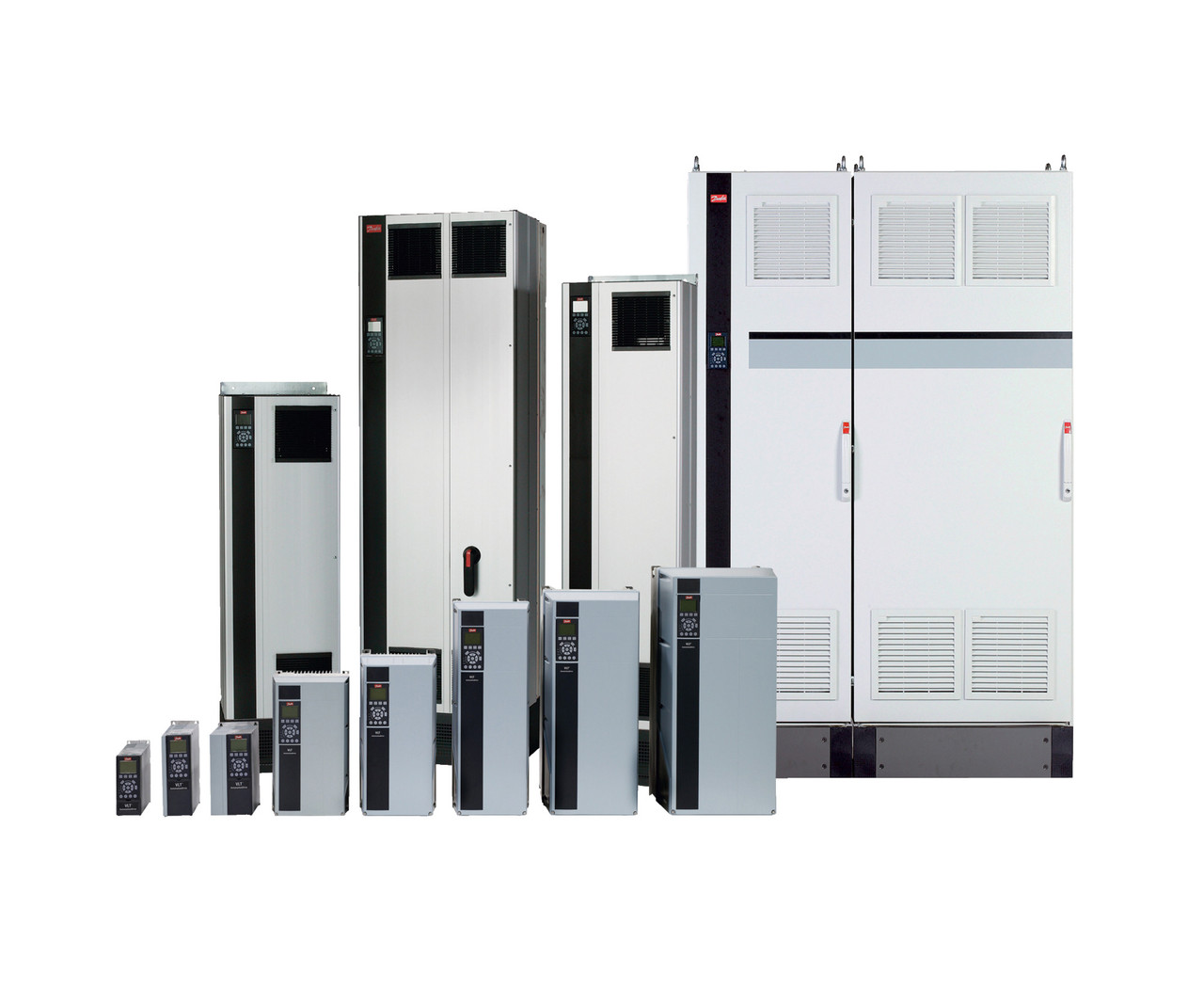

VLT® AUTOMATIONDRIVE FC 300 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 301 | 301 | |
| Power Rating | P1K5 | (P1K5) 1.5 KW / 2.0 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | E20 | (E20) IP20 / Chassis | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | X | No Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | A2 | A2 | |
| Typecode Part 1 | | FC-301P1K5T4E20H2XXX | |
| Typecode Part 2 | | XXXSXXXXAXBXCXXXXD0 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 160% (HO) [KW] | | 1.5 | |
| Height [mm] | | 268,0 | |
| Width w/ no C options [mm] | | 90,0 | |
| Width w/ two C options [mm] | | 150,0 | |
| Depth [mm] | | 205,0 | |
| Depth with Option A/B [mm] | | 220,0 | |
| kVA | | 2.84 | |
| Power Loss HO [W] | | 62 | |
| Power Loss HO [W] | | 62 | |
| Continuous Current (HO) [A] | | 4.1 | |
| Intermittent Current (HO) [A] | | 6.56 | |
| Continuous Current (HO) [A] | | 3.4 | |
| Intermittent Current (HO) [A] | | 5.44 | |
| Calculated Gross Weight [kg] | | 4.9 | |
| Calculated Net Weight [kg] | | 4.6 | |
| ECCN EU | | X.A.I.003 | |
| ECCN US | | 3A999 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | | FC-301P1K5T4E20H2XXX | |
| Modelcode02 | | XXXSXXXXAXBXCXXXXD0 | |
