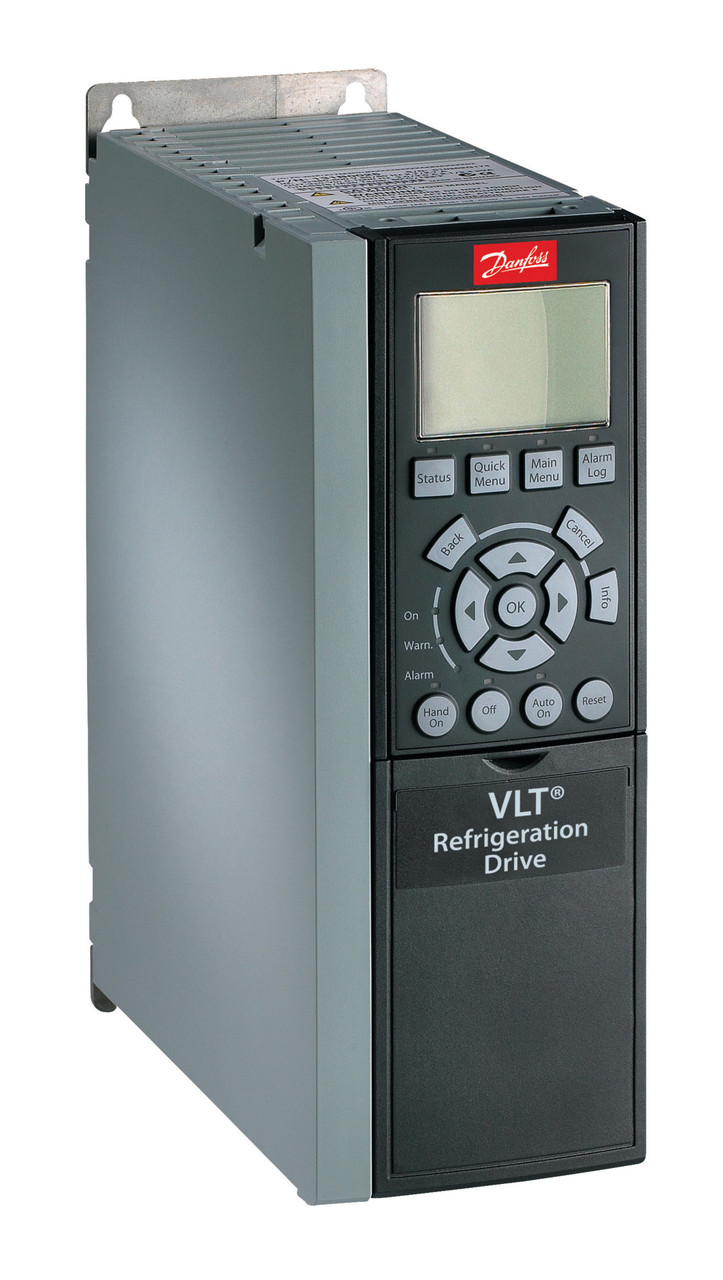

Frequency converter FC-103P5K5T4P55H1XXXXXXSXXXXAXBXCXXXXDX VLT® Refrigeration Drive FC-103 5.5 KW / 7.5 HP, Three phase 380 - 480 VAC, IP55 / Type12 Backplate RFI filter Class A1 / B No brake chopper No Loc. Cont. Panel Not coated PCB, No Mains Option Latest release std. SW. No A Option, No B Option No C1 option, No D option Frame: A5 Other options according to Model code
Product details
| Gross weight | | 14.3 kg | |
| Net weight | | 14 kg | |
| Volume | | 52.36 l | |
| EAN | | 5710108272968 | |
VLT® REFRIGERATION DRIVE FC 103 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® Refrigeration Drive | |
| Series | 103 | 103 | |
| Power Rating | P5K5 | 5.5 KW / 7.5 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | P55 | IP55 / Type12 Backplate | |
| RFI Filter | H1 | RFI filter Class A1 / B | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | X | No Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | A5 | A5 | |
| Product Catalog | GLBL | GLOBAL (STANDARD) | |
| Typecode Part 1 | | FC-103P5K5T4P55H1XXX | |
| Typecode Part 2 | | XXXSXXXXAXBXCXXXXDX | |
| Power 110% (NO) [KW] | | 5.5 | |
| Height [mm] | | 420,0 | |
| Width w/ no C options [mm] | | 242,0 | |
| Depth [mm] | | 200,0 | |
| Depth with Option A/B [mm] | | 200,0 | |
| kVA | | 9.01 | |
| Power Loss NO [W] | | 187 | |
| Power Loss NO [W] | | 187 | |
| Continuous Current (NO) [A] | | 13 | |
| Intermittent Current (NO) [A] | | 14.3 | |
| Continuous Current (NO) [A] | | 11 | |
| Intermittent Current (NO) [A] | | 12.1 | |
| Calculated Gross Weight [kg] | | 15.3 | |
| Calculated Net Weight [kg] | | 15 | |
| ECCN EU | | X.A.I.003 | |
| ECCN US | | 3A999 | |
| Vendor | B901 | (B901) Factory DK | |
| Recommended Factory | B901 | (B901) DK-G | |
| Modelcode01 | | FC-103P5K5T4P55H1XXX | |
| Modelcode02 | | XXXSXXXXAXBXCXXXXDX | |
