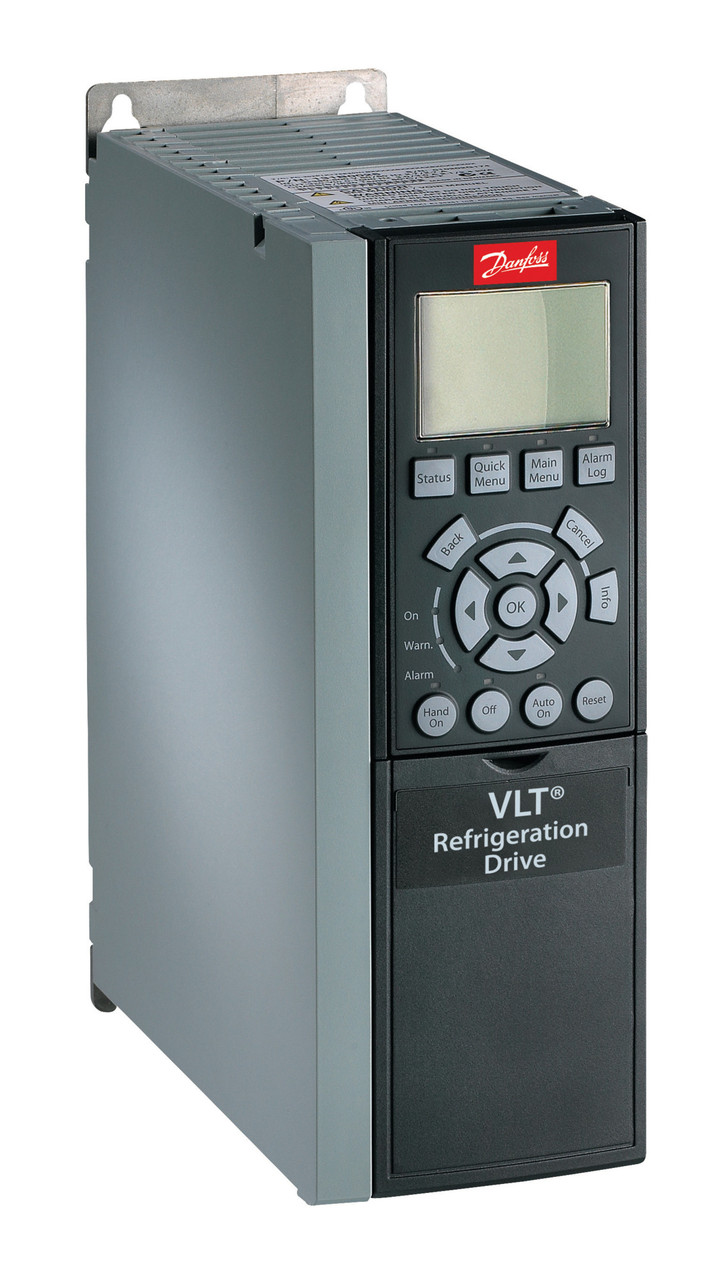

Frequency converter FC-103P3K7T2P55H2TGXXSXSXXXXAXBXCXXXXDX VLT® Refrigeration Drive FC-103 3.7 KW / 5.0 HP, Three phase 200 - 240 VAC, IP55 / Type12 Backplate RFI filter Class A2 Safe Stop Graphical Loc. Cont. Panel Not coated PCB, No Mains Option Latest release std. SW. No A Option, No B Option No C1 option, No D option Frame: A5 Other options according to Model code
Product details
| Gross weight | | 13.6 kg | |
| Net weight | | 13.3 kg | |
| Volume | | 52.36 l | |
| EAN | | 5715253564906 | |
VLT® REFRIGERATION DRIVE FC 103 SERIES
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® Refrigeration Drive | |
| Series | 103 | 103 | |
| Power Rating | P3K7 | 3.7 KW / 5.0 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 2 | 200 - 240 VAC | |
| Enclosure | P55 | IP55 / Type12 Backplate | |
| RFI Filter | H2 | RFI filter Class A2 | |
| Brake - Safe Stop | T | Safe Stop | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | S | Smooth imperial cable entr | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | A5 | A5 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 1 | | FC-103P3K7T2P55H2TGX | |
| Typecode Part 2 | | XSXSXXXXAXBXCXXXXDX | |
| Power 110% (NO) [KW] | | 3.7 | |
| Height [mm] | | 420,0 | |
| Width w/ no C options [mm] | | 242,0 | |
| Depth [mm] | | 200,0 | |
| Depth with Option A/B [mm] | | 200,0 | |
| kVA | | 6.02 | |
| Power Loss NO [W] | | 185 | |
| Continuous Current (NO) [A] | | 16.7 | |
| Intermittent Current (NO) [A] | | 18.4 | |
| Calculated Gross Weight [kg] | | 13.6 | |
| Calculated Net Weight [kg] | | 13.3 | |
| ECCN EU | | X.A.I.003 | |
| ECCN US | | 3A999 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | | FC-103P3K7T2P55H2TGX | |
| Modelcode02 | | XSXSXXXXAXBXCXXXXDX | |
