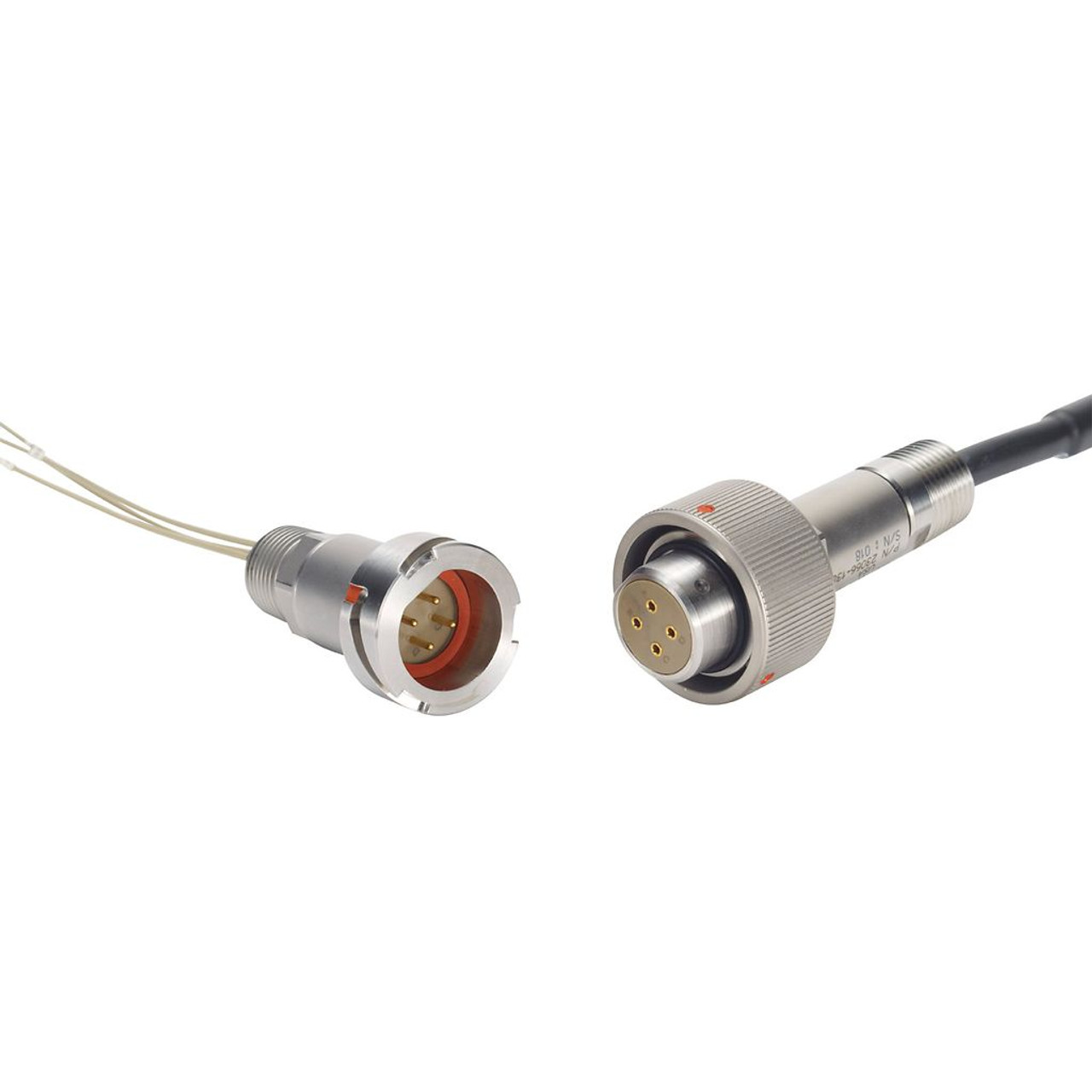

The EGS Quick Disconnect (QDC) Nuclear Electrical Connector is suitable for both Generation 1 and Generation 3 nuclear power plants. The EGS QDC is a bayonet-style, quick-disconnect connector that can be locked and unlocked with a simple twist. Designed, qualified and manufactured by Curtiss-Wright Nuclear, this lightweight connector can be used with all Rosemount 1150 and 3150 Series Pressure Transmitters.
Qualified Life: Connector: 40 years at 150 °F (66 °C); 60 years at 144 °F (62.3 °C)EPDM O-ring: 10 years at 150 °F (66 °C); EPDM O-ring & Silicone gasket: 25 years at 144 °F (62.3 °C)
Qualification Standard: IEEE 572 – 1985IEEE 323 – 1974/1983IEEE 344 – 1987IEEE 382 – 198010CFR50.49
Product Literature: The Product Data Sheets and Manuals posted on this web-site are intended for general product information only, with errata included. They may not represent the latest revision or contain information relating to recent product notifications, if any.
Contact Information: Please contact Rosemount Nuclear Instruments, Inc. at 1-952-949-5207 or[email protected]for the most current information available
