| Gross weight | 10.965 Kilogram |
| Net weight | 10.038 Kilogram |
| Volume | 25.069 Liter |
| EAN | 5702428242189 |
| Gross weight | 10.965 Kilogram |
| Net weight | 10.038 Kilogram |
| Volume | 25.069 Liter |
| EAN | 5702428242189 |
| Approval |
CMIM EAC LLC CDC TYSK |
| China RoHS compliance | Out of scope |
| Connection Internal/External | Internal |
| Connection size [in] | 3/4 in |
| Connection standard | ANSI/ASME B1.20.1 |
| Connection type | NPT |
| Contain batteries | No |
| Electrical connection size | Pg 11 |
| Electrical connection standard | DIN 43650 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Fluid Group |
1 2 |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| PED category | I |
| Product accessories | Liq. level switch accessories |

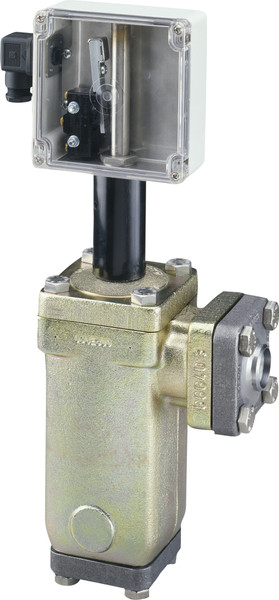

| Product description | Float Switch |
| Product group | Switches and thermostats |
| Product Name Description | Liquid level switch |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants |
R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A |
| Serviceable | Liq. level switch spare parts |
| Temperature range [°C] [max] | 65 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 149 °F |
| Temperature range [°F] [min] | -58 °F |
| Type | AKS 38 |
| UK RoHS compliance | Out of scope |
| Approval |
CMIM EAC LLC CDC TYSK |
| China RoHS compliance | Out of scope |
| Connection Internal/External | Internal |
| Connection size [in] | 3/4 in |
| Connection standard | ANSI/ASME B1.20.1 |
| Connection type | NPT |
| Contain batteries | No |
| Electrical connection size | Pg 11 |
| Electrical connection standard | DIN 43650 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Fluid Group |
1 2 |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| PED category | I |
| Product accessories | Liq. level switch accessories |
| Product description | Float Switch |
| Product group | Switches and thermostats |
| Product Name Description | Liquid level switch |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants |
R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A |
| Serviceable | Liq. level switch spare parts |
| Temperature range [°C] [max] | 65 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 149 °F |
| Temperature range [°F] [min] | -58 °F |
| Type | AKS 38 |
| UK RoHS compliance | Out of scope |
