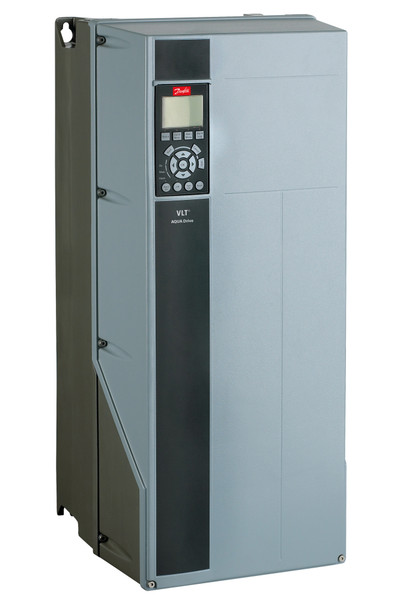

Danfoss 137U3003 FC-202N250T7E20H2TGC7XXSXXXXA0BXCXXXXD0

Frequency converter
FC-202N250T7E20H2TGC7XXSXXXXA0BXCXXXXD0
VLT® AQUA Drive FC-202
(N250) 250 KW / 350 HP, Three phase
525 - 690 VAC *, (E20) IP20 / Chassis
RFI Filter
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
Frame: D4H
No C1 option, MCB-107 24V DC backup
PROFIBUS DP MCA 101, No B Option
Gross weight 125.3 kg
Net weight 125 kg
Volume 0 l
EAN 5715253713618
VLT® AQUA DRIVE FC 200 SERIES
Product View (Switch) GLBL Global (Standard)
Product Group FC- VLT® AQUA Drive FC-
Series 202 202
Power Rating N250 (N250) 250 KW / 350 HP
Phase T Three phase
Mains Voltage 7 525 - 690 VAC *
Possible rating issue WARN01 Possible Rating Issue:
Enclosure E20 (E20) IP20 / Chassis
RFI Filter H2 RFI Filter
Brake - Safe Stop T Safe Stop
LCP G Graphical Loc. Cont. Panel
Coating PCB C Coated PCB
Mains Option 7 Fuse
Adaptation A X Standard Cable Entries
Adaptation B X No adaptation
Software Release SXXX Latest release std. SW.
Software Language Pack X Standard Language Pack
A Option A0 PROFIBUS DP MCA 101
B Option BX No B Option
C0 Option MCO CX No C0 option
C1 Option X No C1 option
C Option Software XX No software option
D Option D0 MCB-107 24V DC backup
Frame Size D4H D4H
Typecode Part 1 FC-202N250T7E20H2TGC
Typecode Part 2 7XXSXXXXA0BXCXXXXD0
Product Catalog GLBL Global (Standard)
Power 150% (HO) [KW] 200
Power 110% (NO) [KW] 250
Height [mm] 1122,0
Height w/ Regen/Loadshare [mm] 1268,0
Width w/ no C options [mm] 350,0
Depth [mm] 375,0
Depth with Option A/B [mm] 375,0
kVA 347
Power Loss NO [W] 3723
Power Loss NO [W] 3851
Power Loss HO [W] 3012
Power Loss HO [W] 3123
Continuous Current (NO) [A] 303
Intermittent Current (NO) [A] 333
Continuous Current (NO) [A] 290
Intermittent Current (NO) [A] 319
Continuous Current (HO) [A] 253
Intermittent Current (HO) [A] 380
Continuous Current (HO) [A] 242
Intermittent Current (HO) [A] 363
Calculated Gross Weight [kg] 125.3
Calculated Net Weight [kg] 125
ECCN EU Y901
ECCN US 3A999.a
Plant from Orderline F605
Vendor ERR01 Cannot Determine Vendor
Recommended Factory ERR01 Cannot Determine Vendor
Modelcode01 FC-202N250T7E20H2TGC
Modelcode02 7XXSXXXXA0BXCXXXXD0
