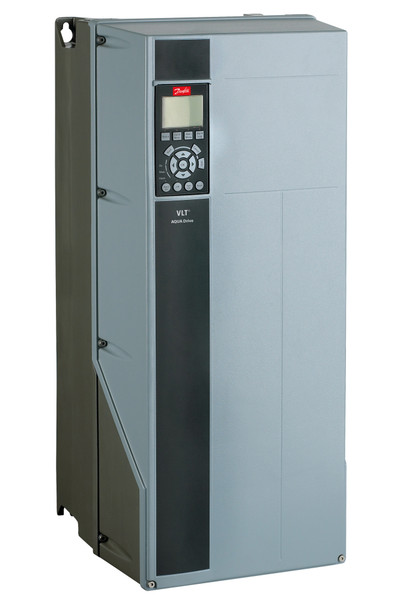

Danfoss 137H6172 FC-202P15KT7E20H4UGCXXXSXXXXA0BXCXXXXD0

Frequency converter
FC-202P15KT7E20H4UGCXXXSXXXXA0BXCXXXXD0
VLT® AQUA Drive FC-202
(P15K) 15 KW / 20 HP, Three phase
525 - 690 VAC *, (E20) IP20 / Chassis
RFI class A1 (C2)
Brake chopper + Safe stop
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
Frame: B4
No C1 option, MCB-107 24V DC backup
PROFIBUS DP MCA 101, No B Option
Gross weight 20.9 kg
Net weight 19.94 kg
Volume 228.095 l
EAN 5715253430096
VLT® AQUA DRIVE FC 200 SERIES
Product View (Switch) GLBL Global (Standard)
Product Group FC- VLT® AQUA Drive FC-
Series 202 202
Power Rating P15K (P15K) 15 KW / 20 HP
Phase T Three phase
Mains Voltage 7 525 - 690 VAC *
Possible rating issue WARN01 Possible Rating Issue:
Enclosure E20 (E20) IP20 / Chassis
RFI Filter H4 RFI class A1 (C2)
Brake - Safe Stop U Brake chopper + Safe stop
LCP G Graphical Loc. Cont. Panel
Coating PCB C Coated PCB
Mains Option X No Mains Option
Adaptation A X Standard Cable Entries
Adaptation B X No adaptation
Software Release SXXX Latest release std. SW.
Software Language Pack X Standard Language Pack
A Option A0 PROFIBUS DP MCA 101
B Option BX No B Option
C0 Option MCO CX No C0 option
C1 Option X No C1 option
C Option Software XX No software option
D Option D0 MCB-107 24V DC backup
Frame Size B4 B4
Typecode Part 1 FC-202P15KT7E20H4UGC
Typecode Part 2 XXXSXXXXA0BXCXXXXD0
Product Catalog NO_VIEW NO VIEW
Power 160% (HO) [KW] 11
Power 110% (NO) [KW] 15
Height [mm] 516,0
Width w/ no C options [mm] 229,0
Depth [mm] 242,0
Depth with Option A/B [mm] 242,0
kVA 21.5
Power Loss NO [W] 220
Power Loss NO [W] 220
Power Loss HO [W] 150
Power Loss HO [W] 150
Continuous Current (NO) [A] 19
Intermittent Current (NO) [A] 20.9
Continuous Current (NO) [A] 18
Intermittent Current (NO) [A] 19.8
Continuous Current (HO) [A] 14
Intermittent Current (HO) [A] 22.4
Continuous Current (HO) [A] 13
Intermittent Current (HO) [A] 20.8
Calculated Gross Weight [kg] 20.9
Calculated Net Weight [kg] 19.94
ECCN EU Y901
ECCN US 3A999.a
Plant from Orderline B901
Vendor ERR01 Cannot Determine Vendor
Recommended Factory ERR01 Cannot Determine Vendor
Modelcode01 FC-202P15KT7E20H4UGC
Modelcode02 XXXSXXXXA0BXCXXXXD0
