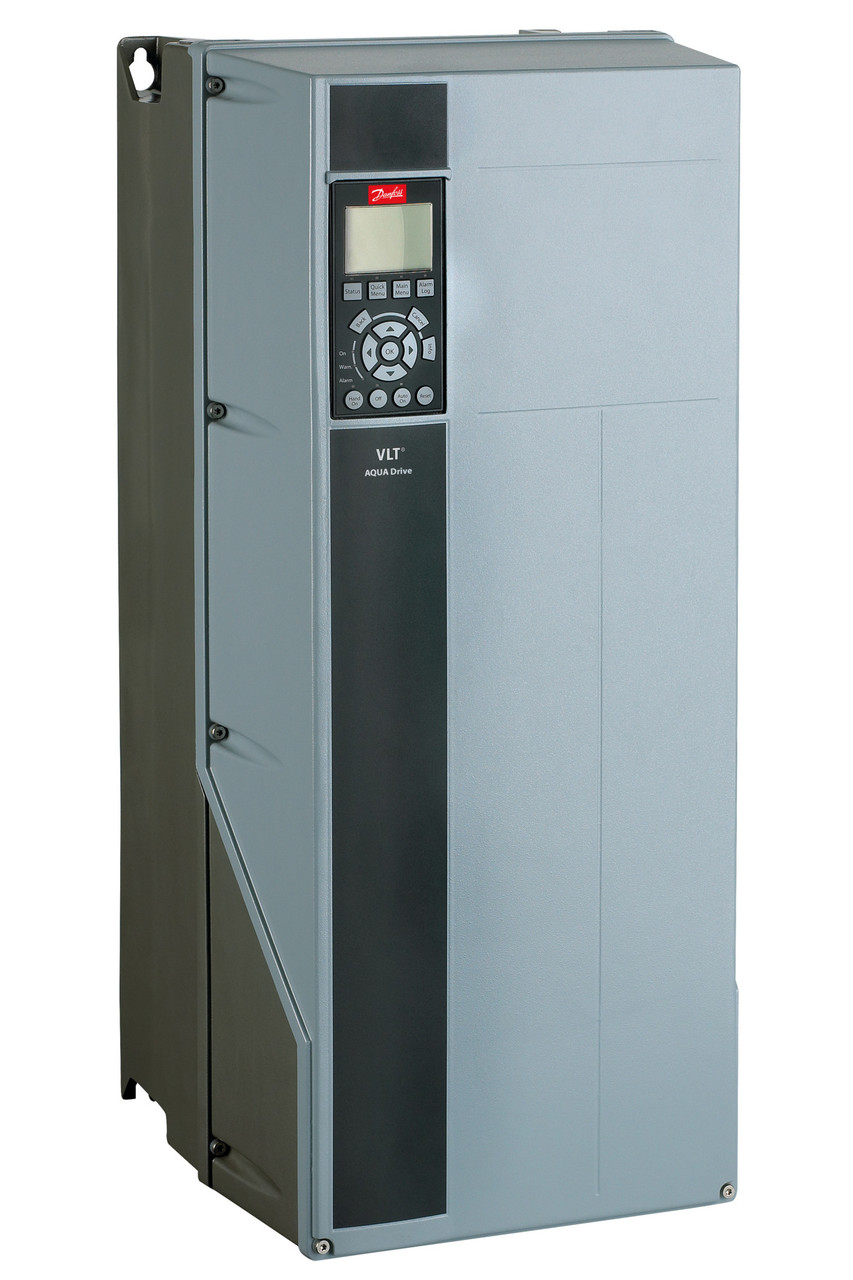

Danfoss 132X6578 FC-202P7K5T4P66H2XGXXXXLXX1XAXBYCXRXXDX

Frequency converter
FC-202P7K5T4P66H2XGXXXXLXX1XAXBYCXRXXDX
VLT® AQUA Drive FC-202
(P7K5) 7.5 KW / 10 HP, Three phase
380 - 480 VAC, (P66) IP66 / NEMA 4X Backplate
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Cascade controller 2.0
Frame: A5
MCB-113 Ext. Relay Card, No D option
No A Option, MCO-101 Ext. Cascade Ctrl
Gross weight 14.64 kg
Net weight 14.02 kg
Volume 0 l
EAN 5715253215976
VLT® AQUA DRIVE FC 200 SERIES
Product View (Switch) NAMC North America (Regional)
Product Group FC- VLT® AQUA Drive FC-
Series 202 202
Power Rating P7K5 (P7K5) 7.5 KW / 10 HP
Phase T Three phase
Mains Voltage 4 380 - 480 VAC
Enclosure P66 (P66) IP66 / NEMA 4X Backplate
RFI Filter H2 RFI Filter
Brake - Safe Stop X No brake chopper
LCP G Graphical Loc. Cont. Panel
Coating PCB X Not coated PCB
Mains Option X No Mains Option
Adaptation A X Standard Cable Entries
Adaptation B X No adaptation
Software Release LXX1 Cascade controller 2.0
Software Language Pack X Standard Language Pack
A Option AX No A Option
B Option BY MCO-101 Ext. Cascade Ctrl
C0 Option MCO CX No C0 option
C1 Option R MCB-113 Ext. Relay Card
C Option Software XX No software option
D Option DX No D option
Frame Size A5 A5
Typecode Part 1 FC-202P7K5T4P66H2XGX
Typecode Part 2 XXXLXX1XAXBYCXRXXDX
Product Catalog NO_VIEW NO VIEW
Height [mm] 420,0
Width w/ no C options [mm] 242,0
Depth [mm] 200,0
Depth with Option A/B [mm] 200,0
Power Loss NO [W] 225
Power Loss NO [W] 225
Power Loss HO [W] 225
Power Loss HO [W] 225
Calculated Gross Weight [kg] 14.64
Calculated Net Weight [kg] 14.02
ECCN EU Y901
ECCN US 3A999.a
Plant from Orderline F605
Vendor ERR01 Cannot Determine Vendor
Recommended Factory ERR01 Cannot Determine Vendor
Modelcode01 FC-202P7K5T4P66H2XGX
Modelcode02 XXXLXX1XAXBYCXRXXDX
