Frequency converter
FC-202P22KT7P66H2XGC1SXSXXXXANBXCXXXXDX

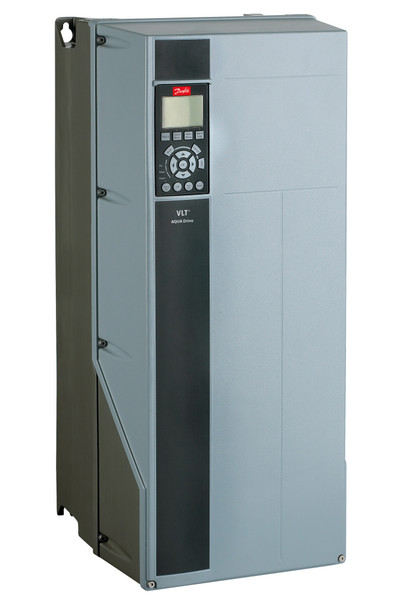

VLT® AQUA Drive FC-202
(P22K) 22 KW / 30 HP, Three phase
525 - 690 VAC *, (P66) IP66 / NEMA 4X Backplate
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect
Latest release std. SW.
Frame: B2
No C1 option, No D option
EtherNet/IP MCA 121, No B Option
Gross weight 29.21 kg
Net weight 28.26 kg
Volume 144.67 l
EAN 5715253126388
VLT® AQUA DRIVE FC 200 SERIES
Product View (Switch) NAMC North America (Regional)
Product Group FC- VLT® AQUA Drive FC-
Series 202 202
Power Rating P22K (P22K) 22 KW / 30 HP
Phase T Three phase
Mains Voltage 7 525 - 690 VAC *
Possible rating issue WARN01 Possible Rating Issue:
Enclosure P66 (P66) IP66 / NEMA 4X Backplate
RFI Filter H2 RFI Filter
Brake - Safe Stop X No brake chopper
LCP G Graphical Loc. Cont. Panel
Coating PCB C Coated PCB
Mains Option 1 Mains Disconnect
Adaptation A S Smooth imperial cable entr
Adaptation B X No adaptation
Software Release SXXX Latest release std. SW.
Software Language Pack X Standard Language Pack
A Option AN EtherNet/IP MCA 121
B Option BX No B Option
C0 Option MCO CX No C0 option
C1 Option X No C1 option
C Option Software XX No software option
D Option DX No D option
Frame Size B2 B2
Typecode Part 1 FC-202P22KT7P66H2XGC
Typecode Part 2 1SXSXXXXANBXCXXXXDX
Product Catalog NO_VIEW NO VIEW
Height [mm] 664,0
Width w/ no C options [mm] 243,0
Depth [mm] 261,0
Depth with Option A/B [mm] 261,0
Power Loss NO [W] 370
Power Loss NO [W] 370
Power Loss HO [W] 300
Power Loss HO [W] 300
Calculated Gross Weight [kg] 29.21
Calculated Net Weight [kg] 28.26
ECCN EU Y901
ECCN US 3A999.a
Plant from Orderline F605
Vendor ERR01 Cannot Determine Vendor
Recommended Factory ERR01 Cannot Determine Vendor
Modelcode01 FC-202P22KT7P66H2XGC
Modelcode02 1SXSXXXXANBXCXXXXDX
