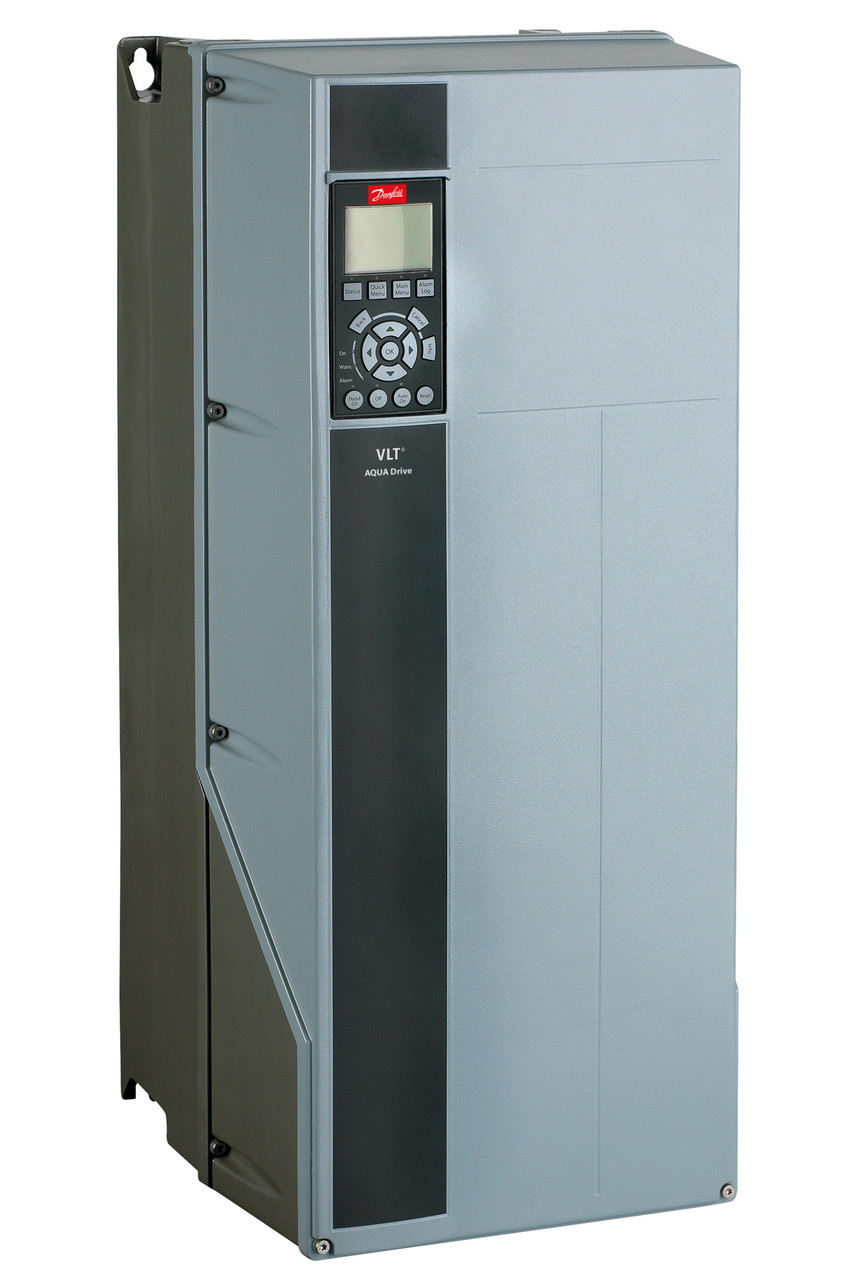

Danfoss 132H5971 FC-202P22KT2E20H2XGXXXXSXXXXAXB0CX5XXDX

Frequency converter
FC-202P22KT2E20H2XGXXXXSXXXXAXB0CX5XXDX
VLT® AQUA Drive FC-202
(P22K) 22 KW / 30 HP, Three phase
200 - 240 VAC, (E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
Frame: C3
MCO-102 Ad Cascade Control, No D option
No A Option, MCB-109 I/O, RTC Back-up
Gross weight 34.08 kg
Net weight 32.73 kg
Volume 144.67 l
EAN 5714853350476
VLT® AQUA DRIVE FC 200 SERIES
Product View (Switch) GLBL Global (Standard)
Product Group FC- VLT® AQUA Drive FC-
Series 202 202
Power Rating P22K (P22K) 22 KW / 30 HP
Phase T Three phase
Mains Voltage 2 200 - 240 VAC
Enclosure E20 (E20) IP20 / Chassis
RFI Filter H2 RFI Filter
Brake - Safe Stop X No brake chopper
LCP G Graphical Loc. Cont. Panel
Coating PCB X Not coated PCB
Mains Option X No Mains Option
Adaptation A X Standard Cable Entries
Adaptation B X No adaptation
Software Release SXXX Latest release std. SW.
Software Language Pack X Standard Language Pack
A Option AX No A Option
B Option B0 MCB-109 I/O, RTC Back-up
C0 Option MCO CX No C0 option
C1 Option 5 MCO-102 Ad Cascade Control
C Option Software XX No software option
D Option DX No D option
Frame Size C3 C3
Typecode Part 1 FC-202P22KT2E20H2XGX
Typecode Part 2 XXXSXXXXAXB0CX5XXDX
Product Catalog GLBL Global (Standard)
Power 150% (HO) [KW] 18.5
Power 110% (NO) [KW] 22
Height [mm] 550,0
Width w/ no C options [mm] 308,0
Depth [mm] 333,0
Depth with Option A/B [mm] 333,0
kVA 31.7
Power Loss NO [W] 845
Power Loss HO [W] 740
Continuous Current (NO) [A] 88
Intermittent Current (NO) [A] 96.8
Calculated Gross Weight [kg] 34.08
Calculated Net Weight [kg] 32.73
ECCN EU Y901
ECCN US 3A999.a
Plant from Orderline B901
Vendor ERR01 Cannot Determine Vendor
Recommended Factory ERR01 Cannot Determine Vendor
Modelcode01 FC-202P22KT2E20H2XGX
Modelcode02 XXXSXXXXAXB0CX5XXDX
