| Gross weight | 69 Kilogram |
| Net weight | 54 Kilogram |
| Volume | 345.5 Liter |
| EAN | 5702424586485 |
| Gross weight | 69 Kilogram |
| Net weight | 54 Kilogram |
| Volume | 345.5 Liter |
| EAN | 5702424586485 |
| Air flow @ 50Hz [m³/h] | 3300 m³/h |
| Applications | MBP |
| Approval | CE |
| Capacity control | Fixed speed |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compressor model | DS26T3 |
| Compressor power supply [V] | 400/3/50 |
| Condenser Coil Internal Volume [L] | 0.58 L |
| Condenser type | D7 |
| Condenser volume (L) | 0.58 |
| Connection type | Solder |
| Contain batteries | No |
| Description | OP-MSTM026DSW09E |
| Electrical code | E |
| EU RoHS compliance | Out of scope |

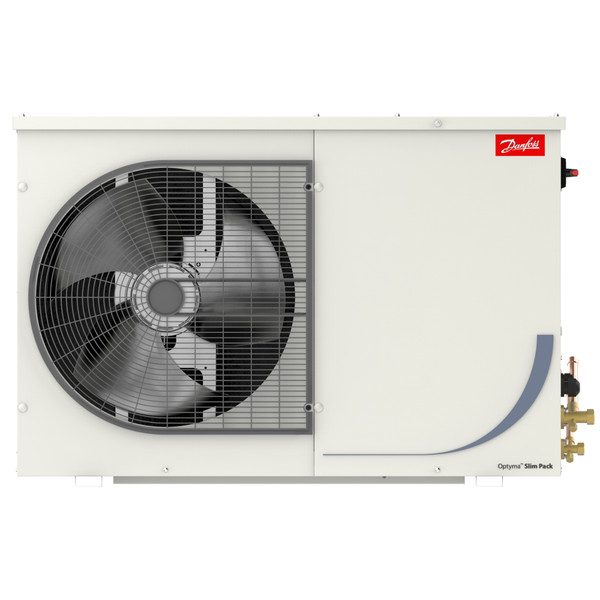

| Family | Optyma™ Slim Pack |
| Fan blade size [mm] | 450 mm |
| Fan cowl/grill type | B2 |
| Fan current @ 50Hz [A] | 0.47 A |
| Fan diameter [mm] | 450 mm |
| Fan power consumption @ 50Hz [W] | 110 W |
| Fan power output @ 50Hz [W] | 68 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Filter Drier Volume (L) | 0.17 |
| Frequency [Hz] | 50 Hz |
| High value of nominal voltage at 50Hz [V] | 440 V |
| Length [mm] | 464 mm |
| Liquid line connection [in] | 1/2 in |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| MBP Cooling capacity [kW] (R449A) | 2.45 kW |
| MCC | 4.8 A |
| Min fuse rating [A] | 6 A |
| Model number | OP-MSTM026DSW09E |
| No. of phases (compressor) | 3 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Phase | 3 |
| Product group | Condensing Units |
| Product Name Description | Package unit |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7) N,N-dimethylacetamide (CAS no. 127-19-5) |
| Receiver approval |
CE EAC |
| Receiver type | Vertical |
| Receiver volume [L] | 3.4 L |
| Refrigerants |
R404A R448A R449A R452A R454C R455A |
| SCIP dossier no. | 909c64e4-e03b-4416-9d18-aed12abdd98a |
| SCIP dossier product name | OPTYMA W09 |
| Segment usage | Medium Back Pressure |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 39 dBA |
| Suction connection size [in] | 1/2 in |
| Total height [mm] | 690 mm |
| Type | Optyma™ Slim Pack W09 (A2L) |
| UK RoHS compliance | Out of scope |
| Version | W09 |
| Voltage 50Hz [V] | 380 V |
| Voltage 50Hz [V] [Max] | 440 V |
| Volume (L) | 0.097 L |
| Width [mm] | 1079 mm |
| Air flow @ 50Hz [m³/h] | 3300 m³/h |
| Applications | MBP |
| Approval | CE |
| Capacity control | Fixed speed |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compressor model | DS26T3 |
| Compressor power supply [V] | 400/3/50 |
| Condenser Coil Internal Volume [L] | 0.58 L |
| Condenser type | D7 |
| Condenser volume (L) | 0.58 |
| Connection type | Solder |
| Contain batteries | No |
| Description | OP-MSTM026DSW09E |
| Electrical code | E |
| EU RoHS compliance | Out of scope |
| Family | Optyma™ Slim Pack |
| Fan blade size [mm] | 450 mm |
| Fan cowl/grill type | B2 |
| Fan current @ 50Hz [A] | 0.47 A |
| Fan diameter [mm] | 450 mm |
| Fan power consumption @ 50Hz [W] | 110 W |
| Fan power output @ 50Hz [W] | 68 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Filter Drier Volume (L) | 0.17 |
| Frequency [Hz] | 50 Hz |
| High value of nominal voltage at 50Hz [V] | 440 V |
| Length [mm] | 464 mm |
| Liquid line connection [in] | 1/2 in |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| MBP Cooling capacity [kW] (R449A) | 2.45 kW |
| MCC | 4.8 A |
| Min fuse rating [A] | 6 A |
| Model number | OP-MSTM026DSW09E |
| No. of phases (compressor) | 3 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Phase | 3 |
| Product group | Condensing Units |
| Product Name Description | Package unit |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7) N,N-dimethylacetamide (CAS no. 127-19-5) |
| Receiver approval |
CE EAC |
| Receiver type | Vertical |
| Receiver volume [L] | 3.4 L |
| Refrigerants |
R404A R448A R449A R452A R454C R455A |
| SCIP dossier no. | 909c64e4-e03b-4416-9d18-aed12abdd98a |
| SCIP dossier product name | OPTYMA W09 |
| Segment usage | Medium Back Pressure |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 39 dBA |
| Suction connection size [in] | 1/2 in |
| Total height [mm] | 690 mm |
| Type | Optyma™ Slim Pack W09 (A2L) |
| UK RoHS compliance | Out of scope |
| Version | W09 |
| Voltage 50Hz [V] | 380 V |
| Voltage 50Hz [V] [Max] | 440 V |
| Volume (L) | 0.097 L |
| Width [mm] | 1079 mm |
