| Gross weight | 97 Kilogram |
| Net weight | 78 Kilogram |
| Volume | 628.56 Liter |
| EAN | 5702428562065 |
| Gross weight | 97 Kilogram |
| Net weight | 78 Kilogram |
| Volume | 628.56 Liter |
| EAN | 5702428562065 |
| Air flow @ 50Hz [m³/h] | 5200 m³/h |
| Applications | LBP |
| China RoHS compliance | Out of scope |
| Compressor model | LLZ015T4 |
| Compressor power supply [V] | 400/3/50 |
| Condenser Coil Internal Volume [L] | 1.62 mm³ |
| Condenser type | G7 |
| Connection type | Solder |
| Contain batteries | No |

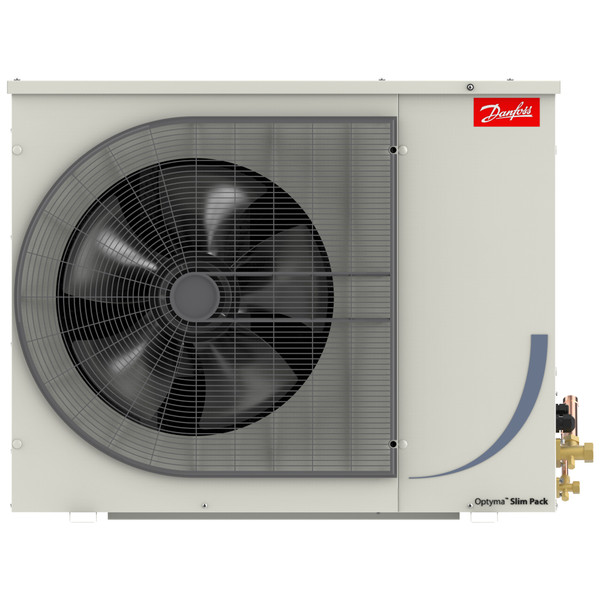

| Description | OP-LSQM084LLW05E |
| Electrical code | E |
| EU RoHS compliance | Out of scope |
| Family | Optyma™ Slim Pack |
| Fan blade size [mm] | 500 mm |
| Fan cowl/grill type | B3 |
| Fan current @ 50Hz [A] | 0.96 A |
| Fan diameter [mm] | 500 mm |
| Fan power consumption @ 50Hz [W] | 220 W |
| Fan power output @ 50Hz [W] | 130 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Frequency [Hz] | 50 Hz |
| High value of nominal voltage at 50Hz [V] | 415 V |
| In scope of WEEE | Yes |
| LBP Cooling capacity [kW] (R452A) | 3.32 kW |
| Length [mm] | 464 mm |
| Liquid line connection [in] | 1/2 in |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| MCC | 15 A |
| Min fuse rating [A] | 20 A |
| Model number | OP-LSQM084LLW05E |
| No. of phases (compressor) | 3 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Phase | 3 |
| Product group | Condensing Units |
| Product Name Description | Package unit |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7) N,N-dimethylacetamide (CAS no. 127-19-5) |
| Receiver approval | CE |
| Receiver volume [L] | 6.2 L |
| Refrigerants |
R404A R452A R507A |
| RLA | 88.5 A |
| SCIP dossier no. | 517dd61a-f0c7-4249-8639-17b34a9dfce2 |
| SCIP dossier product name | OPTYMA W05 |
| Segment usage | Low Back Pressure |
| Sound power @ 50Hz [db(A)] | 75 dBA |
| Sound pressure level 50Hz (@1 m distance) [db(A)] | 64 dBA |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 44 dBA |
| Suction connection size [in] | 3/4 in |
| Technology | Scroll |
| Total height [mm] | 540 mm |
| Type | Optyma™ Slim Pack W05 |
| UK RoHS compliance | Out of scope |
| Version | W05 |
| Voltage 50Hz [V] | 380 V |
| Voltage 50Hz [V] [Max] | 415 V |
| Width [mm] | 1105 mm |
| Air flow @ 50Hz [m³/h] | 5200 m³/h |
| Applications | LBP |
| China RoHS compliance | Out of scope |
| Compressor model | LLZ015T4 |
| Compressor power supply [V] | 400/3/50 |
| Condenser Coil Internal Volume [L] | 1.62 mm³ |
| Condenser type | G7 |
| Connection type | Solder |
| Contain batteries | No |
| Description | OP-LSQM084LLW05E |
| Electrical code | E |
| EU RoHS compliance | Out of scope |
| Family | Optyma™ Slim Pack |
| Fan blade size [mm] | 500 mm |
| Fan cowl/grill type | B3 |
| Fan current @ 50Hz [A] | 0.96 A |
| Fan diameter [mm] | 500 mm |
| Fan power consumption @ 50Hz [W] | 220 W |
| Fan power output @ 50Hz [W] | 130 W |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Frequency [Hz] | 50 Hz |
| High value of nominal voltage at 50Hz [V] | 415 V |
| In scope of WEEE | Yes |
| LBP Cooling capacity [kW] (R452A) | 3.32 kW |
| Length [mm] | 464 mm |
| Liquid line connection [in] | 1/2 in |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| MCC | 15 A |
| Min fuse rating [A] | 20 A |
| Model number | OP-LSQM084LLW05E |
| No. of phases (compressor) | 3 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Phase | 3 |
| Product group | Condensing Units |
| Product Name Description | Package unit |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) BIS(2-ETHYLHEXYL) PHTHALATE (CAS no. 117-81-7) N,N-dimethylacetamide (CAS no. 127-19-5) |
| Receiver approval | CE |
| Receiver volume [L] | 6.2 L |
| Refrigerants |
R404A R452A R507A |
| RLA | 88.5 A |
| SCIP dossier no. | 517dd61a-f0c7-4249-8639-17b34a9dfce2 |
| SCIP dossier product name | OPTYMA W05 |
| Segment usage | Low Back Pressure |
| Sound power @ 50Hz [db(A)] | 75 dBA |
| Sound pressure level 50Hz (@1 m distance) [db(A)] | 64 dBA |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 44 dBA |
| Suction connection size [in] | 3/4 in |
| Technology | Scroll |
| Total height [mm] | 540 mm |
| Type | Optyma™ Slim Pack W05 |
| UK RoHS compliance | Out of scope |
| Version | W05 |
| Voltage 50Hz [V] | 380 V |
| Voltage 50Hz [V] [Max] | 415 V |
| Width [mm] | 1105 mm |
