| Gross weight | 22.447 Kilogram |
| Net weight | 22.447 Kilogram |
| Volume | 58.618 Liter |
| EAN | 5702428393027 |
| Gross weight | 22.447 Kilogram |
| Net weight | 22.447 Kilogram |
| Volume | 58.618 Liter |
| EAN | 5702428393027 |
| Applications |
HBP LBP MBP |
| Approval | UL |
| China RoHS compliance | Out of scope |
| Compressor model | SC12G |
| Compressor power supply [V] | 115/1/60 |
| Condenser type | BG_3 |
| Contain batteries | No |

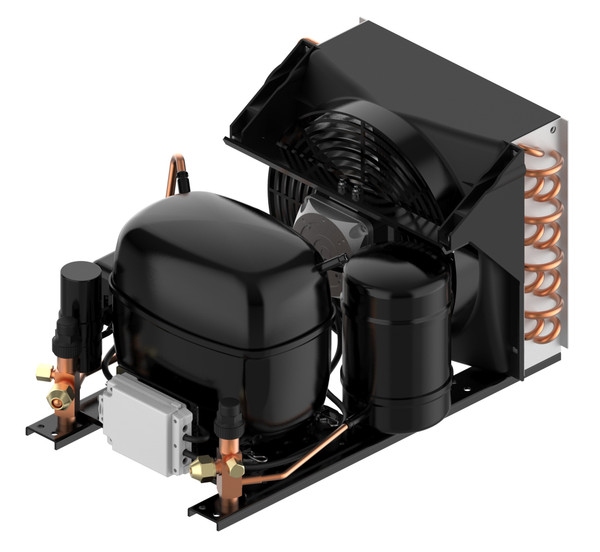

| Description | SC12GXT2 |
| Electrical code | B |
| EU RoHS compliance | Out of scope |
| Family | Optyma™ |
| Fan power supply [V/Ph/Hz] | 115/1/60 |
| Frequency [Hz] | 60 Hz |
| High value of nominal voltage at 60Hz [V] | 120 V |
| Length [mm] | 444 mm |
| Low value of nominal voltage at 60Hz [V] | 100 V |
| Model number | SC12GXT2 |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Phase | 1 |
| Product group | Condensing Units |
| Product Name Description | Bare unit |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a |
| SCIP dossier no. | 8264857f-8840-4808-9cae-d0c1ab415ef5 |
| SCIP dossier product name | OPTYMA A00 A04 A09 A10 A11 |
| Segment usage |
Low Back Pressure Medium Back Pressure Universal |
| Technology | Reciprocating |
| Total height [mm] | 256 mm |
| Type | Optyma™ T2 |
| UK RoHS compliance | Out of scope |
| UL evaluated | Yes |
| Version | T2 |
| Width [mm] | 321 mm |
| Applications |
HBP LBP MBP |
| Approval | UL |
| China RoHS compliance | Out of scope |
| Compressor model | SC12G |
| Compressor power supply [V] | 115/1/60 |
| Condenser type | BG_3 |
| Contain batteries | No |
| Description | SC12GXT2 |
| Electrical code | B |
| EU RoHS compliance | Out of scope |
| Family | Optyma™ |
| Fan power supply [V/Ph/Hz] | 115/1/60 |
| Frequency [Hz] | 60 Hz |
| High value of nominal voltage at 60Hz [V] | 120 V |
| Length [mm] | 444 mm |
| Low value of nominal voltage at 60Hz [V] | 100 V |
| Model number | SC12GXT2 |
| No. of phases (compressor) | 1 |
| No. of phases (fan) | 1 |
| Number of fans | 1 |
| Phase | 1 |
| Product group | Condensing Units |
| Product Name Description | Bare unit |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a |
| SCIP dossier no. | 8264857f-8840-4808-9cae-d0c1ab415ef5 |
| SCIP dossier product name | OPTYMA A00 A04 A09 A10 A11 |
| Segment usage |
Low Back Pressure Medium Back Pressure Universal |
| Technology | Reciprocating |
| Total height [mm] | 256 mm |
| Type | Optyma™ T2 |
| UK RoHS compliance | Out of scope |
| UL evaluated | Yes |
| Version | T2 |
| Width [mm] | 321 mm |
