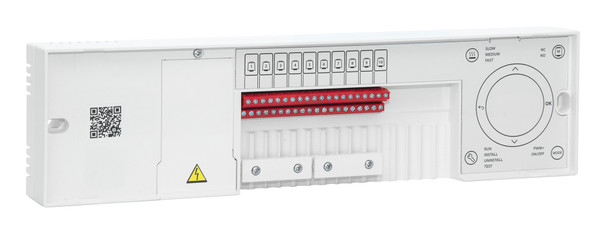

OTA, for 24V actuators, 10 channels, upgradeable to wireless, Wireless/Wired 24V
| Gross weight |
1.354 Kilogram |
| Net weight |
1.354 Kilogram |
| Volume |
4.221 Liter |
| EAN |
5702424048846 |
| Gross weight |
1.354 Kilogram |
| Net weight |
1.354 Kilogram |
| Volume |
4.221 Liter |
| EAN |
5702424048846 |
| Actuator on radiator |
Yes |
| Adaptive learning |
Yes |
| App control enabled |
Yes |
| Automatic balancing |
Yes |
| Away input |
Yes |
| Boiler relay |
Yes |
| Capacitive touch |
Yes |
| China RoHS compliance |
Out of scope |
| Cooling input |
Yes |
| Description |
OTA, for 24V actuators, 10 channels, upgradeable to wireless |
| Dual mode |
Yes |
| EEE category |
5 small equipment (any external dimension 50 cm) |
| EU RoHS compliance |
Yes |
| EU RoHS exemption clause |
No |
| Fits into switch frames |
No |
| Heating control type |
Master Controller |
| In scope of WEEE |
Yes |
| Installation |
On-wall |
| Interfaces |
Wireless/Wired 24V |
| IP protection class |
IP20 |
| Masters connected [Max] |
3 |
| NC/NO |
Yes |
| Number of actuators max |
10 |
| Number of channels |
10 |
| Number of outputs [pc] |
10 pc |
| Output voltage [V] AC |
24 V |
| Output voltage [V] DC |
24 V |
| Power per output [W] [Max] |
3 W |
| Product group |
Floor Heating Controls |
| Pump relay |
Yes |
| PWM |
Yes |
| REACH Candidate List substances |
No |
| Suitable for |
24V actuators |
| Supply voltage [V] |
230 V |
| Temperature control |
Yes |
| Type |
Danfoss Icon™ 24V MC |
| UNSPSC CODE |
40101830 |
| Upgradable to wireless |
Yes |
| Usage |
Upgradeable |
| Valve excercise |
Yes |
| Actuator on radiator |
Yes |
| Adaptive learning |
Yes |
| App control enabled |
Yes |
| Automatic balancing |
Yes |
| Away input |
Yes |
| Boiler relay |
Yes |
| Capacitive touch |
Yes |
| China RoHS compliance |
Out of scope |
| Cooling input |
Yes |
| Description |
OTA, for 24V actuators, 10 channels, upgradeable to wireless |
| Dual mode |
Yes |
| EEE category |
5 small equipment (any external dimension 50 cm) |
| EU RoHS compliance |
Yes |
| EU RoHS exemption clause |
No |
| Fits into switch frames |
No |
| Heating control type |
Master Controller |
| In scope of WEEE |
Yes |
| Installation |
On-wall |
| Interfaces |
Wireless/Wired 24V |
| IP protection class |
IP20 |
| Masters connected [Max] |
3 |
| NC/NO |
Yes |
| Number of actuators max |
10 |
| Number of channels |
10 |
| Number of outputs [pc] |
10 pc |
| Output voltage [V] AC |
24 V |
| Output voltage [V] DC |
24 V |
| Power per output [W] [Max] |
3 W |
| Product group |
Floor Heating Controls |
| Pump relay |
Yes |
| PWM |
Yes |
| REACH Candidate List substances |
No |
| Suitable for |
24V actuators |
| Supply voltage [V] |
230 V |
| Temperature control |
Yes |
| Type |
Danfoss Icon™ 24V MC |
| UNSPSC CODE |
40101830 |
| Upgradable to wireless |
Yes |
| Usage |
Upgradeable |
| Valve excercise |
Yes |
