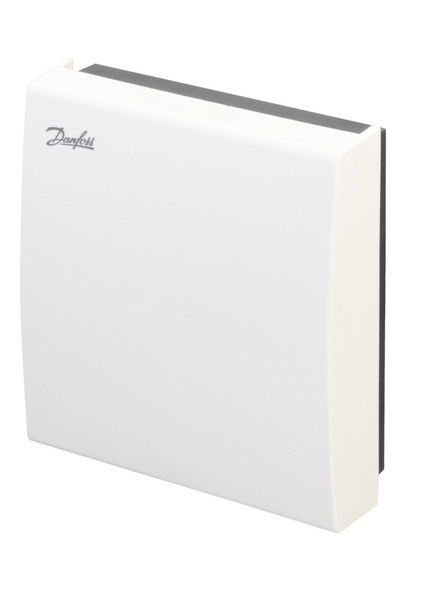

FH-WP Room Thermostat 24V Tamperproof, Wired 24V
| Gross weight |
0.088 Kilogram |
| Net weight |
0.088 Kilogram |
| Volume |
0.268 Liter |
| EAN |
5702420052984 |
| Gross weight |
0.088 Kilogram |
| Net weight |
0.088 Kilogram |
| Volume |
0.268 Liter |
| EAN |
5702420052984 |
| Actuator on radiator |
No |
| Adaptive learning |
No |
| Away input |
No |
| Capacitive touch |
No |
| Cooling input |
No |
| Description |
FH-WP Room Thermostat 24V Tamperproof |
| Dual mode |
No |
| EEE category |
5 small equipment (any external dimension 50 cm) |
| EU RoHS compliance |
Yes |
| EU RoHS exemption clause |
No |
| Fits into switch frames |
No |
| Floor sensor enabled |
No |
| Frequency range [Hz] [Max] |
60 Hz |
| Frequency range [Hz] [Min] |
50 Hz |
| Heating control type |
Room Thermostat |
| In scope of WEEE |
Yes |
| In-wall |
No |
| Installation |
On-wall |
| Interfaces |
Wired 24V |
| IP protection class |
IP20 |
| NC/NO |
NC |
| Noiseless switching |
Yes |
| Number of actuators max |
2 |
| On-wall |
Yes |
| Output voltage [V] AC |
24 V |
| Product group |
Floor Heating Controls |
| PWM |
No |
| REACH Candidate List substances |
No |
| Scheduling |
No |
| Stem position |
Public |
| Suitable for |
24V actuators |
| Supply voltage [V] |
24 V |
| Tamper proof |
yes |
| Temperature control |
Yes |
| Temperature limitation |
Yes |
| Temperature set-back button |
No |
| Temperature setting range [°C] [Max] |
30 °C |
| Temperature setting range [°C] [Min] |
6 °C |
| Thermal feedback |
No |
| Type |
FH Room Thermostats |
| Usage |
Tamperproof |
| Valve excercise |
No |
| Actuator on radiator |
No |
| Adaptive learning |
No |
| Away input |
No |
| Capacitive touch |
No |
| Cooling input |
No |
| Description |
FH-WP Room Thermostat 24V Tamperproof |
| Dual mode |
No |
| EEE category |
5 small equipment (any external dimension 50 cm) |
| EU RoHS compliance |
Yes |
| EU RoHS exemption clause |
No |
| Fits into switch frames |
No |
| Floor sensor enabled |
No |
| Frequency range [Hz] [Max] |
60 Hz |
| Frequency range [Hz] [Min] |
50 Hz |
| Heating control type |
Room Thermostat |
| In scope of WEEE |
Yes |
| In-wall |
No |
| Installation |
On-wall |
| Interfaces |
Wired 24V |
| IP protection class |
IP20 |
| NC/NO |
NC |
| Noiseless switching |
Yes |
| Number of actuators max |
2 |
| On-wall |
Yes |
| Output voltage [V] AC |
24 V |
| Product group |
Floor Heating Controls |
| PWM |
No |
| REACH Candidate List substances |
No |
| Scheduling |
No |
| Stem position |
Public |
| Suitable for |
24V actuators |
| Supply voltage [V] |
24 V |
| Tamper proof |
yes |
| Temperature control |
Yes |
| Temperature limitation |
Yes |
| Temperature set-back button |
No |
| Temperature setting range [°C] [Max] |
30 °C |
| Temperature setting range [°C] [Min] |
6 °C |
| Thermal feedback |
No |
| Type |
FH Room Thermostats |
| Usage |
Tamperproof |
| Valve excercise |
No |
