| Gross weight | 0.433 Kilogram |
| Net weight | 0.377 Kilogram |
| Volume | 0.854 Liter |
| Gross weight | 0.433 Kilogram |
| Net weight | 0.377 Kilogram |
| Volume | 0.854 Liter |
| Actuator output load [VA] | 15 VA |
| Ambient humidity [% RH] [Max] | 95 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | -5 °C |
| Application source | On-board |
| Approval |
CE EAC UKCA UA |
| CE evaluated | Yes |
| Communications | Modbus (galvanically isolated) |
| Contain batteries | No |

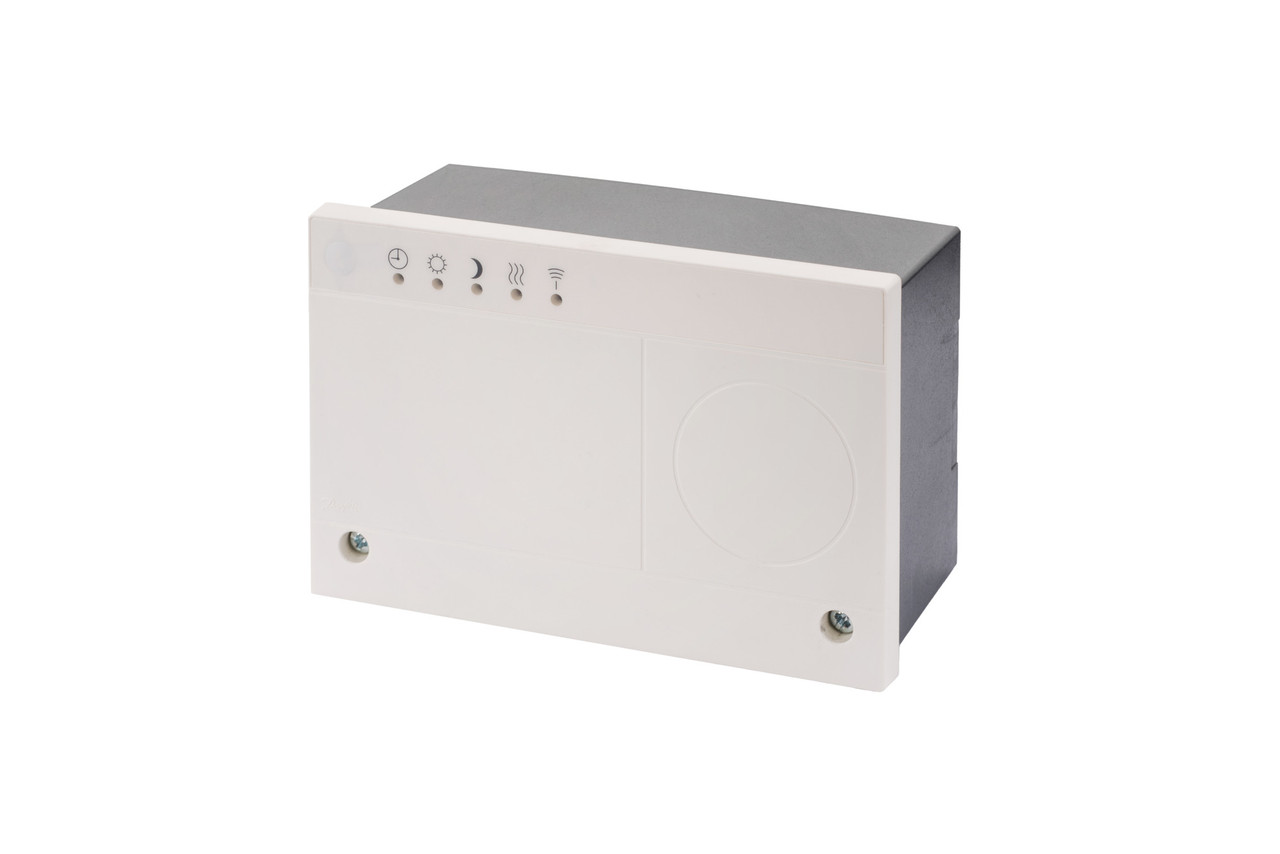

| Description | ECL Comfort 120, I-pack |
| EU RoHS compliance | Yes with exemptions |
| General functions |
Alarm functions Circulation pump exercise Control valve exercise External override facility Frost protection Master - Slave network Remote control connection |
| Grade of enclosure | IP41 |
| Heat curve setting for heating circuit |
6 points Slope |
| Number of 3-point motor control outputs | 1 |
| Number of comfort periods per day | 3 |
| Number of digital inputs | 1 |
| Number of heating circuits | 1 |
| Number of pumps | 1 |
| Number of relay outputs | 1 |
| Number of Sensor inputs | 4 pc |
| Power consumption [W] | 3 W |
| Product group | Electronic controllers |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) Diboron trioxide (B2O3, CAS no. 1303-86-2) Lead titanium trioxide (CAS no. 12060-00-3) Disodium octaborate (CAS no. 12008-41-2) |
| Relay output inductive load [A] | 2 A |
| Relay output ohmic load [A] | 3 A |
| Relay output voltage [V] AC | 230 V |
| SCIP dossier no. | 63ff497e-8c51-4844-9537-63d1cd363aac |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] AC [max] | 244 V |
| Supply voltage [V] AC [min] | 207 V |
| Supply voltage frequency [Hz] | 50 Hz |
| Temperature sensors type | Pt 1000 |
| Time switch power backup [h] | 10 h |
| Time switch type | Week |
| Type | ECL Comfort 120 |
| User input type | Push buttons |
| Actuator output load [VA] | 15 VA |
| Ambient humidity [% RH] [Max] | 95 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | -5 °C |
| Application source | On-board |
| Approval |
CE EAC UKCA UA |
| CE evaluated | Yes |
| Communications | Modbus (galvanically isolated) |
| Contain batteries | No |
| Description | ECL Comfort 120, I-pack |
| EU RoHS compliance | Yes with exemptions |
| General functions |
Alarm functions Circulation pump exercise Control valve exercise External override facility Frost protection Master - Slave network Remote control connection |
| Grade of enclosure | IP41 |
| Heat curve setting for heating circuit |
6 points Slope |
| Number of 3-point motor control outputs | 1 |
| Number of comfort periods per day | 3 |
| Number of digital inputs | 1 |
| Number of heating circuits | 1 |
| Number of pumps | 1 |
| Number of relay outputs | 1 |
| Number of Sensor inputs | 4 pc |
| Power consumption [W] | 3 W |
| Product group | Electronic controllers |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) Diboron trioxide (B2O3, CAS no. 1303-86-2) Lead titanium trioxide (CAS no. 12060-00-3) Disodium octaborate (CAS no. 12008-41-2) |
| Relay output inductive load [A] | 2 A |
| Relay output ohmic load [A] | 3 A |
| Relay output voltage [V] AC | 230 V |
| SCIP dossier no. | 63ff497e-8c51-4844-9537-63d1cd363aac |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] AC [max] | 244 V |
| Supply voltage [V] AC [min] | 207 V |
| Supply voltage frequency [Hz] | 50 Hz |
| Temperature sensors type | Pt 1000 |
| Time switch power backup [h] | 10 h |
| Time switch type | Week |
| Type | ECL Comfort 120 |
| User input type | Push buttons |
