Danfoss

Danfoss 087B1183 ESMU-100, Pt 1000, Stainless steel

267.60€

Current Stock:

Quantity:

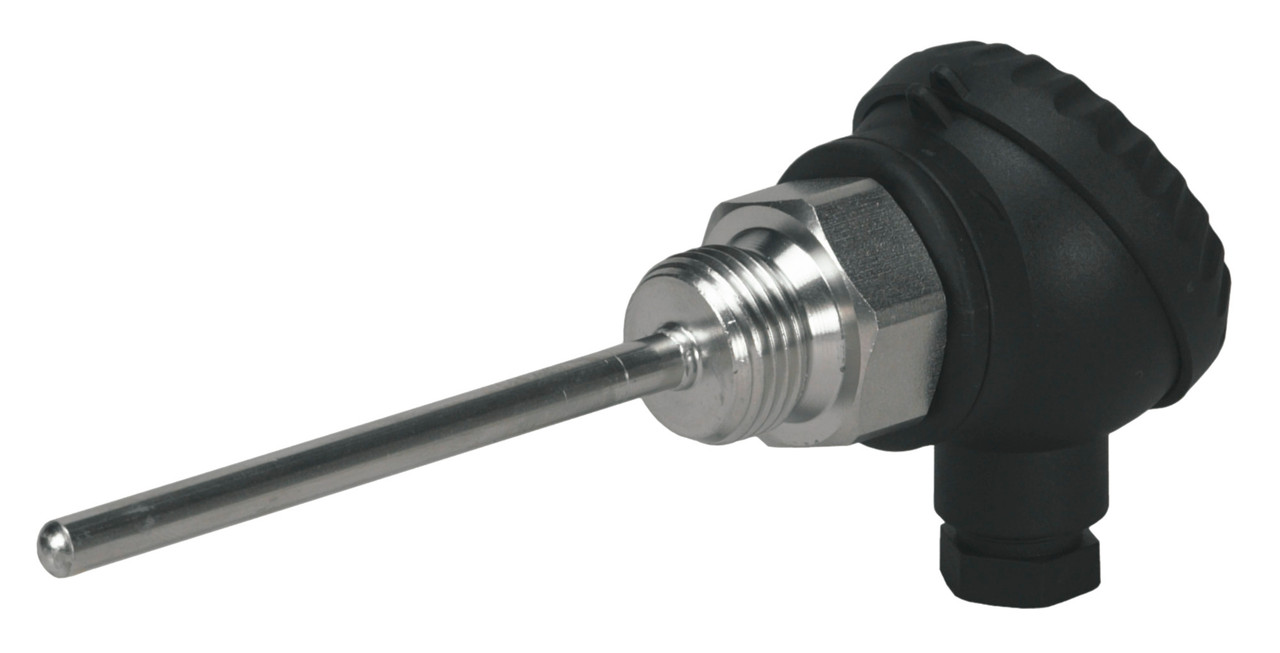

ESMU-100, Pt 1000 immersion sensor, 100 mm, stainless steel

Gross weight	0.132 Kilogram
Net weight	0.132 Kilogram

Volume	0.304 Liter
EAN	5702421064528

Body material	Stainless steel Aisi 316
China RoHS compliance	Out of scope
Contain batteries	No
Description	ESMU-100, Pt 1000 immersion sensor, 100 mm, stainless steel
Electrical connections terminals	Terminal plug for two wires in head, PG9 cable entry, supplied with product
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Grade of enclosure	IP54
Label product	Yes
Material	Stainless steel
Media temperature [°C] [Max]	140 °C

Media temperature [°C] [Min]	0 °C
Mounting version	G1/2A and washer (supplied with the product)
Pressure nominal [bar]	25 bar
Product group	Sensors
REACH Candidate List substances	No
Temperature sensor diameter [mm]	6 mm
Temperature sensor length [mm]	100 mm
Temperature sensors type	Pt 1000
Time constant	2 s (water), 7 s (air)
Type	ESMU-100
UK RoHS compliance	Out of scope

Body material	Stainless steel Aisi 316
China RoHS compliance	Out of scope
Contain batteries	No
Description	ESMU-100, Pt 1000 immersion sensor, 100 mm, stainless steel
Electrical connections terminals	Terminal plug for two wires in head, PG9 cable entry, supplied with product
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Grade of enclosure	IP54
Label product	Yes
Material	Stainless steel
Media temperature [°C] [Max]	140 °C
Media temperature [°C] [Min]	0 °C
Mounting version	G1/2A and washer (supplied with the product)
Pressure nominal [bar]	25 bar
Product group	Sensors
REACH Candidate List substances	No
Temperature sensor diameter [mm]	6 mm
Temperature sensor length [mm]	100 mm
Temperature sensors type	Pt 1000
Time constant	2 s (water), 7 s (air)
Type	ESMU-100
UK RoHS compliance	Out of scope
