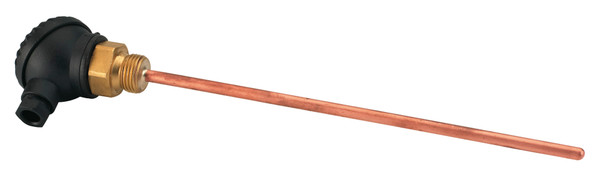

ESMU-250, Pt 1000 immersion sensor, 250 mm, copper
| Gross weight |
0.167 Kilogram |
| Net weight |
0.166 Kilogram |
| Volume |
0.371 Liter |
| EAN |
5702421064504 |
| Gross weight |
0.167 Kilogram |
| Net weight |
0.166 Kilogram |
| Volume |
0.371 Liter |
| EAN |
5702421064504 |
| Body material |
Copper |
| Contain batteries |
No |
| Description |
ESMU-250, Pt 1000 immersion sensor, 250 mm, copper |
| Electrical connections terminals |
Terminal plug for two wires in head, PG9 cable entry, supplied with product |
| EU RoHS compliance |
Yes |
| EU RoHS exemption clause |
No |
| Grade of enclosure |
IP54 |
| Label product |
Yes |
| Material |
COPPER |
| Media temperature [°C] [Max] |
140 °C |
| Media temperature [°C] [Min] |
0 °C |
| Mounting version |
G1/2A and washer (supplied with the product) |
| Pressure nominal [bar] |
25 bar |
| Product group |
Sensors |
| REACH Candidate List substances |
No |
| Temperature sensor diameter [mm] |
6.6 mm |
| Temperature sensor length [mm] |
250 mm |
| Temperature sensors type |
Pt 1000 |
| Time constant |
2 s (water), 7 s (air) |
| Type |
ESMU-250 |
| Body material |
Copper |
| Contain batteries |
No |
| Description |
ESMU-250, Pt 1000 immersion sensor, 250 mm, copper |
| Electrical connections terminals |
Terminal plug for two wires in head, PG9 cable entry, supplied with product |
| EU RoHS compliance |
Yes |
| EU RoHS exemption clause |
No |
| Grade of enclosure |
IP54 |
| Label product |
Yes |
| Material |
COPPER |
| Media temperature [°C] [Max] |
140 °C |
| Media temperature [°C] [Min] |
0 °C |
| Mounting version |
G1/2A and washer (supplied with the product) |
| Pressure nominal [bar] |
25 bar |
| Product group |
Sensors |
| REACH Candidate List substances |
No |
| Temperature sensor diameter [mm] |
6.6 mm |
| Temperature sensor length [mm] |
250 mm |
| Temperature sensors type |
Pt 1000 |
| Time constant |
2 s (water), 7 s (air) |
| Type |
ESMU-250 |
