| Gross weight | 0.528 Kilogram |
| Net weight | 0.44 Kilogram |
| Volume | 1.967 Liter |
| EAN | 5702423283385 |
| Gross weight | 0.528 Kilogram |
| Net weight | 0.44 Kilogram |
| Volume | 1.967 Liter |
| EAN | 5702423283385 |
| Additional alarm inputs max. | 5 pc |
| Application area | Capacity control |
| Approval |
CE EAC |
| Capacity control input | Pressure/ Temperature |
| Capacity control mode | NZ |
| CE evaluated | Yes |
| Communication type |
ETHER LON MODBUS |
| Compressor capacity mode | Step |
| Condenser control type | Pressure/ Temperature |
| Controller type | Pack Controller |
| Digital outputs (DO) [pc] | 10 pc |
| Display - option |
EKA 163B EKA 164B EKA 165 |
| Display on front | No |
| EU RoHS compliance | Out of scope |
| Fan capacity control | Step/ Speed |
| Fan control mode | P/PI |
| Frequency [Hz] | 50/60 Hz |
| Function | 1 Suction and 1 Condenser |
| I/O connectors max. | 29 pc |
| No.of compr. safty signals max | 1 pc |
| Number of Compressors max. | 4 pc |
| Number of fans max. | 4 pc |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Multi pack |
| Power consumption [VA] | 8 VA |
| Product accessories | Electron. control accessories |
| Product features |
Floating condenser pressure Heat recovery function Night setback P0 optimization Plugin slot |
| Product group | Compressor/condenser control |
| Product Name Description | Pack controller |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | No |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |

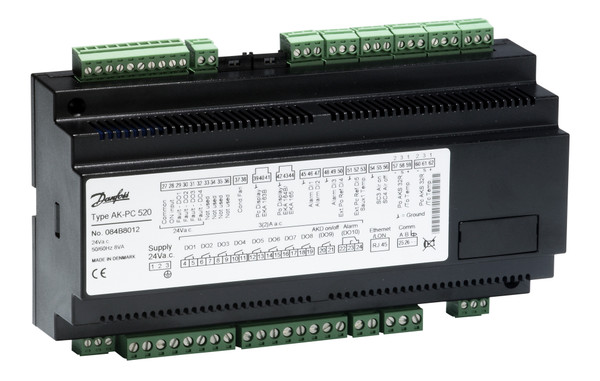

| Type | AK-PC 520 |
| UK RoHS compliance | Out of scope |
| Additional alarm inputs max. | 5 pc |
| Application area | Capacity control |
| Approval |
CE EAC |
| Capacity control input | Pressure/ Temperature |
| Capacity control mode | NZ |
| CE evaluated | Yes |
| Communication type |
ETHER LON MODBUS |
| Compressor capacity mode | Step |
| Condenser control type | Pressure/ Temperature |
| Controller type | Pack Controller |
| Digital outputs (DO) [pc] | 10 pc |
| Display - option |
EKA 163B EKA 164B EKA 165 |
| Display on front | No |
| EU RoHS compliance | Out of scope |
| Fan capacity control | Step/ Speed |
| Fan control mode | P/PI |
| Frequency [Hz] | 50/60 Hz |
| Function | 1 Suction and 1 Condenser |
| I/O connectors max. | 29 pc |
| No.of compr. safty signals max | 1 pc |
| Number of Compressors max. | 4 pc |
| Number of fans max. | 4 pc |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Multi pack |
| Power consumption [VA] | 8 VA |
| Product accessories | Electron. control accessories |
| Product features |
Floating condenser pressure Heat recovery function Night setback P0 optimization Plugin slot |
| Product group | Compressor/condenser control |
| Product Name Description | Pack controller |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | No |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Type | AK-PC 520 |
| UK RoHS compliance | Out of scope |
