| Gross weight | 0.384 Kilogram |
| Net weight | 0.317 Kilogram |
| Volume | 1.083 Liter |
| EAN | 5702428406994 |
| Gross weight | 0.384 Kilogram |
| Net weight | 0.317 Kilogram |
| Volume | 1.083 Liter |
| EAN | 5702428406994 |
| Analog inputs (AI) [pc] | 3 pc |
| Application area | Temperature control |
| Approval |
C-TICK CE EAC CMIM |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Communication type |
MODBUS Optional LON Optional MODBUS |
| Controller type | Refrig. Controller (Temp) |
| Digital inputs (DI) [pc] | 2 pc |
| Digital outputs (DO) [pc] | 4 pc |
| Display - option |
EKA 163A EKA 164A |
| Display on front | Yes |
| Division | 25 |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 50/60 Hz |
| Function | Temp, Multi appli. 4 relays |
| Further information | Alarm=More func. Fan 2nd Comp |
| Number of Compressors max. | 2 pc |
| Number of Evaporators max. | 1 pc |
| Number of Sensor inputs | 3 pc |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Multi pack |
| PFAS content [Yes/No] | No |
| Power consumption [VA] | 2.3 VA |
| Product accessories | Electron. control accessories |
| Product group | Evaporator and room control |
| Product Name Description | Refrig appliance control (TXV) |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | No |
| Sensor type | Temp.Sensors |
| Serviceable | No |
| Supply voltage [V] AC | 230 V |
| Temp. sensor support |
NTC-M2020 PTC 1000 Pt 1000 |

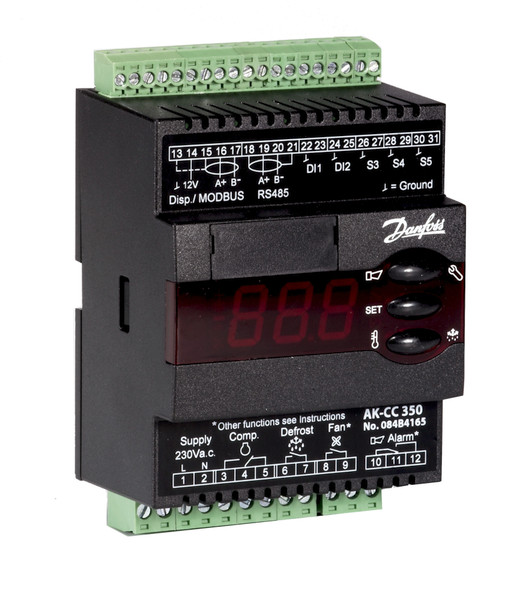

| Type | AK-CC 350 |
| UK RoHS compliance | Out of scope |
| Valve output type | EVR (TXV) |
| Analog inputs (AI) [pc] | 3 pc |
| Application area | Temperature control |
| Approval |
C-TICK CE EAC CMIM |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Communication type |
MODBUS Optional LON Optional MODBUS |
| Controller type | Refrig. Controller (Temp) |
| Digital inputs (DI) [pc] | 2 pc |
| Digital outputs (DO) [pc] | 4 pc |
| Display - option |
EKA 163A EKA 164A |
| Display on front | Yes |
| Division | 25 |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 50/60 Hz |
| Function | Temp, Multi appli. 4 relays |
| Further information | Alarm=More func. Fan 2nd Comp |
| Number of Compressors max. | 2 pc |
| Number of Evaporators max. | 1 pc |
| Number of Sensor inputs | 3 pc |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Multi pack |
| PFAS content [Yes/No] | No |
| Power consumption [VA] | 2.3 VA |
| Product accessories | Electron. control accessories |
| Product group | Evaporator and room control |
| Product Name Description | Refrig appliance control (TXV) |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | No |
| Sensor type | Temp.Sensors |
| Serviceable | No |
| Supply voltage [V] AC | 230 V |
| Temp. sensor support |
NTC-M2020 PTC 1000 Pt 1000 |
| Type | AK-CC 350 |
| UK RoHS compliance | Out of scope |
| Valve output type | EVR (TXV) |
