| Gross weight | 484 Gram |
| Net weight | 317 Gram |
| Volume | 2.003 Liter |
| EAN | 5702428523646 |
| Gross weight | 484 Gram |
| Net weight | 317 Gram |
| Volume | 2.003 Liter |
| EAN | 5702428523646 |
| Analog inputs (AI) [pc] | 7 pc |
| Analog outputs (AO) [pc] | 1 pc |
| Application area | Refrigeration control |
| Approval |
C-TICK CE |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Communication built-in | MODBUS |
| Communication card option | LON RS485 |
| Communication type |
MODBUS Optional LON |
| Controller type | Case Contr. Multie Coil |
| Digital inputs (DI) [pc] | 2 pc |
| Digital outputs (DO) [pc] | 7 pc |
| Display on front | No |
| EEE category |
5 small equipment (any external dimension |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 Hz |
| Function | 3xAKV, Pe, 4 Relays |
| Identical product | 084B4184 |
| In scope of WEEE | Yes |
| Number of Evaporators max. | 3 pc |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Multi pack |
| Power consumption [VA] | 5 VA |
| Press. Transmitter support | RATIOMETRIC |
| Product features |
CO2 compliant Pe Signal S2 Injection control |
| Product group | Evaporator and room control |
| Product Name Description | Case/room controller (EEV) |
| Quantity per packing format | 10 pc |
| Sensor connection | Screw terminals |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 115 V |
| Temp. sensor support |
NTC 5000 NTC10000 PTC 1000 Pt 1000 |

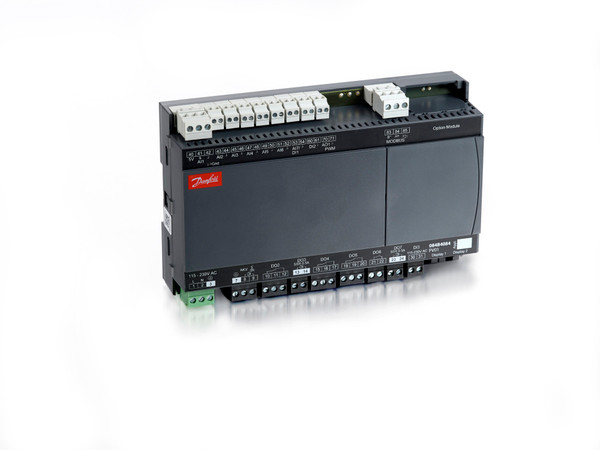

| Type | AK-CC55 Multi Coil |
| UK RoHS compliance | Out of scope |
| Valve output type | AKV |
| Analog inputs (AI) [pc] | 7 pc |
| Analog outputs (AO) [pc] | 1 pc |
| Application area | Refrigeration control |
| Approval |
C-TICK CE |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Communication built-in | MODBUS |
| Communication card option | LON RS485 |
| Communication type |
MODBUS Optional LON |
| Controller type | Case Contr. Multie Coil |
| Digital inputs (DI) [pc] | 2 pc |
| Digital outputs (DO) [pc] | 7 pc |
| Display on front | No |
| EEE category |
5 small equipment (any external dimension |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 Hz |
| Function | 3xAKV, Pe, 4 Relays |
| Identical product | 084B4184 |
| In scope of WEEE | Yes |
| Number of Evaporators max. | 3 pc |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Multi pack |
| Power consumption [VA] | 5 VA |
| Press. Transmitter support | RATIOMETRIC |
| Product features |
CO2 compliant Pe Signal S2 Injection control |
| Product group | Evaporator and room control |
| Product Name Description | Case/room controller (EEV) |
| Quantity per packing format | 10 pc |
| Sensor connection | Screw terminals |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 115 V |
| Temp. sensor support |
NTC 5000 NTC10000 PTC 1000 Pt 1000 |
| Type | AK-CC55 Multi Coil |
| UK RoHS compliance | Out of scope |
| Valve output type | AKV |
