| Gross weight | 0.938 Kilogram |
| Net weight | 0.645 Kilogram |
| Volume | 6.248 Liter |
| EAN | 5702423287055 |
| Gross weight | 0.938 Kilogram |
| Net weight | 0.645 Kilogram |
| Volume | 6.248 Liter |
| EAN | 5702423287055 |
| Analog inputs (AI) [pc] | 11 pc |
| Application area | Refrigeration control |
| Approval |
C-TICK CE cURus |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Communication type | LON TP78 |
| Controller type | Case/Room controller (4 AKV) |
| Digital outputs (DO) [pc] | 8 pc |
| Display - option |
EKA 163B EKA 164B |
| Display on front | No |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 50/60 Hz |
| Function | 1-4 AKV(EEV), Flexible I/O |
| Further information | °F/ PSI |
| Number of Evaporators max. | 4 pc |
| Other RoHS documentation | EAEU RoHS |
| Output voltage [V] AC | 230 V |
| Packing format | Single pack |
| Power consumption [VA] | 8 VA |
| Press. Transmitter support |
1-5 V RATIOMETRIC |
| Product accessories | Electron. control accessories |
| Product group | Evaporator and room control |
| Product Language | American |
| Product Name Description | Case/room controller (EEV) |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Sensor connection | SCREW TERMINAL |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Temp. sensor support |
PTC 1000 Pt 1000 |

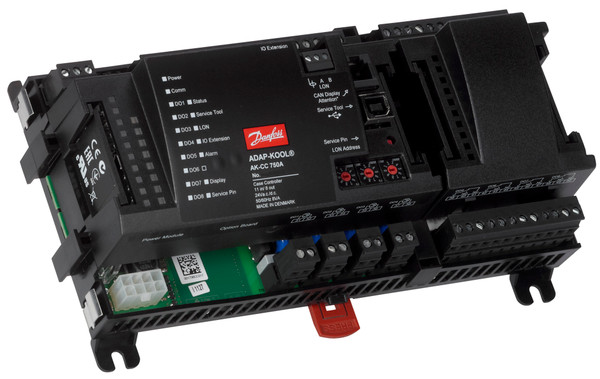

| Type | AK-CC 750 |
| UK RoHS compliance | Out of scope |
| UL evaluated | Yes |
| Valve output type |
AKV (EEV) LLSV (TXV) |
| Analog inputs (AI) [pc] | 11 pc |
| Application area | Refrigeration control |
| Approval |
C-TICK CE cURus |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Communication type | LON TP78 |
| Controller type | Case/Room controller (4 AKV) |
| Digital outputs (DO) [pc] | 8 pc |
| Display - option |
EKA 163B EKA 164B |
| Display on front | No |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 50/60 Hz |
| Function | 1-4 AKV(EEV), Flexible I/O |
| Further information | °F/ PSI |
| Number of Evaporators max. | 4 pc |
| Other RoHS documentation | EAEU RoHS |
| Output voltage [V] AC | 230 V |
| Packing format | Single pack |
| Power consumption [VA] | 8 VA |
| Press. Transmitter support |
1-5 V RATIOMETRIC |
| Product accessories | Electron. control accessories |
| Product group | Evaporator and room control |
| Product Language | American |
| Product Name Description | Case/room controller (EEV) |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Sensor connection | SCREW TERMINAL |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Temp. sensor support |
PTC 1000 Pt 1000 |
| Type | AK-CC 750 |
| UK RoHS compliance | Out of scope |
| UL evaluated | Yes |
| Valve output type |
AKV (EEV) LLSV (TXV) |
