| Gross weight | 0.3 Kilogram |
| Net weight | 0.25 Kilogram |
| Volume | 1.883 Liter |
| EAN | 5714279874402 |
| Gross weight | 0.3 Kilogram |
| Net weight | 0.25 Kilogram |
| Volume | 1.883 Liter |
| EAN | 5714279874402 |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Analog inputs (AI) [pc] | 0 pc |
| Analog outputs (AO) [pc] | 0 pc |
| Approval |
CE RoHS UKCA UL |
| Battery back-up [V] DC | 24 V |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Communication type | Digital output |
| Contain batteries | No |
| Digital inputs (DI) [pc] | 0 pc |
| Digital outputs (DO) [pc] | 1 pc |
| Display - option | None |
| Display on front | No |
| Enclosure rating note | IP40 for Housing |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 50/60 Hz |
| Further information | Maximum nominal output current |
| Max. current output/phase [A] | 2 A |
| Mounting method | DIN rail |
| Number of pressure sensors | 0 |
| Number of Sensor inputs | 0 pc |
| Number of temperature sensors | 0 |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Multi pack |
| Power consumption [VA] | 15 VA |
| Product accessories | Electron. control accessories |
| Product features |
Backup power for up to 2 EKE 1 LEDs showing status: Charging LEDs showing status: Failed LEDs showing status: Ready LEDs showing status: Replace Shared power supply State of Health detection Status output signal: Charging Status output signal: Failed Status output signal: Ready Status output signal: Replace |
| Product group | Electronic controllers |
| Product Language | English |

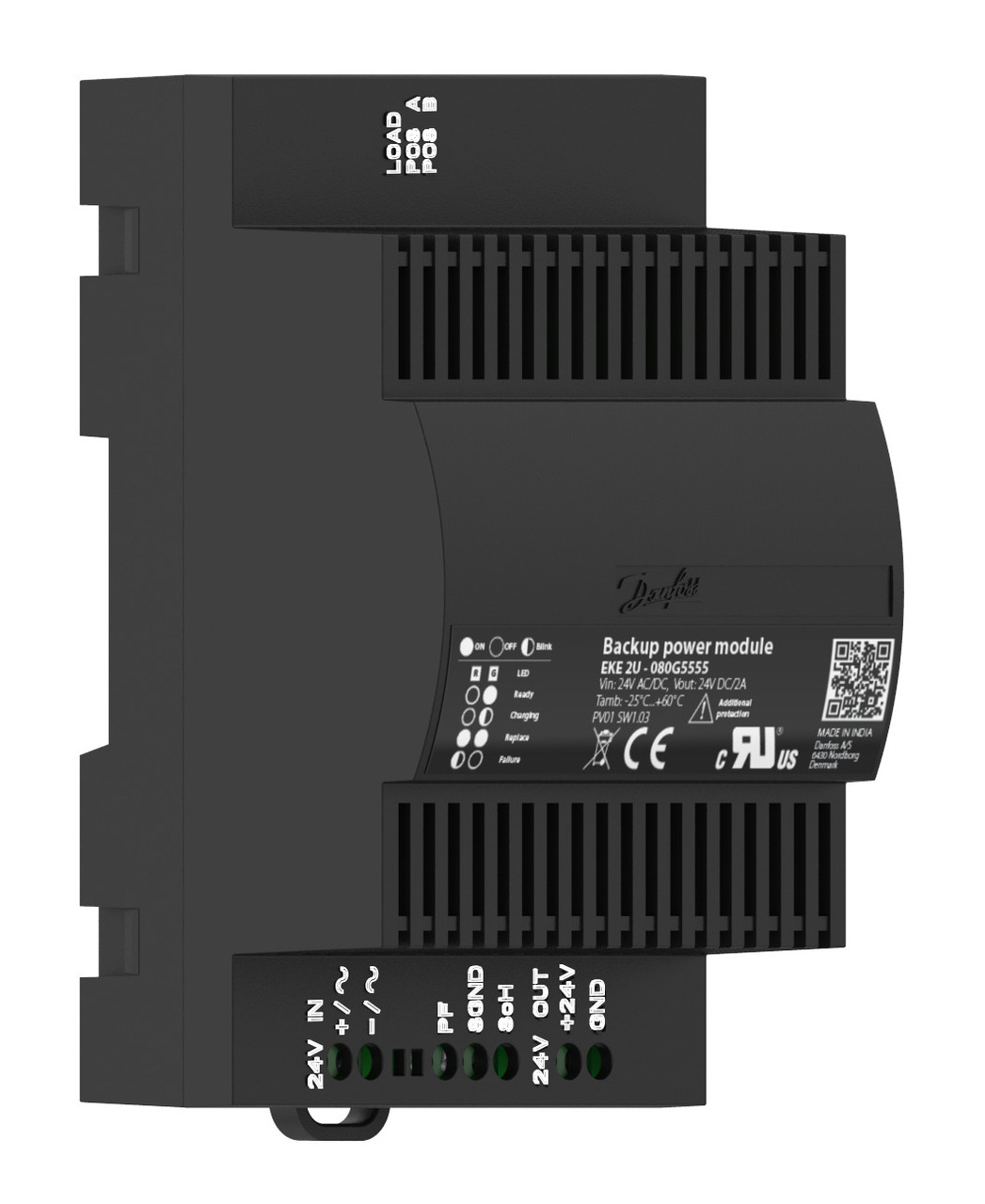

| Product Name Description | Backup power module |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a943317a-3b9b-4eed-903d-d6796f9eb724 |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Supply voltage [V] DC | 24 V |
| Type | EKE 2U |
| UK RoHS compliance | Out of scope |
| UL evaluated | Yes |
| Used for product |
EIM 365 EKD 316 EKD 316C EKE 1A EKE 1B EKE 1C EKE 1D MCX061V MCX152V |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Analog inputs (AI) [pc] | 0 pc |
| Analog outputs (AO) [pc] | 0 pc |
| Approval |
CE RoHS UKCA UL |
| Battery back-up [V] DC | 24 V |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Communication type | Digital output |
| Contain batteries | No |
| Digital inputs (DI) [pc] | 0 pc |
| Digital outputs (DO) [pc] | 1 pc |
| Display - option | None |
| Display on front | No |
| Enclosure rating note | IP40 for Housing |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 50/60 Hz |
| Further information | Maximum nominal output current |
| Max. current output/phase [A] | 2 A |
| Mounting method | DIN rail |
| Number of pressure sensors | 0 |
| Number of Sensor inputs | 0 pc |
| Number of temperature sensors | 0 |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Multi pack |
| Power consumption [VA] | 15 VA |
| Product accessories | Electron. control accessories |
| Product features |
Backup power for up to 2 EKE 1 LEDs showing status: Charging LEDs showing status: Failed LEDs showing status: Ready LEDs showing status: Replace Shared power supply State of Health detection Status output signal: Charging Status output signal: Failed Status output signal: Ready Status output signal: Replace |
| Product group | Electronic controllers |
| Product Language | English |
| Product Name Description | Backup power module |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a943317a-3b9b-4eed-903d-d6796f9eb724 |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Supply voltage [V] DC | 24 V |
| Type | EKE 2U |
| UK RoHS compliance | Out of scope |
| UL evaluated | Yes |
| Used for product |
EIM 365 EKD 316 EKD 316C EKE 1A EKE 1B EKE 1C EKE 1D MCX061V MCX152V |
