| Gross weight | 0.05 Kilogram |
| Net weight | 0.037 Kilogram |
| Volume | 0.25 Liter |
| EAN | 5702428457637 |
| Gross weight | 0.05 Kilogram |
| Net weight | 0.037 Kilogram |
| Volume | 0.25 Liter |
| EAN | 5702428457637 |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Analog inputs (AI) [pc] | 3 pc |
| Analog outputs (AO) [pc] | 0 pc |
| Approval |
CE EAC LLC CDC EURO-TYSK RoHS UKCA |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Communication type | Modbus RS485 RTU |
| Contain batteries | No |
| Digital inputs (DI) [pc] | 1 pc |
| Display - option | None |
| Display on front | No |
| Division | 01 |
| EEE category |
5 small equipment (any external dimension |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Max. current output/phase [A] | 1 A |
| Mounting method | Screw mounting |
| Number of pressure sensors | 1 |
| Number of temperature sensors | 2 |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Multi pack |
| PFAS content [Yes/No] | No |
| Pressure sensor support | Ratiometric 0.5 - 4 V DC |
| Product accessories | Electron. control accessories |
| Product features |
Alarm management Superheat reference |
| Product group | Electronic valve control |
| Product Language | English |

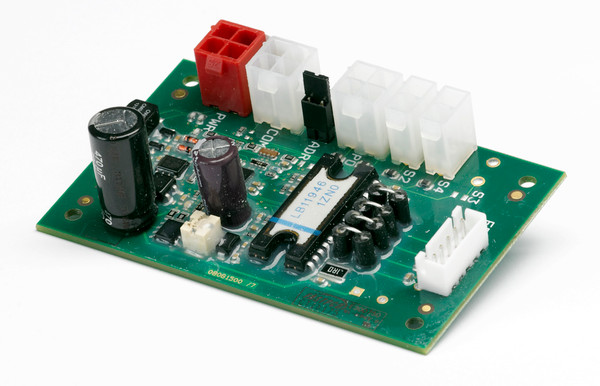

| Product Name Description | Superheat controller |
| Quantity per packing format | 40 pc |
| REACH Candidate List substances | No |
| Serviceable | No |
| Spec. Factory settings | YES |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Supply voltage [V] DC | 24 V |
| Temp. sensor configuration | S2 |
| Temp. sensor support | Pt 1000 |
| Type | EIM 336 |
| UK RoHS compliance | Yes |
| Valve output number | 1 |
| Valve output type | ETS 6 |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Analog inputs (AI) [pc] | 3 pc |
| Analog outputs (AO) [pc] | 0 pc |
| Approval |
CE EAC LLC CDC EURO-TYSK RoHS UKCA |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Communication type | Modbus RS485 RTU |
| Contain batteries | No |
| Digital inputs (DI) [pc] | 1 pc |
| Display - option | None |
| Display on front | No |
| Division | 01 |
| EEE category |
5 small equipment (any external dimension |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Max. current output/phase [A] | 1 A |
| Mounting method | Screw mounting |
| Number of pressure sensors | 1 |
| Number of temperature sensors | 2 |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Multi pack |
| PFAS content [Yes/No] | No |
| Pressure sensor support | Ratiometric 0.5 - 4 V DC |
| Product accessories | Electron. control accessories |
| Product features |
Alarm management Superheat reference |
| Product group | Electronic valve control |
| Product Language | English |
| Product Name Description | Superheat controller |
| Quantity per packing format | 40 pc |
| REACH Candidate List substances | No |
| Serviceable | No |
| Spec. Factory settings | YES |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Supply voltage [V] DC | 24 V |
| Temp. sensor configuration | S2 |
| Temp. sensor support | Pt 1000 |
| Type | EIM 336 |
| UK RoHS compliance | Yes |
| Valve output number | 1 |
| Valve output type | ETS 6 |
