| Gross weight | 0.296 Kilogram |
| Net weight | 0.134 Kilogram |
| Volume | 1.829 Liter |
| EAN | 5702428673730 |
| Gross weight | 0.296 Kilogram |
| Net weight | 0.134 Kilogram |
| Volume | 1.829 Liter |
| EAN | 5702428673730 |
| Analog inputs (AI) [pc] | 4 pc |
| Analog inputs type | Voltage |
| Approval |
C-TICK CE EAC LLC CDC EURO-TYSK RoHS |
| Battery back-up [V] DC [max] | 24 V |
| Battery back-up [V] DC [min] | 18 V |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Communication type |
Modbus RS485 RTU RJ11 (CAN) to User Interface |
| Digital inputs (DI) [pc] | 2 pc |
| Digital outputs (DO) [pc] | 1 pc |
| Display - option | MMIGRS2 |
| Display on front | No |
| Division | 25 |
| Enclosure rating note | IP40 for Housing |
| Frequency [Hz] | 50/60 Hz |
| Further information |
Shared power supply Signal share via hardwire |
| Gateway option | MMIMYK |
| Mounting method | DIN rail |
| Number of pressure sensors | 1 |
| Number of temperature sensors | 2 |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Multi pack |
| PFAS content [Yes/No] | No |
| Pressure sensor support | Ratiometric 0.5 - 4 V DC |
| Product accessories | Electron. control accessories |
| Product features |
Alarm management Capacity signal from master Defrost Sequence Ext reference, temp/SH control Limitation functions Manual operation Preset OD Reversible system with 1 EXV Service mode Start up Superheat reference Valve driver: Reference of OD |
| Product group | Electronic valve control |
| Product Language |
Chinese English French German Italian Portuguese Russian Spanish |

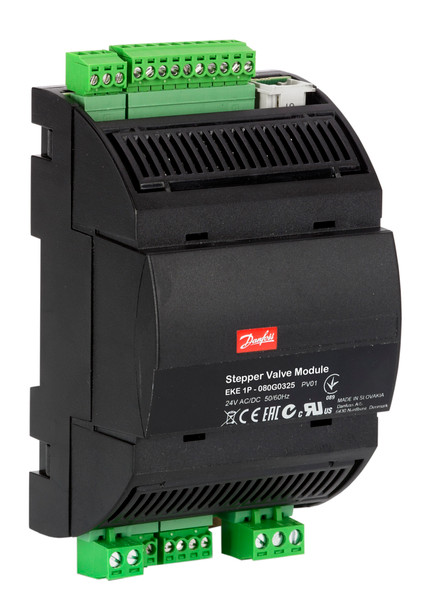

| Product Name Description | Stepper valve driver |
| Programming tools | Koolprog |
| Quantity per packing format | 16 pc |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Supply voltage [V] DC | 24 V |
| Temp. sensor support | Pt 1000 |
| Type | EKE 1P |
| UK RoHS compliance | Out of scope |
| Used for product |
CCM CCMT CTR ETS KVS |
| Valve output type |
CCM 10 CCM 20 CCM 30 CCM 40 CCMT 0 CCMT 1 CCMT 16 CCMT 2 CCMT 24 CCMT 30 CCMT 3L CCMT 4 CCMT 42 CCMT 5L CCMT 8 CCMT8L CTR 20 ETS 100 ETS 100C ETS 12.5 ETS 12C ETS 24C ETS 25 ETS 250 ETS 25B ETS 25C ETS 400 ETS 50 ETS 50C ETS 6 KVS 15 KVS 2C KVS 3C KVS 42 |
| Analog inputs (AI) [pc] | 4 pc |
| Analog inputs type | Voltage |
| Approval |
C-TICK CE EAC LLC CDC EURO-TYSK RoHS |
| Battery back-up [V] DC [max] | 24 V |
| Battery back-up [V] DC [min] | 18 V |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Communication type |
Modbus RS485 RTU RJ11 (CAN) to User Interface |
| Digital inputs (DI) [pc] | 2 pc |
| Digital outputs (DO) [pc] | 1 pc |
| Display - option | MMIGRS2 |
| Display on front | No |
| Division | 25 |
| Enclosure rating note | IP40 for Housing |
| Frequency [Hz] | 50/60 Hz |
| Further information |
Shared power supply Signal share via hardwire |
| Gateway option | MMIMYK |
| Mounting method | DIN rail |
| Number of pressure sensors | 1 |
| Number of temperature sensors | 2 |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Multi pack |
| PFAS content [Yes/No] | No |
| Pressure sensor support | Ratiometric 0.5 - 4 V DC |
| Product accessories | Electron. control accessories |
| Product features |
Alarm management Capacity signal from master Defrost Sequence Ext reference, temp/SH control Limitation functions Manual operation Preset OD Reversible system with 1 EXV Service mode Start up Superheat reference Valve driver: Reference of OD |
| Product group | Electronic valve control |
| Product Language |
Chinese English French German Italian Portuguese Russian Spanish |
| Product Name Description | Stepper valve driver |
| Programming tools | Koolprog |
| Quantity per packing format | 16 pc |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Supply voltage [V] DC | 24 V |
| Temp. sensor support | Pt 1000 |
| Type | EKE 1P |
| UK RoHS compliance | Out of scope |
| Used for product |
CCM CCMT CTR ETS KVS |
| Valve output type |
CCM 10 CCM 20 CCM 30 CCM 40 CCMT 0 CCMT 1 CCMT 16 CCMT 2 CCMT 24 CCMT 30 CCMT 3L CCMT 4 CCMT 42 CCMT 5L CCMT 8 CCMT8L CTR 20 ETS 100 ETS 100C ETS 12.5 ETS 12C ETS 24C ETS 25 ETS 250 ETS 25B ETS 25C ETS 400 ETS 50 ETS 50C ETS 6 KVS 15 KVS 2C KVS 3C KVS 42 |
