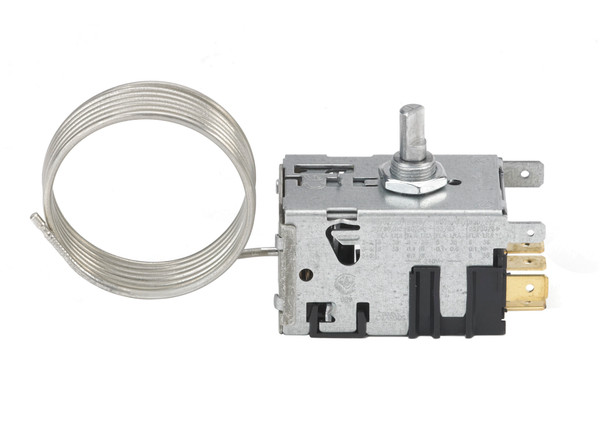

Danfoss

Danfoss 077B6172 B6

43.00€

Current Stock:

Quantity:

Product Type: B6, Warm cut-in [°C]: 3.5, Warm cut-out [°C]: -5.0, Cold cut-out [°C]: -21.0, Cold cut-out [°C]: -21.0, Capillary tube length [mm]: 900

Gross weight	0.09 Kilogram
Net weight	0.085 Kilogram

Volume	0.309 Cubic decimeter
EAN	5702424014544

Adjusted at pressure [mm Hg]	650 mmHg
Adjusting position	Cold
Ambient temperature range [°C] [max]	65 °C
Ambient temperature range [°C] [min]	-25 °C
Approval	BEAB CE EAC LLC CDC TYSK cURus
Capillary tube length [mm]	900 mm
CE evaluated	Yes
China RoHS compliance	Out of scope
Cold cut-in [°C]	3.5 °C
Cold cut-out [°C]	-21 °C
Contain batteries	No
EEE category	5 small equipment (any external dimension 50 cm)
EU RoHS compliance	Out of scope

In scope of WEEE	Yes
Packing format	Industrial pack
Product group	Mechanical cold controls
Product Name Description	Thermostat
Quantity per packing format	100 pc
REACH Candidate List substances	No
Terminals	6,3 x 0,8 mm All
Type	B6
UK RoHS compliance	Out of scope
UL evaluated	Yes
Warm cut-in [°C]	3.5 °C
Warm cut-out [°C]	-5 °C

Adjusted at pressure [mm Hg]	650 mmHg
Adjusting position	Cold
Ambient temperature range [°C] [max]	65 °C
Ambient temperature range [°C] [min]	-25 °C
Approval	BEAB CE EAC LLC CDC TYSK cURus
Capillary tube length [mm]	900 mm
CE evaluated	Yes
China RoHS compliance	Out of scope
Cold cut-in [°C]	3.5 °C
Cold cut-out [°C]	-21 °C
Contain batteries	No
EEE category	5 small equipment (any external dimension 50 cm)
EU RoHS compliance	Out of scope
In scope of WEEE	Yes
Packing format	Industrial pack
Product group	Mechanical cold controls
Product Name Description	Thermostat
Quantity per packing format	100 pc
REACH Candidate List substances	No
Terminals	6,3 x 0,8 mm All
Type	B6
UK RoHS compliance	Out of scope
UL evaluated	Yes
Warm cut-in [°C]	3.5 °C
Warm cut-out [°C]	-5 °C
