Danfoss

Danfoss 077B1745 B0

46.00€

Current Stock:

Quantity:

Product Type: B0, Warm cut-in [°C]: 11.5, Warm cut-out [°C]: 6.0, Cold cut-in [°C]: -1.0, Cold cut-out [°C]: -8.5, Capillary tube length [mm]: 2000

Gross weight	0.102 Kilogram
Net weight	0.095 Kilogram

Volume	0.295 Liter
EAN	5702424287801

Adjusted at pressure [mm Hg]	760 mmHg
Adjusting position	Warm
Ambient temperature range [°C] [max]	65 °C
Ambient temperature range [°C] [min]	-25 °C
Approval	BEAB CE EAC LLC CDC TYSK cURus
Capillary tube length [mm]	2000 mm
CE evaluated	Yes
China RoHS compliance	Out of scope
Cold cut-in [°C]	-1 °C
Cold cut-out [°C]	-8.5 °C
Contain batteries	No
EEE category	5 small equipment (any external dimension 50 cm)
Enclosed breaked device (EBD)	077R0379 ref. 1

EU RoHS compliance	Out of scope
In scope of WEEE	Yes
Packing format	Industrial pack
Product group	Mechanical cold controls

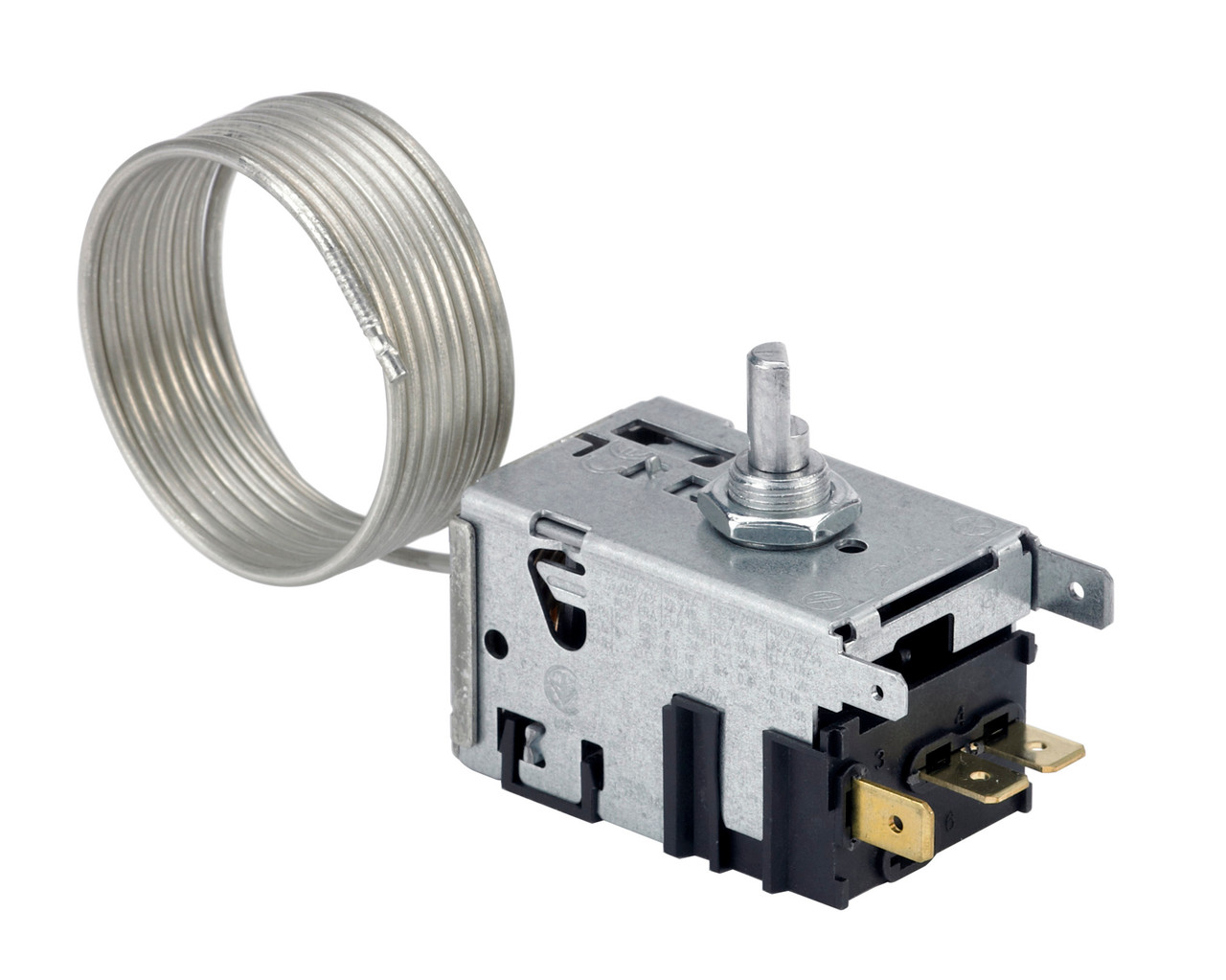

Product Name Description	Thermostat
Quantity per packing format	80 pc
REACH Candidate List substances	No
Terminals	6,3 x 0,8 mm All
Type	B0
UK RoHS compliance	Out of scope
UL evaluated	Yes
Warm cut-in [°C]	11.5 °C
Warm cut-out [°C]	6 °C
