| Gross weight | 0.103 Kilogram |
| Net weight | 0.103 Kilogram |
| Volume | 0.281 Liter |
| EAN | 5702424000097 |
| Gross weight | 0.103 Kilogram |
| Net weight | 0.103 Kilogram |
| Volume | 0.281 Liter |
| EAN | 5702424000097 |
| Adjusted at pressure [mm Hg] | 760 mmHg |
| Adjusting position | Warm |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Approval |
BEAB CE EAC LLC CDC TYSK cURus |
| Capillary tube length [mm] | 2000 mm |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Cold cut-in [°C] | -22 °C |
| Cold cut-out [°C] | -33.1 °C |
| Contain batteries | No |
| EEE category |
5 small equipment (any external dimension |
| EU RoHS compliance | Out of scope |
| In scope of WEEE | Yes |
| Packing format | Industrial pack |
| Product group | Mechanical cold controls |

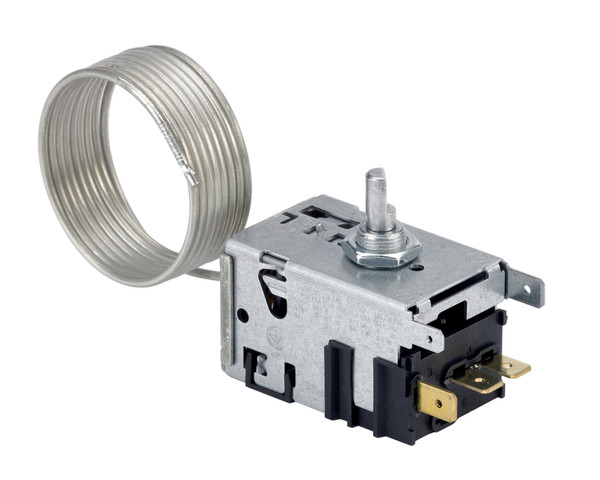

| Product Name Description | Thermostat |
| Quantity per packing format | 80 pc |
| REACH Candidate List substances | No |
| Terminals | 6,3 x 0,8 mm All |
| Type | B0 |
| Type designation | Standard thermostat |
| UK RoHS compliance | Out of scope |
| UL evaluated | Yes |
| Used for product | Ice-cream cabinets |
| Warm cut-in [°C] | -7.5 °C |
| Warm cut-out [°C] | -15 °C |
| Adjusted at pressure [mm Hg] | 760 mmHg |
| Adjusting position | Warm |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Approval |
BEAB CE EAC LLC CDC TYSK cURus |
| Capillary tube length [mm] | 2000 mm |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Cold cut-in [°C] | -22 °C |
| Cold cut-out [°C] | -33.1 °C |
| Contain batteries | No |
| EEE category |
5 small equipment (any external dimension |
| EU RoHS compliance | Out of scope |
| In scope of WEEE | Yes |
| Packing format | Industrial pack |
| Product group | Mechanical cold controls |
| Product Name Description | Thermostat |
| Quantity per packing format | 80 pc |
| REACH Candidate List substances | No |
| Terminals | 6,3 x 0,8 mm All |
| Type | B0 |
| Type designation | Standard thermostat |
| UK RoHS compliance | Out of scope |
| UL evaluated | Yes |
| Used for product | Ice-cream cabinets |
| Warm cut-in [°C] | -7.5 °C |
| Warm cut-out [°C] | -15 °C |
