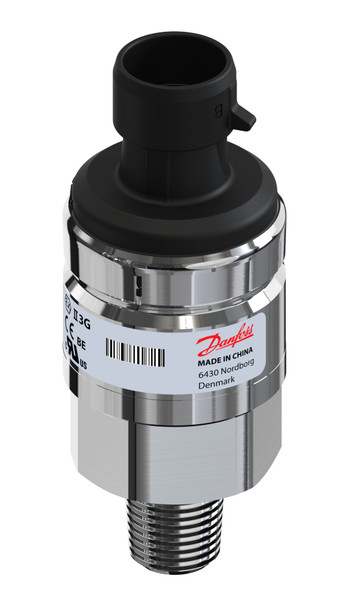

Pressure reference: Sealed gauge, Output signal: Ratio metric, Electrical connection: Round Packard Metri-Pack, Pressure connection type: NPT, Pressure connection size: 1/4-18, Specification key: DST P310-9736-C2AC04-0
| Gross weight |
0.137 Kilogram |
| Net weight |
0.121 Kilogram |
| Volume |
0.253 Liter |
| EAN |
5715162440360 |
| Gross weight |
0.137 Kilogram |
| Net weight |
0.121 Kilogram |
| Volume |
0.253 Liter |
| EAN |
5715162440360 |
| + output |
Pin 3 |
| + supply |
Pin 1 |
| - common |
Pin 2 |
| Accuracy, max. [±FS%] |
1 % |
| Accuracy, typical [±FS%] |
0.5 % |
| Adj. zero point and span |
No |
| Ambient temperature range [°C] [max] |
125 °C |
| Ambient temperature range [°C] [min] |
-40 °C |
| Ambient temperature range [°F] [max] |
257 °F |
| Ambient temperature range [°F] [min] |
-40 °F |
| Approval |
cUR |
| Approval standard |
E227388
E31024 |
| Autofrettage Pressure |
500 bar |
| CE evaluated |
Yes |
| Compensated temp. range [°C] [max] |
125 °C |
| Compensated temp. range [°C] [min] |
-40 °C |
| Compensated temp. range [°F] [max] |
257 °F |
| Compensated temp. range [°F] [min] |
-40 °F |
| Contain batteries |
No |
| Electrical conn. Male/Female |
Male |
| Electrical connection |
Round Packard Metri-Pack |
| Electrical connection size |
3 pin |
| Enclosure rating IP |
IP65 |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| Fault signal level |
2 |
| Flush diaphragm |
No |
| High Clipping Level |
99 |
| Identical product |
076G4008 |
| International Article Number |
5715162440360 |
| Intrinsically safe |
No |
| Low Clipping level |
4 |
| Medium temperature range [°C] [max] |
125 °C |
| Medium temperature range [°C] [min] |
-40 °C |
| Medium temperature range [°F] [max] |
257 °F |
| Medium temperature range [°F] [min] |
-40 °F |
| Output signal |
Ratio metric |
| Overload pressure max. [bar] |
960 bar |
| Packing format |
Multi pack |
| Pressure connection HEX [mm] |
27 mm |
| Pressure connection size |
1/4-18 |
| Pressure connection standard |
ANSI/ASME B1.20.1 |
| Pressure connection type |
NPT |
| Pressure Male/Female |
Male |
| Pressure range [bar] [max] |
159 bar |
| Pressure range [bar] [min] |
-1 bar |
| Pressure range [psi] [max] |
2306 psi |
| Pressure range [psi] [min] |
-14.5 psi |
| Pressure reference |
Sealed gauge |
| Product group |
Sensors |
| Product Name Description |
Pressure transmitter |
| Pulse-snubber |
Yes |
| Quantity per packing format |
20 pc |
| Ratiometric of Vsupply [%] [max] |
90 % |
| Ratiometric of Vsupply [%] [min] |
10 % |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| Response time max. [ms] |
4 ms |
| SCIP dossier no. |
cad3914f-8db1-488c-b0ad-3a20ac1ebb41 |
| Specification key |
DST P310-9736-C2AC04-0 |
| Supply voltage [V] DC [max] |
5.5 V |
| Supply voltage [V] DC [min] |
4.5 V |
| Type |
DST P310 |
| UK RoHS compliance |
Out of scope |
| UL evaluated |
Yes |
| + output |
Pin 3 |
| + supply |
Pin 1 |
| - common |
Pin 2 |
| Accuracy, max. [±FS%] |
1 % |
| Accuracy, typical [±FS%] |
0.5 % |
| Adj. zero point and span |
No |
| Ambient temperature range [°C] [max] |
125 °C |
| Ambient temperature range [°C] [min] |
-40 °C |
| Ambient temperature range [°F] [max] |
257 °F |
| Ambient temperature range [°F] [min] |
-40 °F |
| Approval |
cUR |
| Approval standard |
E227388
E31024 |
| Autofrettage Pressure |
500 bar |
| CE evaluated |
Yes |
| Compensated temp. range [°C] [max] |
125 °C |
| Compensated temp. range [°C] [min] |
-40 °C |
| Compensated temp. range [°F] [max] |
257 °F |
| Compensated temp. range [°F] [min] |
-40 °F |
| Contain batteries |
No |
| Electrical conn. Male/Female |
Male |
| Electrical connection |
Round Packard Metri-Pack |
| Electrical connection size |
3 pin |
| Enclosure rating IP |
IP65 |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| Fault signal level |
2 |
| Flush diaphragm |
No |
| High Clipping Level |
99 |
| Identical product |
076G4008 |
| International Article Number |
5715162440360 |
| Intrinsically safe |
No |
| Low Clipping level |
4 |
| Medium temperature range [°C] [max] |
125 °C |
| Medium temperature range [°C] [min] |
-40 °C |
| Medium temperature range [°F] [max] |
257 °F |
| Medium temperature range [°F] [min] |
-40 °F |
| Output signal |
Ratio metric |
| Overload pressure max. [bar] |
960 bar |
| Packing format |
Multi pack |
| Pressure connection HEX [mm] |
27 mm |
| Pressure connection size |
1/4-18 |
| Pressure connection standard |
ANSI/ASME B1.20.1 |
| Pressure connection type |
NPT |
| Pressure Male/Female |
Male |
| Pressure range [bar] [max] |
159 bar |
| Pressure range [bar] [min] |
-1 bar |
| Pressure range [psi] [max] |
2306 psi |
| Pressure range [psi] [min] |
-14.5 psi |
| Pressure reference |
Sealed gauge |
| Product group |
Sensors |
| Product Name Description |
Pressure transmitter |
| Pulse-snubber |
Yes |
| Quantity per packing format |
20 pc |
| Ratiometric of Vsupply [%] [max] |
90 % |
| Ratiometric of Vsupply [%] [min] |
10 % |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| Response time max. [ms] |
4 ms |
| SCIP dossier no. |
cad3914f-8db1-488c-b0ad-3a20ac1ebb41 |
| Specification key |
DST P310-9736-C2AC04-0 |
| Supply voltage [V] DC [max] |
5.5 V |
| Supply voltage [V] DC [min] |
4.5 V |
| Type |
DST P310 |
| UK RoHS compliance |
Out of scope |
| UL evaluated |
Yes |
