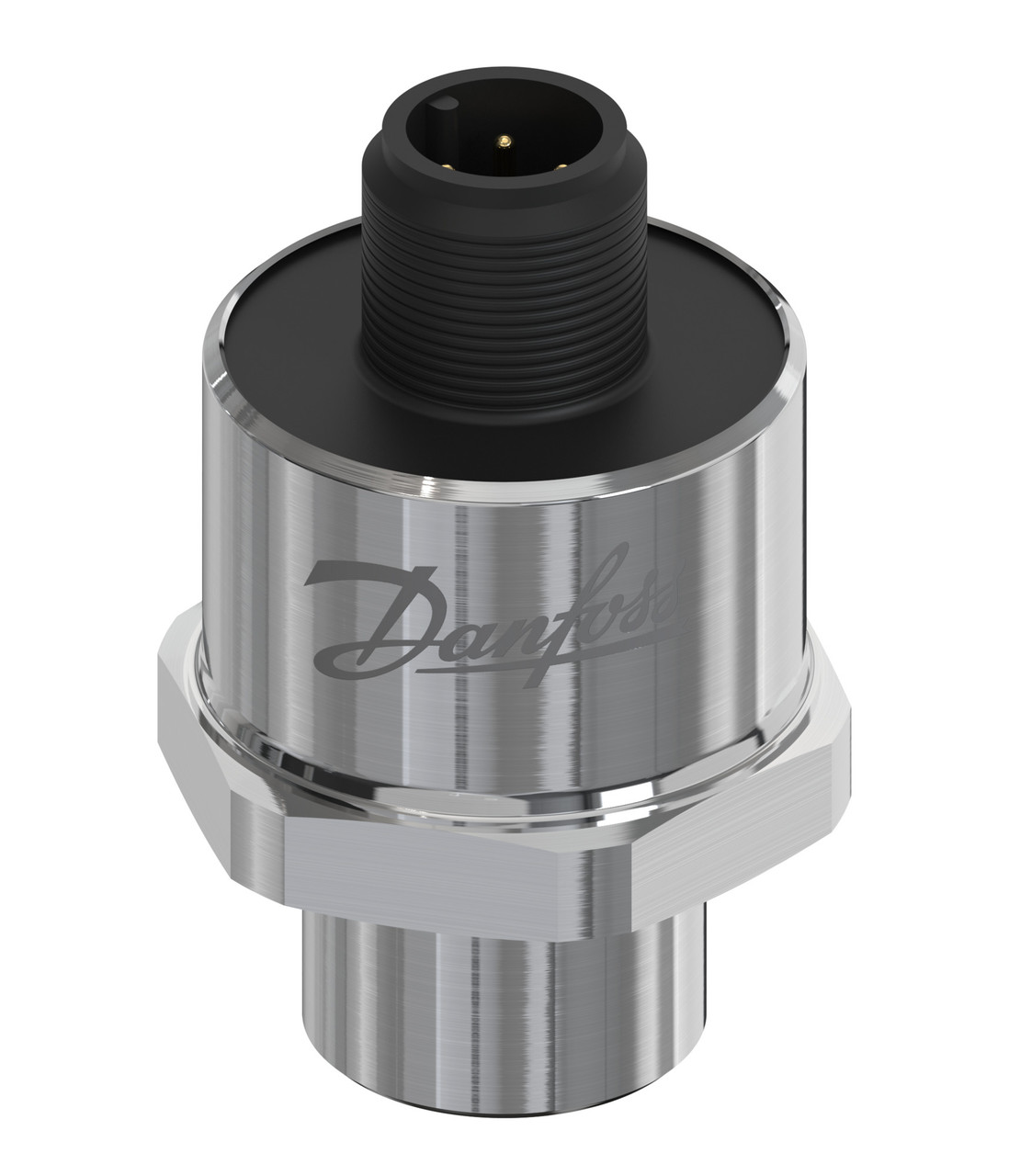

Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: M12 x 1, Pressure connection type: UNF, Pressure connection size: 7/16-20, Specification key: DST P110-C831-A5BF08-0
| Gross weight |
0.071 Kilogram |
| Net weight |
0.059 Kilogram |
| Gross weight |
0.071 Kilogram |
| Net weight |
0.059 Kilogram |
| EAN |
5702424589585 |
| + supply |
Pin 1 |
| - common |
Pin 3 |
| Ambient temperature range [°C] [max] |
85 °C |
| Ambient temperature range [°C] [min] |
-40 °C |
| CE evaluated |
Yes |
| Compensated temp. range [°C] [max] |
80 °C |
| Compensated temp. range [°C] [min] |
-40 °C |
| Contain batteries |
No |
| EEE category |
5 small equipment (any external dimension 50 cm) |
| Electrical connection |
M12 x 1 |
| Electrical connection size |
4 pin |
| Electrical connection standard |
IEC 61076-2-101 |
| Electrical Connector Color |
Black |
| Enclosure rating IP |
IP67 |
| EU RoHS compliance |
Yes |
| Fault signal level |
21.5 |
| High Clipping Level |
20 |
| Housing material |
304L |
| Identical product |
075G1092 |
| In scope of WEEE |
Yes |
| International Article Number |
5702424589585 |
| Low Clipping level |
4 |
| Medium temperature range [°C] [max] |
100 °C |
| Medium temperature range [°C] [min] |
-40 °C |
| Output signal |
Current |
| Output signal [mA] [max] |
20 mA |
| Output signal [mA] [min] |
4 mA |
| Overload pressure max. [bar] |
120 bar |
| Overload pressure max. [psi] |
1740 psi |
| Packing format |
Industrial pack |
| Pressure connection HEX [mm] |
27 mm |
| Pressure connection size |
7/16-20 |
| Pressure connection standard |
SAE J513 45° flare |
| Pressure connection type |
UNF |
| Pressure Male/Female |
Female |
| Pressure range [bar] [max] |
30 bar |
| Pressure range [bar] [min] |
0 bar |
| Pressure range [psi] [max] |
435 psi |
| Pressure range [psi] [min] |
0 psi |
| Pressure reference |
Sealed gauge |
| Product group |
Sensors |
| Product Name Description |
Pressure transmitter |
| Pulse-snubber |
No |
| Quantity per packing format |
60 pc |
| REACH Candidate List substances |
No |
| Response time max. [ms] |
2 ms |
| Specification key |
DST P110-C831-A5BF08-0 |
| TEB inside CTR ±FS [%] |
2 % |
| Type |
DST P110 |
| UK RoHS compliance |
Out of scope |
| Wetted part material |
304L/316L |
| + supply |
Pin 1 |
| - common |
Pin 3 |
| Ambient temperature range [°C] [max] |
85 °C |
| Ambient temperature range [°C] [min] |
-40 °C |
| CE evaluated |
Yes |
| Compensated temp. range [°C] [max] |
80 °C |
| Compensated temp. range [°C] [min] |
-40 °C |
| Contain batteries |
No |
| EEE category |
5 small equipment (any external dimension 50 cm) |
| Electrical connection |
M12 x 1 |
| Electrical connection size |
4 pin |
| Electrical connection standard |
IEC 61076-2-101 |
| Electrical Connector Color |
Black |
| Enclosure rating IP |
IP67 |
| EU RoHS compliance |
Yes |
| Fault signal level |
21.5 |
| High Clipping Level |
20 |
| Housing material |
304L |
| Identical product |
075G1092 |
| In scope of WEEE |
Yes |
| International Article Number |
5702424589585 |
| Low Clipping level |
4 |
| Medium temperature range [°C] [max] |
100 °C |
| Medium temperature range [°C] [min] |
-40 °C |
| Output signal |
Current |
| Output signal [mA] [max] |
20 mA |
| Output signal [mA] [min] |
4 mA |
| Overload pressure max. [bar] |
120 bar |
| Overload pressure max. [psi] |
1740 psi |
| Packing format |
Industrial pack |
| Pressure connection HEX [mm] |
27 mm |
| Pressure connection size |
7/16-20 |
| Pressure connection standard |
SAE J513 45° flare |
| Pressure connection type |
UNF |
| Pressure Male/Female |
Female |
| Pressure range [bar] [max] |
30 bar |
| Pressure range [bar] [min] |
0 bar |
| Pressure range [psi] [max] |
435 psi |
| Pressure range [psi] [min] |
0 psi |
| Pressure reference |
Sealed gauge |
| Product group |
Sensors |
| Product Name Description |
Pressure transmitter |
| Pulse-snubber |
No |
| Quantity per packing format |
60 pc |
| REACH Candidate List substances |
No |
| Response time max. [ms] |
2 ms |
| Specification key |
DST P110-C831-A5BF08-0 |
| TEB inside CTR ±FS [%] |
2 % |
| Type |
DST P110 |
| UK RoHS compliance |
Out of scope |
| Wetted part material |
304L/316L |
