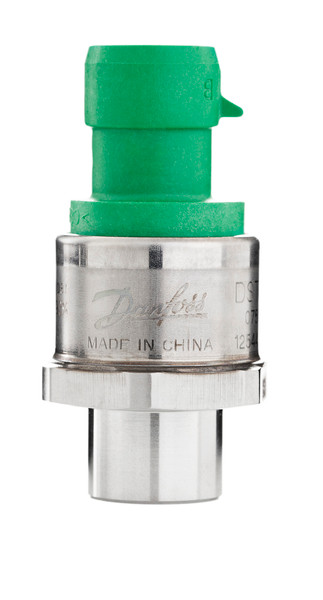

Pressure reference: Sealed gauge, Output signal: Ratio metric, Electrical connection: Metri-Pack 150 Series, Pressure connection type: UNF, Pressure connection size: 7/16-20, Specification key: DST P110-DH36-LBBF08-0
| Gross weight |
0.072 Kilogram |
| Net weight |
0.062 Kilogram |
| Volume |
0.084 Liter |
| EAN |
5702428558785 |
| Gross weight |
0.072 Kilogram |
| Net weight |
0.062 Kilogram |
| Volume |
0.084 Liter |
| EAN |
5702428558785 |
| + output |
Pin C |
| + supply |
Pin B |
| - common |
Pin A |
| Ambient temperature range [°C] [max] |
125 °C |
| Ambient temperature range [°C] [min] |
-40 °C |
| CE evaluated |
Yes |
| Compensated temp. range [°C] [max] |
120 °C |
| Compensated temp. range [°C] [min] |
-40 °C |
| Contain batteries |
No |
| EEE category |
5 small equipment (any external dimension 50 cm) |
| Electrical connection |
Metri-Pack 150 Series |
| Electrical connection size |
3 pin |
| Electrical connection standard |
NONE |
| Electrical Connector Color |
Green |
| Enclosure rating IP |
IP69K |
| EU RoHS compliance |
Yes |
| Fault signal level |
2 |
| High Clipping Level |
99 |
| Housing material |
304L |
| Identical product |
075G4002 |
| In scope of WEEE |
Yes |
| International Article Number |
5702428558785 |
| Low Clipping level |
4 |
| Medium temperature range [°C] [max] |
135 °C |
| Medium temperature range [°C] [min] |
-40 °C |
| Output signal |
Ratio metric |
| Overload pressure max. [bar] |
51 bar |
| Overload pressure max. [psi] |
739 psi |
| Packing format |
Multi pack |
| Pressure connection HEX [mm] |
27 mm |
| Pressure connection size |
7/16-20 |
| Pressure connection standard |
SAE J513 45° flare |
| Pressure connection type |
UNF |
| Pressure Male/Female |
Female |
| Pressure range [bar] [max] |
12 bar |
| Pressure range [bar] [min] |
-1 bar |
| Pressure range [psi] [max] |
174 psi |
| Pressure range [psi] [min] |
-14.5 psi |
| Pressure reference |
Sealed gauge |
| Product group |
Sensors |
| Product Name Description |
Pressure transmitter |
| Pulse-snubber |
No |
| Quantity per packing format |
64 pc |
| Ratiometric of Vsupply [%] [max] |
90 % |
| Ratiometric of Vsupply [%] [min] |
10 % |
| REACH Candidate List substances |
No |
| Response time max. [ms] |
2 ms |
| Specification key |
DST P110-DH36-LBBF08-0 |
| Supply voltage [V] DC |
5 V |
| Supply voltage [V] DC |
5 V |
| TEB inside CTR ±FS [%] |
3 % |
| Type |
DST P110 |
| UK RoHS compliance |
Out of scope |
| Wetted part material |
304L 316L |
| + output |
Pin C |
| + supply |
Pin B |
| - common |
Pin A |
| Ambient temperature range [°C] [max] |
125 °C |
| Ambient temperature range [°C] [min] |
-40 °C |
| CE evaluated |
Yes |
| Compensated temp. range [°C] [max] |
120 °C |
| Compensated temp. range [°C] [min] |
-40 °C |
| Contain batteries |
No |
| EEE category |
5 small equipment (any external dimension 50 cm) |
| Electrical connection |
Metri-Pack 150 Series |
| Electrical connection size |
3 pin |
| Electrical connection standard |
NONE |
| Electrical Connector Color |
Green |
| Enclosure rating IP |
IP69K |
| EU RoHS compliance |
Yes |
| Fault signal level |
2 |
| High Clipping Level |
99 |
| Housing material |
304L |
| Identical product |
075G4002 |
| In scope of WEEE |
Yes |
| International Article Number |
5702428558785 |
| Low Clipping level |
4 |
| Medium temperature range [°C] [max] |
135 °C |
| Medium temperature range [°C] [min] |
-40 °C |
| Output signal |
Ratio metric |
| Overload pressure max. [bar] |
51 bar |
| Overload pressure max. [psi] |
739 psi |
| Packing format |
Multi pack |
| Pressure connection HEX [mm] |
27 mm |
| Pressure connection size |
7/16-20 |
| Pressure connection standard |
SAE J513 45° flare |
| Pressure connection type |
UNF |
| Pressure Male/Female |
Female |
| Pressure range [bar] [max] |
12 bar |
| Pressure range [bar] [min] |
-1 bar |
| Pressure range [psi] [max] |
174 psi |
| Pressure range [psi] [min] |
-14.5 psi |
| Pressure reference |
Sealed gauge |
| Product group |
Sensors |
| Product Name Description |
Pressure transmitter |
| Pulse-snubber |
No |
| Quantity per packing format |
64 pc |
| Ratiometric of Vsupply [%] [max] |
90 % |
| Ratiometric of Vsupply [%] [min] |
10 % |
| REACH Candidate List substances |
No |
| Response time max. [ms] |
2 ms |
| Specification key |
DST P110-DH36-LBBF08-0 |
| Supply voltage [V] DC |
5 V |
| Supply voltage [V] DC |
5 V |
| TEB inside CTR ±FS [%] |
3 % |
| Type |
DST P110 |
| UK RoHS compliance |
Out of scope |
| Wetted part material |
304L 316L |
