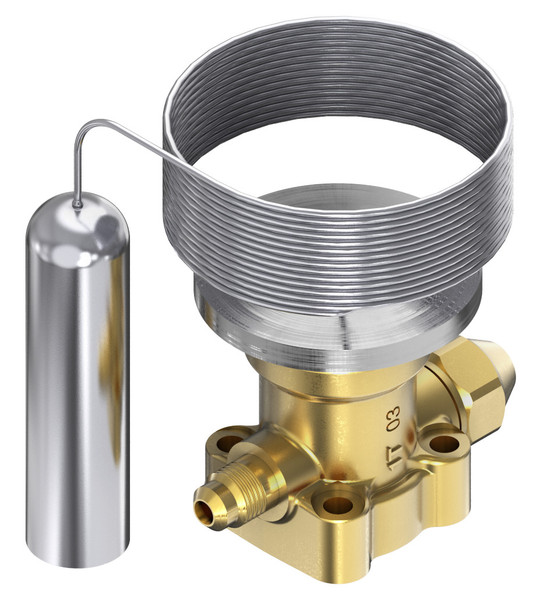

Used for product: PHTN, Type designation: Element
| Gross weight |
0.55 Kilogram |
| Net weight |
0.45 Kilogram |
| Volume |
1.615 Liter |
| EAN |
5702428034807 |
| Gross weight |
0.55 Kilogram |
| Net weight |
0.45 Kilogram |
| Volume |
1.615 Liter |
| EAN |
5702428034807 |
| Approval |
EAC
LLC CDC TYSK |
| Body material |
Brass |
| Capillary tube length [in] |
118 in |
| Capillary tube length [mm] |
3000 mm |
| China RoHS compliance |
Out of scope |
| Contain batteries |
No |
| Equalization connection type |
Flare |
| Equalization size [in] |
1/4 in |
| EU RoHS compliance |
Out of scope |
| Max. Working Pressure [bar] |
28 bar |
| Max. Working Pressure [psig] |
400 psig |
| MOP Point [psig] |
MOP 55 |
| MOP Point [°C] |
15 °C |
| MOP Point [°F] |
60 °F |
| Packing format |
Multi pack |
| Pressure equalization |
Externally equalized |
| Product group |
Expansion valves |
| Product Name Description |
Element for expansion valve |
| Quantity per packing format |
12 pc |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| Refrigerants |
R134a |
| Temperature range [°C] [max] |
10 °C |
| Temperature range [°C] [min] |
-40 °C |
| Temperature range [°F] [max] |
50 °F |
| Temperature range [°F] [min] |
-40 °F |
| Type |
PHT |
| Type designation |
Element |
| UK RoHS compliance |
Out of scope |
| Used for product |
PHTN |
| Approval |
EAC
LLC CDC TYSK |
| Body material |
Brass |
| Capillary tube length [in] |
118 in |
| Capillary tube length [mm] |
3000 mm |
| China RoHS compliance |
Out of scope |
| Contain batteries |
No |
| Equalization connection type |
Flare |
| Equalization size [in] |
1/4 in |
| EU RoHS compliance |
Out of scope |
| Max. Working Pressure [bar] |
28 bar |
| Max. Working Pressure [psig] |
400 psig |
| MOP Point [psig] |
MOP 55 |
| MOP Point [°C] |
15 °C |
| MOP Point [°F] |
60 °F |
| Packing format |
Multi pack |
| Pressure equalization |
Externally equalized |
| Product group |
Expansion valves |
| Product Name Description |
Element for expansion valve |
| Quantity per packing format |
12 pc |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| Refrigerants |
R134a |
| Temperature range [°C] [max] |
10 °C |
| Temperature range [°C] [min] |
-40 °C |
| Temperature range [°F] [max] |
50 °F |
| Temperature range [°F] [min] |
-40 °F |
| Type |
PHT |
| Type designation |
Element |
| UK RoHS compliance |
Out of scope |
| Used for product |
PHTN |
