Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4 in, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 143.0
| Gross weight |
0.242 Kilogram |
| Net weight |
0.214 Kilogram |
| Volume |
0.52 Liter |
| EAN |
5702424693282 |
| Gross weight |
0.242 Kilogram |
| Net weight |
0.214 Kilogram |
| Volume |
0.52 Liter |
| EAN |
5702424693282 |
| Ambient temperature range [°C] [max] |
70 °C |
| Ambient temperature range [°C] [min] |
-40 °C |
| Ambient temperature range [°F] [max] |
158 °F |
| Ambient temperature range [°F] [min] |
-40 °F |
| Approval |
CE 0035
TÜV
UKCA |
| CE evaluated |
Yes |
| Contact function |
SPDT |
| Contact rating |
AC=6 A, 250 V |
| Contain batteries |
No |
| Electrical conn. comments |
DIN plug not included |
| Electrical connection |
DIN Spade |
| Enclosure rating IP |
IP65 |
| Higher activ. pressure [bar] |
54 bar |
| Higher activ. pressure [psi] |
783 psi |
| Lower activ. pressure [bar] |
44 bar |
| Lower activ. pressure [psi] |
638 psi |
| Max. Working Pressure [bar] |
143 bar |
| Max. Working Pressure [psig] |
2074 psig |
| Medium temperature range [°C] [max] |
150 °C |
| Medium temperature range [°C] [min] |
-40 °C |
| Medium temperature range [°F] [max] |
302 °F |
| Medium temperature range [°F] [min] |
-40 °F |
| Packing format |
Multi pack |
| Pressure connection length[in] |
1.69 in |
| Pressure connection length[mm] |
43 mm |
| Pressure connection notes |
Deflator |
| Pressure connection size |
1/4 in |
| Pressure connection type |
Flare |
| Pressure Male/Female |
Female |
| Pressure range category |
High pressure |
| Product group |
Switches and thermostats |
| Product Name Description |

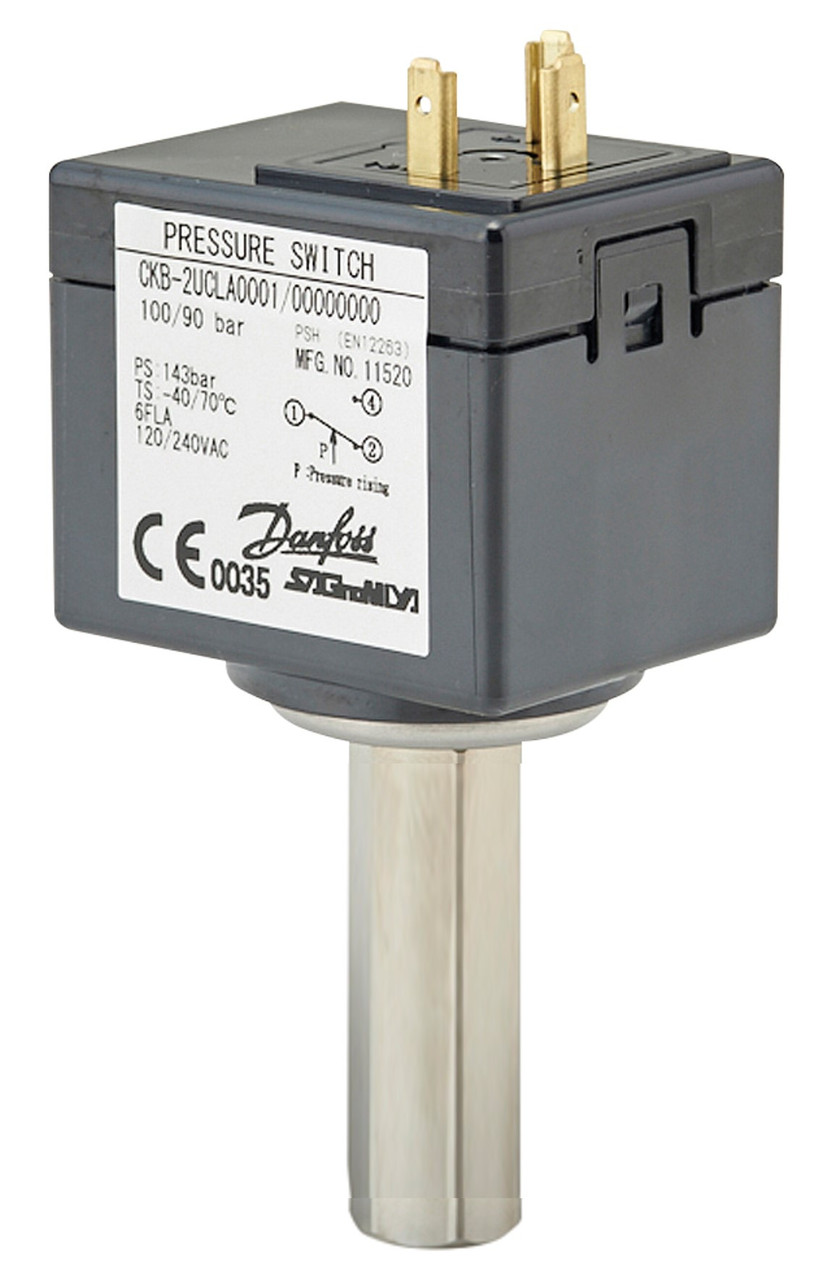

Pressure switch |
| Quantity per packing format |
25 pc |
| Refrigerants |
R744 |
| Reset function |
Auto |
| Specification key |
CKB-2UCBA4011 |
| Type |
CKB |
| Ambient temperature range [°C] [max] |
70 °C |
| Ambient temperature range [°C] [min] |
-40 °C |
| Ambient temperature range [°F] [max] |
158 °F |
| Ambient temperature range [°F] [min] |
-40 °F |
| Approval |
CE 0035
TÜV
UKCA |
| CE evaluated |
Yes |
| Contact function |
SPDT |
| Contact rating |
AC=6 A, 250 V |
| Contain batteries |
No |
| Electrical conn. comments |
DIN plug not included |
| Electrical connection |
DIN Spade |
| Enclosure rating IP |
IP65 |
| Higher activ. pressure [bar] |
54 bar |
| Higher activ. pressure [psi] |
783 psi |
| Lower activ. pressure [bar] |
44 bar |
| Lower activ. pressure [psi] |
638 psi |
| Max. Working Pressure [bar] |
143 bar |
| Max. Working Pressure [psig] |
2074 psig |
| Medium temperature range [°C] [max] |
150 °C |
| Medium temperature range [°C] [min] |
-40 °C |
| Medium temperature range [°F] [max] |
302 °F |
| Medium temperature range [°F] [min] |
-40 °F |
| Packing format |
Multi pack |
| Pressure connection length[in] |
1.69 in |
| Pressure connection length[mm] |
43 mm |
| Pressure connection notes |
Deflator |
| Pressure connection size |
1/4 in |
| Pressure connection type |
Flare |
| Pressure Male/Female |
Female |
| Pressure range category |
High pressure |
| Product group |
Switches and thermostats |
| Product Name Description |
Pressure switch |
| Quantity per packing format |
25 pc |
| Refrigerants |
R744 |
| Reset function |
Auto |
| Specification key |
CKB-2UCBA4011 |
| Type |
CKB |
