Danfoss

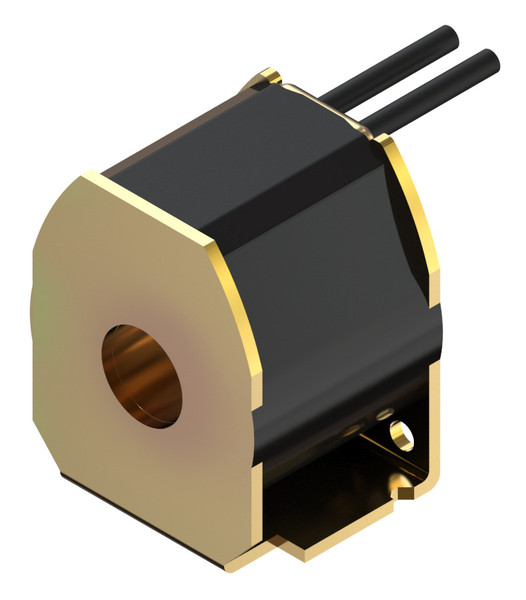

Danfoss 061L2016 4-way reversing valve coil, STF-01AJ504F1

27.00€

Current Stock:

Quantity:

Supply voltage [V] AC: 208 - 240, Frequency [Hz]: 50 Hz, Enclosure rating IP: IP54

Gross weight	0.148 Kilogram
Net weight	0.126 Kilogram

Volume	0.15 Liter
EAN	5702428272933

Ambient temperature range [°C] [max]	55 °C
Ambient temperature range [°C] [min]	-20 °C
Ambient temperature range [°F] [max]	131 °F
Ambient temperature range [°F] [min]	-4 °F
Approval	CE UKCA VDE
Cable length [in]	47.2 in
Cable length [m]	1.2 m
CE evaluated	Yes
China RoHS compliance	Out of scope
Class of Insulation	B
Coil mount, recom. torque [Nm] [max]	1.96 nm
Coil mount, recom. torque [Nm] [min]	1.47 nm
Contain batteries	No
Enclosure rating IP	IP54

EU RoHS compliance	Out of scope
Frequency [Hz]	50 Hz
Packing format	Industrial pack
Power consumption [W]	6 W
Product group	4-way reversing valves
Product Name Description	4-way reversing valve coil
Quantity per packing format	100 pc
REACH Candidate List substances	No
Supply voltage [V] AC [max]	240 V
Supply voltage [V] AC [min]	208 V
Type	STF
Type designation	STF-01AJ504F1
UK RoHS compliance	Out of scope
