| Gross weight | 0.051 Kilogram |
| Net weight | 0.05 Kilogram |
| Volume | 0.105 Liter |
| EAN | 5702428274739 |
| Gross weight | 0.051 Kilogram |
| Net weight | 0.05 Kilogram |
| Volume | 0.105 Liter |
| EAN | 5702428274739 |
| + output | Pin 2 |
| + supply | Pin 1 |
| - common | Pin 3 |
| Accuracy, max. [±FS%] | 2 % |
| Ambient temperature range [°C] [max] | 100 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Contain batteries | No |
| EEE category |
5 small equipment (any external dimension |
| Electrical conn. Male/Female | Male |
| Electrical connection | Round Packard Metri-Pack |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Identical product | 061H5146 |
| In scope of WEEE | Yes |
| Medium temperature range [°C] [max] | 135 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 38.5 bar |
| Packing format | Industrial pack |
| Pressure connection HEX [mm] | 14 mm |
| Pressure connection notes | With Schrader Depressor |
| Pressure connection size | 7/16-20 |
| Pressure connection standard | ASME B1.1 |
| Pressure connection type | UNF |
| Pressure Male/Female | Female |
| Pressure range [bar] [max] | 35 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |

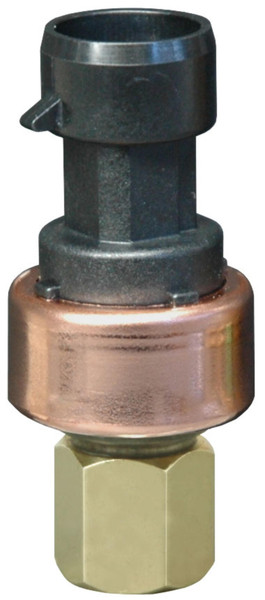

| Product Name Description | Pressure transmitter |
| Quantity per packing format | 100 pc |
| Ratiometric [V] [max] | 4.5 V |
| Ratiometric [V] [min] | 0.5 V |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) Trixylyl phosphate (CAS no. 25155-23-1) |
| Refrigerants |
R1234yf R1234ze(E) R134a R32 R404A R407C R407H R410A R449B R450A R452B R454A R454B R454C R455A R513A |
| SCIP dossier no. | 853a606c-7ffe-448f-b453-0d129ce19597 |
| SCIP dossier product name | NSK Series |
| Specification key | NSK-BE035I-U009 |
| Supply voltage [V] DC | 5 V |
| Supply voltage [V] DC | 5 V |
| Type | NSK |
| UK RoHS compliance | Out of scope |
| + output | Pin 2 |
| + supply | Pin 1 |
| - common | Pin 3 |
| Accuracy, max. [±FS%] | 2 % |
| Ambient temperature range [°C] [max] | 100 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Contain batteries | No |
| EEE category |
5 small equipment (any external dimension |
| Electrical conn. Male/Female | Male |
| Electrical connection | Round Packard Metri-Pack |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Identical product | 061H5146 |
| In scope of WEEE | Yes |
| Medium temperature range [°C] [max] | 135 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 38.5 bar |
| Packing format | Industrial pack |
| Pressure connection HEX [mm] | 14 mm |
| Pressure connection notes | With Schrader Depressor |
| Pressure connection size | 7/16-20 |
| Pressure connection standard | ASME B1.1 |
| Pressure connection type | UNF |
| Pressure Male/Female | Female |
| Pressure range [bar] [max] | 35 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Quantity per packing format | 100 pc |
| Ratiometric [V] [max] | 4.5 V |
| Ratiometric [V] [min] | 0.5 V |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) Trixylyl phosphate (CAS no. 25155-23-1) |
| Refrigerants |
R1234yf R1234ze(E) R134a R32 R404A R407C R407H R410A R449B R450A R452B R454A R454B R454C R455A R513A |
| SCIP dossier no. | 853a606c-7ffe-448f-b453-0d129ce19597 |
| SCIP dossier product name | NSK Series |
| Specification key | NSK-BE035I-U009 |
| Supply voltage [V] DC | 5 V |
| Supply voltage [V] DC | 5 V |
| Type | NSK |
| UK RoHS compliance | Out of scope |
